Andre Stainless is a top producer and distributor of Stainless Steel Chequered Plates in Pulau Ujong, Singapore. These plates have a unique, raised pattern to provide greater grip and lesser slippage, making them best suited for flooring, platforms, and walkways. Made from top–grade stainless steel grades such as 304, 316, or 201, these plates are characterized by corrosion resistance, mechanical strength, and attractive appearance. Andre Stainless provides chequered plates of different thicknesses, sizes, and patterns to fulfill safety and structural necessities in industrial, commercial, and marine environments. Customization and quick delivery are among their value-added services.
Depending on the grade employed, stainless steel chequered plates normally consist of 16–18% chromium and 8–10% nickel (304) or 16–18% chromium and 2–3% molybdenum (316). The alloys ensure superior corrosion resistance, particularly in wet or chemically exposed conditions. Mechanical properties are tensile strengths of up to 600–700 MPa, yield strength of 200–300 MPa, and satisfactory elongation (40–50%). The elevated pattern provides mechanical grip with little reduction in strength. The plates maintain their shape and strength under traffic and load-carrying uses and can be welded, cut, and fabricated.
ASTM A182 / ASME SA182
ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
1000mm x 2000mm, 1000mm x 2500mm, 1220mm x 2440mm, 1250mm x 2500mm, 1500mm x 3000mm
| Grade | C | Mn | P | S | Si | Cr | N | Ni | Fe |
| SS Chequered 304 Plates | 0.07max | 2.0max | 0.045max | 0.03max | 0.75max | min: 18.0 max: 20.0 | – | min: 8.0 max: 10.5 | – |
| SS Chequered 304L Sheets | 0.03max | 2.0max | 0.045max | 0.03max | 0.75max | min: 18.0 max: 20.0 | 0.10 max | min: 8.0 max: 12.0 | – |
| SS Chequered 304H Plate | min: 18.0 max:20.0 | min: 8.0 max: 10.5 | 0.75 max | 2.0 max | min: 0.04 max:0.10 | 0.045 max | 0.10 max | 0.03 max | – |
| SS Checkered 316 Sheets | Min | – | – | 0 | – | – | 10.0 | 16.0 | – |
|---|---|---|---|---|---|---|---|---|---|
| Max | 0.08 | 0.75 | 0.045 | 2.0 | 0.03 | 14.0 | 18.0 | 0.10 | |
| SS Checker 316L Plates | Min | – | – | – | – | – | 10.0 | 16.0 | – |
| Max | 0.03 | 0.75 | 0.045 | 2.0 | 0.03 | 14.0 | 18.0 | 0.10 | |
| SS Chequered 316H Sheet | Min | 0.04 | 0 | – | 0.04 | – | 10.0 | 16.0 | – |
| max | 0.10 | 0.75 | 0.045 | 0.10 | 0.03 | 14.0 | 18.0 | – |
| Grade | Density | Yield Strength (0.2%Offset) | Tensile Strength | Melting Point | Elongation |
| Stainless Steel 304 / 304L Checkered Plate | 8.0 g/cm3 | Psi 30000, MPa 205 | Psi 75000, MPa 515 | 1400 °C (2550 °F) | 35 % |
| Stainless Steel 304H Checkered Sheet | 8.0 g/cm3 | Psi 30000 , MPa 205 | Psi 75000 , MPa 515 | 1400 °C (2550 °F) | 40 % |
| Stainless Steel 310 Checker Plate | 7.9 g/cm3 | Psi 30000 , MPa 205 | Psi 75000 , MPa 515 | 1402 °C (2555 °F) | 40 % |
| Stainless Steel 316 Checkered Sheet | 8.0 g/cm3 | Psi 30000 , MPa 205 | Psi 75000 , MPa 515 | 1400 °C (2550 °F) | 35 % |
| Stainless Steel 316L Checker Plate | 8.0 g/cm3 | Psi 30000 , MPa 205 | Psi 75000 , MPa 515 | 1399 °C (2550 °F) | 35 % |
| Stainless Steel 317 Checker Sheets | 7.9 g/cm3 | Psi 30000, MPa 205 | Psi 75000, MPa 515 | 1400 °C (2550 °F) | 35 % |
| Stainless Steel 321 Checkered Plates | 8.0 g/cm3 | Psi 30000, MPa 205 | Psi 75000, MPa 515 | 1457 °C (2650 °F) | 35 % |
| Stainless Steel 347 Checker Sheets | 8.0 g/cm3 | Psi 30000 , MPa 205 | Psi 75000 , MPa 515 | 1454 °C (2650 °F) | 35 % |
| Stainless Steel 904L Checker Plate | 7.95 g/cm3 | Psi 32000, MPa 220 | Psi 71000, MPa 490 | 1350 °C (2460 °F) | 35 % |
Contact us to get a quick quote for your requirement.
304 stainless steel checker plates are durable, non-corrosive, and offer a slip-resistant surface. Ideal for industrial and commercial use, they combine strength with a lightweight, aesthetically pleasing design.
SS S30409 checker plates are high-quality stainless steel with excellent corrosion resistance and durability. Ideal for demanding environments, they offer a slip-resistant surface and maintain structural integrity under stress.

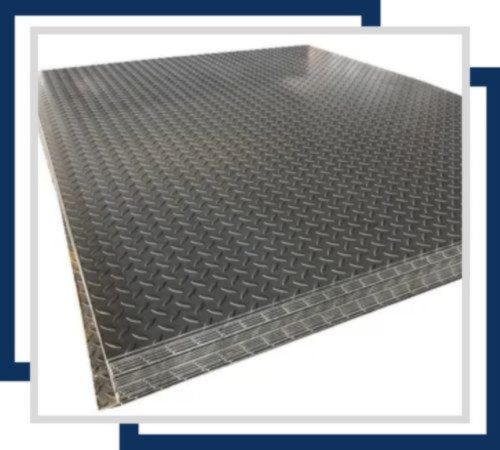

Stainless Steel S31609 chequered plates provide superior corrosion resistance and strength, making them ideal for marine and chemical environments. They offer excellent durability, slip resistance, and maintain integrity under harsh conditions.
Austenitic stainless steel chequered plates offer exceptional corrosion resistance, strength, and durability. Ideal for demanding environments, they provide a slip-resistant surface and maintain structural integrity in various industrial and commercial applications.
Quality is our prime concern, and hence our Stainless Steel Chequered Plates undergo exhaustive checks, like hardness, chemical analysis, PMI testing, flattening, micro/macro testing, pitting resistance, flaring, and IGC testing. We also supply related documentation as commercial invoices, packing lists, certificates of origin, and guarantee letters. In addition, we have our Third-Party Inspection Certificate to prove overall customer satisfaction to reassure customers of the guaranteed reliability and performance of our products.
Yes, Stainless Steel Chequered Plates are suitable for hygienic and sanitary applications due to their corrosion resistance, ease of cleaning, and non-porous surface, making them ideal for food and medical industries.
Stainless Steel Chequered Plates are generally resistant to galvanic corrosion when used in appropriate environments. However, in the presence of dissimilar metals and moisture, galvanic corrosion can occur if proper precautions aren’t taken.
Yes, Stainless Steel Chequered Plates are suitable for cryogenic applications due to their excellent low-temperature strength, durability, and resistance to brittle fracture, making them ideal for extreme environments.
To select the right Stainless Steel Chequered Plate, consider factors such as corrosion resistance, load-bearing capacity, surface finish, thickness, and environmental conditions, ensuring compatibility with your specific application needs.
Stainless steel chequered plates are widely utilized for slip-resistant industrial plant flooring, commercial kitchen flooring, truck beds, stairways, and loading ramps. Their textured pattern improves wet or oily environment safety, so they are best suited for offshore platforms, ship decks, and chemical process units. They are employed in architectural applications in decorative wall panels, elevator interiors, and public walkways. The plates also find application in food processing plants and cold storage rooms due to hygiene and cleanability. Andre Stainless provides special cuts and surface finishes, so their chequered plates can be used for both functional as well as aesthetic applications.
