Andre Stainless is a trusted manufacturer and supplier of **Stainless Steel 316/316L Channels** based in Pulau Ujong, Singapore. They specialize in providing corrosion-resistant and high-strength structural solutions tailored for a range of industrial and architectural needs. These channels are made from top-quality 316 and 316L stainless steel grades, which offer exceptional resistance to harsh environments, including those rich in chlorides and acids. With a strong focus on quality and customization, Andre Stainless caters to various sectors such as marine construction, chemical processing, food and beverage production, and infrastructure. Their 316/316L stainless steel channels come in multiple sizes and finishes, ensuring they perform optimally and last long, even in tough conditions.
Typically, the Stainless Steel 316/316L Channels produced by Andre Stainless contain 16–18% Chromium, 10–14% Nickel, and 2–3% Molybdenum. The 316L grade features a lower carbon content (maximum 0.03%) compared to 316, which enhances its weldability and reduces the risk of carbide precipitation. These channels boast impressive mechanical properties, with a tensile strength reaching up to 515 MPa, a yield strength of 205 MPa, and outstanding ductility and toughness. Their corrosion resistance is particularly remarkable in marine and acidic settings, thanks to the molybdenum content.
| Standard | ASTM A276, ASTM A479 / ASME SA276, ASME SA479 |
| Condition | HRAP |
| Size Range | Base: 80 to 150 mm Side: 40 to 75 mm |
| Thickness | 5 to 6 mm (depending on size) |
| Grades | 304, 316 |
| Processing | Bar cutting |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni |
|---|---|---|---|---|---|---|---|---|
| SS 304 | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 – 20 | – | 8 – 11 |
| SS 304L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.03 max | 18 – 20 | – | 8 – 13 |
| SS 316 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 11.00 – 14.00 |
| SS 316L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 1.0 max | 16.00 – 18.00 | 16.00 – 18.00 | 10.00 – 14.00 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.

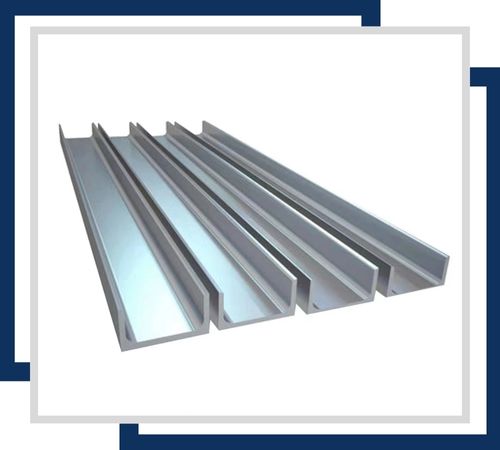

Stainless Steel 316/316L channels are structural elements made from corrosion-resistant stainless steel. They provide high strength and durability, ideal for marine, chemical, and high-temperature applications.

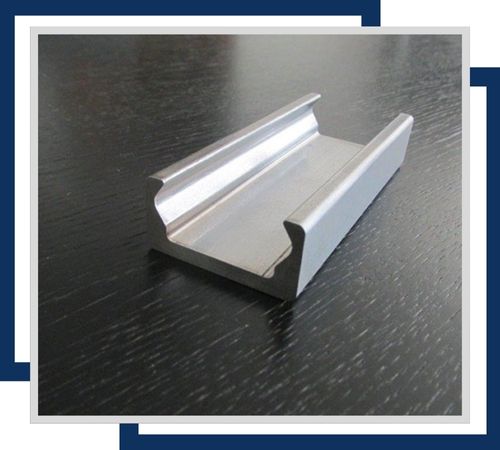

SS 316/316L C channels are stainless steel sections shaped like a “C,” offering high strength and superior corrosion resistance. They are used for support and framing in demanding environments.
Stainless Steel 316/316L U channels are structural components with a “U” shape, known for excellent strength and corrosion resistance. They are used in marine, chemical, and high-temperature environments for support and reinforcement.

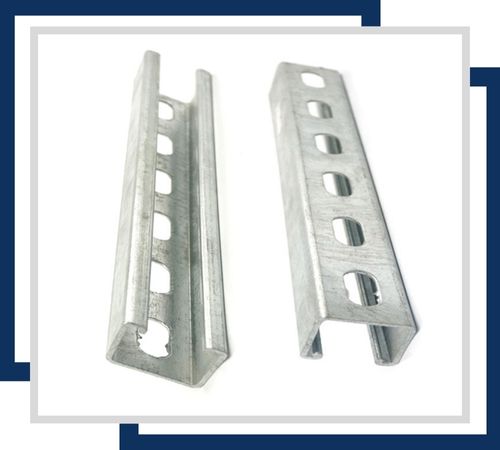

SS 316/316L strut C channels are stainless steel sections with a “C” shape, designed for robust support and framing. They offer high strength, durability, and excellent corrosion resistance for industrial applications.

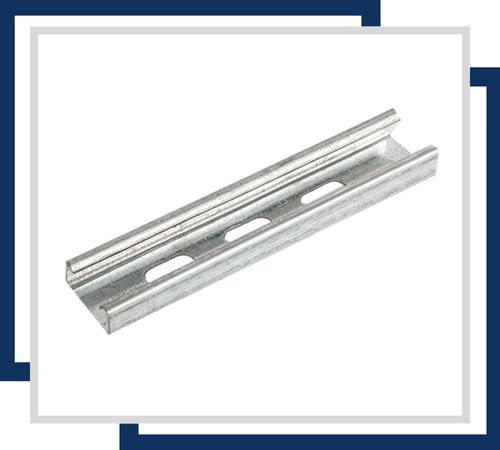

SS 316/316L cold-rolled Unistrut channels are stainless steel channels produced through cold rolling. They offer high strength, excellent corrosion resistance, and are used for versatile support and framing in demanding environments.

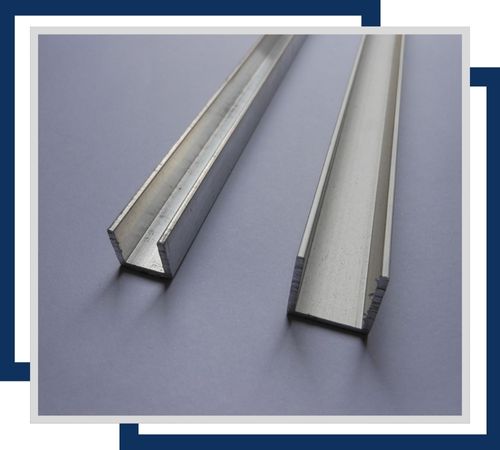

SS 316/316L double C type channels are stainless steel sections with two “C” shapes back-to-back. They provide enhanced strength and stability, suitable for heavy-duty support and structural applications in harsh environments.
Each Stainless Steel 316/316L Channel is carefully packed with the use of best materials for its prevention from undergoing damages upon corrosion whether in processing or during shipping to its destination. Packing the materials as such, we always see to it that our orders reach our customers in the best possible and timely way due to available transport systems and modes. Requisite accompanying documentation all highest will be handed over to customers as soon as delivery is accomplished to make the deal seem smooth and transparent.
The Stainless Steel 316/316L Channels from Andre Stainless are commonly utilized in structural framing, support systems, cable trays, architectural facades, and equipment enclosures. Their excellent resistance to corrosion makes them perfect for offshore platforms, coastal structures, sewage treatment plants, and cleanroom construction. The lower carbon variant (316L) is especially favored for welded assemblies and sanitary environments, such as those found in pharmaceutical and food processing facilities. These channels are highly regarded for their durability, ease of fabrication, and ability to maintain structural integrity in both high-temperature and corrosive conditions.
