Andre Stainless is a reputable manufacturer and supplier located in Singapore, specifically on Pulau Ujong. They’ve built a solid reputation for providing top-notch stainless steel solutions, including Stainless Steel 310 Fasteners. Serving various industries in Dubai, UAE, the company prides itself on delivering products that boast superior quality and precision. With a keen emphasis on durability and the ability to withstand extreme conditions, Andre Stainless offers tailored fasteners that adhere to international standards. Their dedication to innovation and prompt delivery has made them a go-to partner in the construction, petrochemical, and marine sectors throughout the Middle East and beyond, nurturing long-lasting relationships with clients through outstanding service and product excellence.
Stainless Steel 310 Fasteners are crafted with a high content of chromium (25%) and nickel (20%), which gives them remarkable resistance to oxidation and corrosion, even at elevated temperatures. These fasteners showcase impressive mechanical properties, featuring a tensile strength of 515 MPa, yield strength of 205 MPa, and a good elongation of up to 40%. Their strong thermal stability and resistance to sulfidation make them perfect for high-temperature applications. Additionally, Stainless Steel 310 retains its strength and hardness even in cryogenic conditions, ensuring dependable performance in challenging environments like heat treatment, furnace operations, and the chemical processing industry.
| Specifications | ASTM F593, F594, F1554 / ASME SF593, F594, F1554 |
|---|---|
| Fasteners size | Bolt / Screw Size : M3 – M56 | 3/6″ to 2″ | Custom Sizes Nuts Size : M3 – M56 | 3/6″ to 2″ | Custom Sizes Washers Size : M3 – M56 | 3/6″ to 2″ | Custom Sizes Machine Screws Size : M1.6 – M12 Self Tapping Screw Size : No.2 – No. 14 |
| Fasteners Length | 3 mm to 200 mm |
| Fastener Threads | UNF, BSW, BSF, METRIC, UNC or as required |
| Standard of Stainless Steel Fasteners | DIN : DIN 934, DIN 931, DIN 970, DIN 933 UTS : UNEF, NPT, UNC, UNS, UNF, NPTF ISO : JIS standards, ISO 4033, ISO 4032, ANSI – American National Standards Institute ASME B18.5 ANSI B 28.2.4 1M as per defined in ASME B16.5 standard SS Stud Bolt length ANSI B 18.2.4 2M as per defined in ASME B18.2.2 SS Hex nuts |
| Dimensions | DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3 |
| Surface Coating | Ptfe Coated Stainless Steel Fasteners Phosphate Coating Teflon Coating Zinc Coating Hot Dipped Galvanizing Coating Cadmium Coating Xylon Coating |
| Fasteners Finishing | Stainless steel : Self-Colour, Passivated, Bright Zinc Plated (BZP), Hot Dip Galvanised (HDG), Stainless Steel, Sherardized, some special one like DACROMET Geometry and Mechanically Applied coating ,Dacroment, nickel plated, anodizing, plated zinc-nickel Zinc (blue, black, yellow, white), black oxide. |
|
Grade |
C |
Mn |
Si |
P |
S |
Cr |
Mo |
Ni |
N |
|
SS 310 |
0.015 max |
2.0 max |
0.15 max |
0.020 max |
0.015 max |
24.00 – 26.00 |
0.10 max |
19.00 – 21.00 |
54.7 min |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 310 | 515 | 205 | 40 | 95 | 217 |
Contact us to get a quick quote for your requirement.

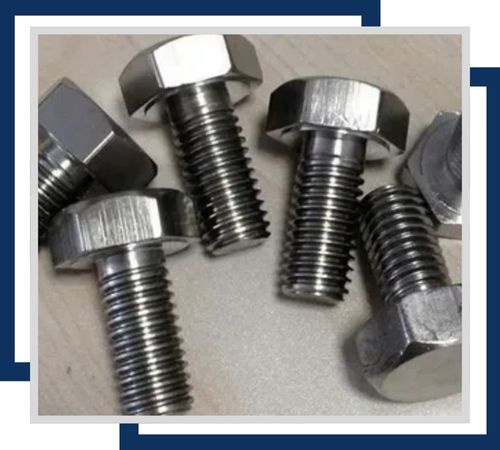

Stainless Steel 310 Bolts offer excellent corrosion resistance in high-temperature environments. Available in various sizes from M3 to M30 and lengths from 10mm to 300mm, they are ideal for structural and high-heat applications.

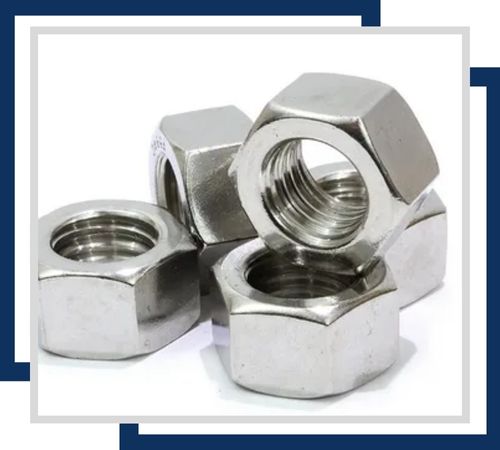

Stainless Steel 310 Nuts provide superior corrosion resistance and high-temperature stability. They come in sizes ranging from M3 to M30, with standard hex dimensions ensuring compatibility with bolts and screws in demanding environments.

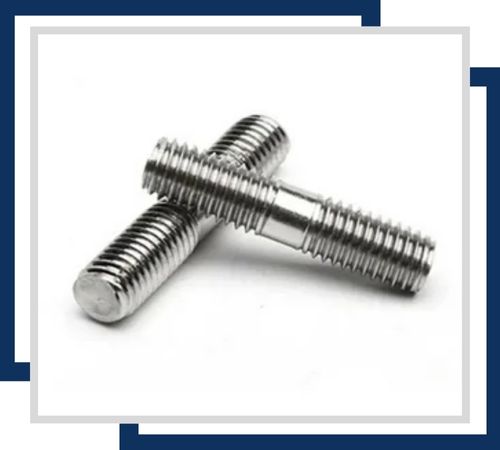

Stainless Steel 310 Stud Bolts are known for their exceptional resistance to oxidation and corrosion at elevated temperatures. Typically available in sizes from M6 to M36 and lengths from 20mm to 300mm, they are used in heavy-duty applications.

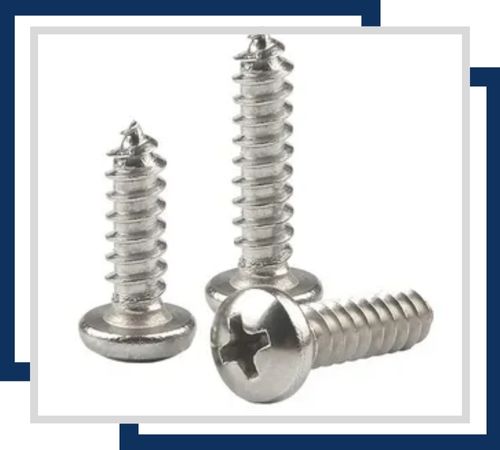

Stainless Steel 310 screws offer outstanding resistance to corrosion and heat. They are available in sizes from M3 to M20 and lengths ranging from 10mm to 200mm, suitable for use in high-temperature and corrosive environments.

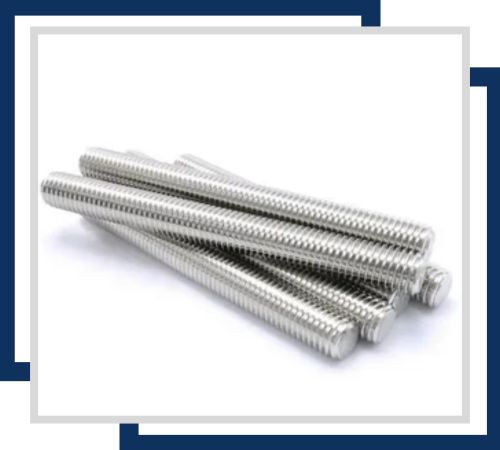

Stainless Steel 310 threaded rods provide excellent durability and resistance to high temperatures and corrosion. They are available in diameters from M6 to M36 and lengths up to 3000mm, making them versatile for various industrial applications.

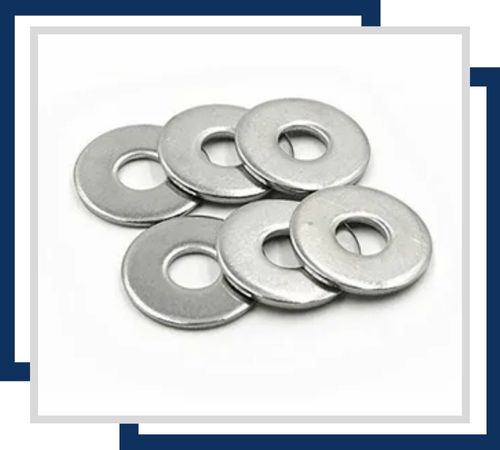

Stainless Steel 310 washers offer superior corrosion and heat resistance, ensuring long-term performance. Sizes range from M3 to M30, with thicknesses typically between 0.5mm and 10mm, suitable for providing stability and load distribution in harsh environments.
We are proud to present a world-class range of SS 310 Fasteners designed to satisfy specific customer size requirements. From the very first step, our commitment to quality is further demonstrated by rigorous end-product testing to industry standards. End-product testing includes 100% radiography, strength tests, macro/micro tests, material analysis, third-party inspections, intergranular corrosion tests, chemical analyses, and positive material identification (PMI). In this way, we assure that our fasteners will be up to the mark in terms of long life, performance, and complete conformity with all industry requirements.
These Stainless Steel 310 Fasteners are extensively used in scenarios that demand high-temperature strength and corrosion resistance. They find common application in the oil and gas sector, power plants, and chemical processing due to their ability to endure thermal cycling and tough operating conditions. These fasteners are particularly well-suited for furnace components, heat exchangers, and kilns. In the marine and construction industries, they offer long-lasting durability against saltwater and acidic environments. Their reliability and resistance to oxidation also make them ideal for cryogenic equipment, food processing machinery, and petrochemical systems that operate in extreme conditions.
