Andre Stainless is a renowned manufacturer and supplier of Stainless Steel Ball Valves in Pulau Ujong, Singapore, providing strong and resistant corrosion flow control solutions. These are made of high-grade stainless steel like 304, 316, and 316L and come in two-piece, three-piece, and full-port configurations. Famous for easy operation and tight shutoff, these valves find applications in water treatment, oil & gas, food processing, and chemical applications. Andre Stainless provides precision-machined valves to ANSI, DIN, and ISO standards to meet performance and reliability requirements in numerous fluid handling situations.
The stainless steel ball valves are normally made of 304 or 316 stainless steel. Both 304 has ~18% chromium with 8% nickel, whereas 316 has 2–3% molybdenum added for enhanced corrosion protection. These materials provide tensile strengths of up to 580 MPa, yield strength of approximately 240 MPa, and superb resistance to crevice and pitting corrosion. Valves are pressure-rated (usually up to 1000 PSI) and function well at temperatures ranging from –20°C to well above 200°C. Valve body, ball, stem, and seals are designed for withstanding long-term performance under pressure and thermal stress.
| Size | 40 MM TO 300 MM |
|---|---|
| Temperature | -29°C — +180°C |
| Available Connection | BSP/ BSPT/ NPT/ Flanged/ Welded |
| Nominal Pressure | P10/PN16 |
| Suitable Medium | Water,Sewage,Seawater,Gas,Food,Oils,etc |
| Applications | Water, Oil, Gas, |
| Operation Temperature | -10°C~150°C |
| Material | C | Si | Mn | P | S | Cr | Ni | N |
|---|---|---|---|---|---|---|---|---|
| Stainless Steel | 0.080 max | 0.75 max | 2.00 max | 0.045 max | 0.030 max | 18.00-20.00 | 8.00-10.50 | 0.100 max |
| Material | Yield Strength | Tensile Strength | Elongation (%) | Reduction of Area (%) | Hardness Max | |
|---|---|---|---|---|---|---|
| Min (Mpa) | Min (Mpa) | Min | Min (50mm) | HB | HR B | |
| Stainless Steel | 170 | 458 | 30 | 50 | 201* | 92* |
Contact us to get a quick quote for your requirement.
The testing and certifications make sure that quality is maintained with the stainless steel ball valves from Andre Stainless. Each valve, therefore, gets quality checks based on pressure tests, leakage tests, and durability tests. Our certified valves ensure good performance, reliability, and safety in industrial use, which symbolizes our focus on excellence and customer satisfaction.
This valve features a one-piece design with flanged ends, available in sizes from 1/2″ to 12″. It offers exceptional corrosion resistance, making it ideal for various industrial applications requiring robust and reliable flow control.

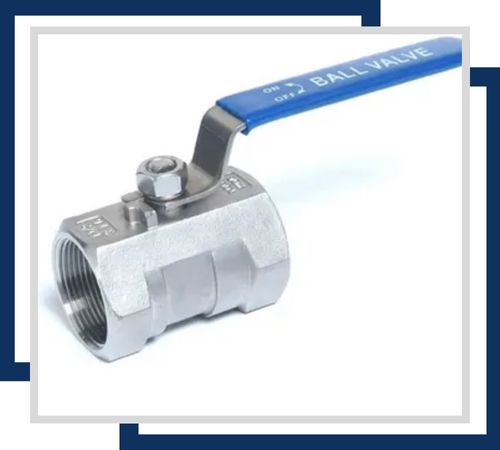

Featuring a one-piece design with screwed ends, this ball valve is available in sizes from 1/4″ to 4″. Its corrosion-resistant stainless steel construction ensures durability and reliability in a wide range of applications.

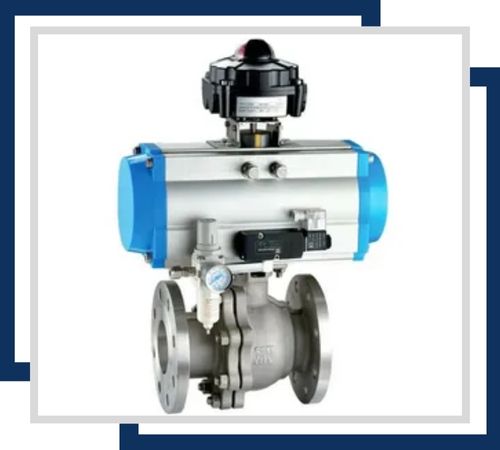

This ball valve comes with pneumatic actuation, providing automated flow control. Available in sizes from 1/2″ to 12″, it offers superior corrosion resistance and is perfect for automated systems in demanding environments.

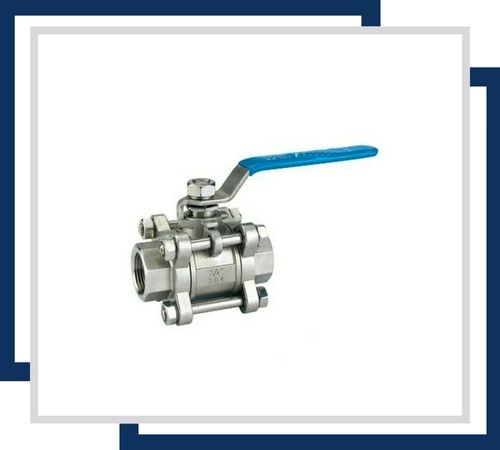

Designed with three-piece construction, this forged stainless steel ball valve is available in sizes from 1/2″ to 4″. Its high corrosion resistance and easy maintenance make it ideal for high-performance industrial applications.

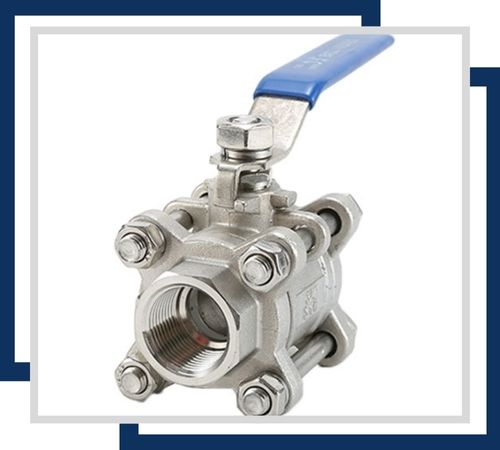

This valve features a three-piece design with an OD base, available in sizes from 1/2″ to 4″. Made from corrosion-resistant stainless steel, it provides reliable performance and easy maintenance in various industrial settings.

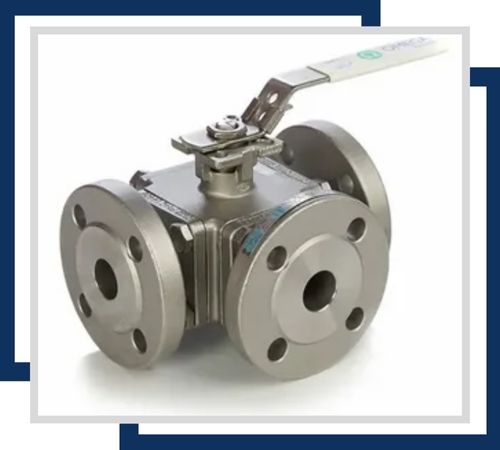

Featuring a three-piece design with flanged ends, this three-way ball valve is available in sizes from 1/2″ to 12″. Its corrosion-resistant construction allows for versatile flow control in complex piping systems, suitable for industrial applications.
Ball valves of stainless steel are popular in cases where shut-off and flow control with reliability is needed. Some applications include water distribution systems, chemical dosing systems, petrochemical processes, oil & gas transportation systems, marine systems, and food-grade systems. They are appropriate for both manual and automatic flow control owing to their small size and rapid quarter-turn action. Pharmaceutical and sanitary processes use hygienic-grade ball valves, which provide clean, non-reactive operation. Andre Stainless provides locking handle options, ISO mounting pads, and other types of connections (threaded, welded, flanged) to fit standard installations as well as customized pipe systems.
