Andre Stainless is a top manufacturer and supplier of Dairy Elbows and Bends in Pulau Ujong, Singapore. Our sanitary elbows are a must for controlling fluid flow in hygienic processing systems without trading off cleanliness or pressure integrity. Our elbows come in 45°, 90°, and 180° and are made of high-quality SS 304 and SS 316L stainless steel that meets 3A, ISO, and DIN standards. Andre Stainless guarantees accurate bending, smooth finishes, and superior flow characteristics for use in dairy, beverage, food, and pharmaceutical applications, where prevention of contamination and cleanability are paramount.
Dairy Elbows and Bends are fabricated using SS 304 or SS 316L with mechanical strength of between 485–620 MPa and good elongation properties. SS 316L includes molybdenum for enhanced corrosion resistance in chlorinated and acid environments. These are designed with tight radius control and seamless or welded construction to be pressure resistant and provide smooth flow. Smooth internal surface finish (usually ≤0.8 µm Ra) reduces fluid retention and accommodates CIP operations. They are also made to sustain flow velocity and system integrity against thermal cycling and high-frequency washdowns.
Sizes : 1/2”-4”, DN 10 – DN 100
Outside Diameter : 1/4” O.D. – 8” O.D., 1/4” N.B. – 8” N.B.
Thickness : 1.0 mm to 5 mm, 12 SWG, 14SWG, 16 SWG, 18SWG, 20 SWG
Finish : Mechanical Polish, Electro Polished, Non Electro Polished, 320 Grit, 400 Grit, 500 Grit, 800 Grit
Standards : DIN / TRICLOVER / IDF / SMS / BSP / NPT
Grade : SS 304, 304L, 316, 316L
Contact us to get a quick quote for your requirement.
This elbow fitting, made from SS 304L, is designed for dairy applications, ensuring durability and easy cleaning. It features sizes typically 1″ to 6″ and provides excellent corrosion resistance against acidic environments. Ideal for sanitary systems, it meets rigorous hygiene standards.

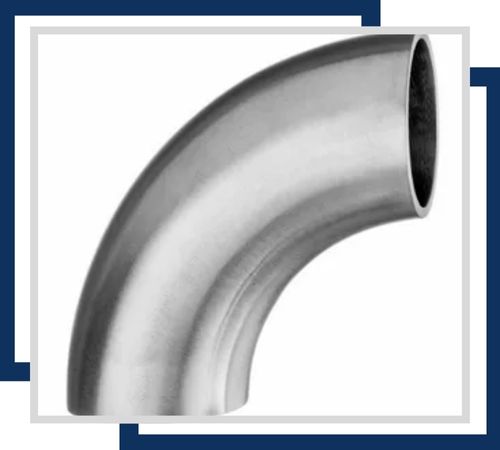

The SS 90 Degree Dairy Elbow offers a 90-degree bend, commonly available in sizes from 1″ to 4″. Made from stainless steel, it delivers superior corrosion resistance and maintains smooth flow in dairy pipelines. Its design ensures efficient transitions and minimal turbulence.

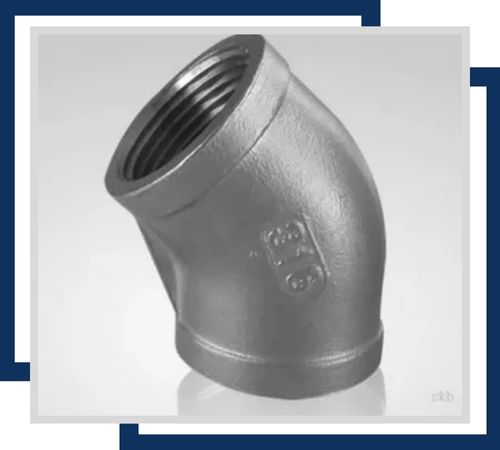

Constructed from stainless steel, the SS 45 Deg Dairy Elbow provides a 45-degree angle for smoother directional changes in dairy processing systems. Available from 1″ to 4″, it offers high corrosion resistance and is ideal for maintaining fluid integrity.
The SS 180 Degree Dairy Bend is a U-shaped fitting, available from 1″ to 6″. This bend is crafted from stainless steel, offering excellent corrosion resistance and durability. It ensures a complete reversal of flow direction with minimal disruption.

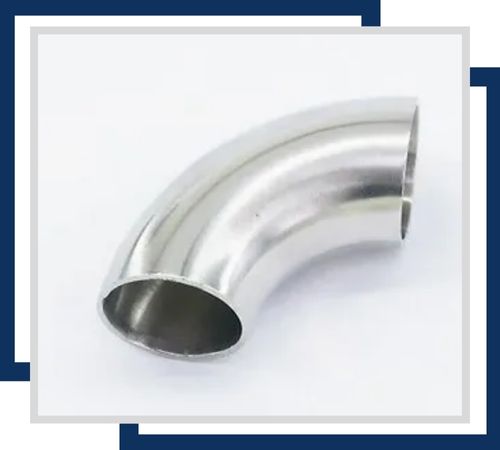

The Stainless Steel Dairy Bend Elbow is designed for seamless transitions in dairy applications and is available in sizes from 1″ to 4″. Made from high-quality stainless steel, it features outstanding corrosion resistance and is easy to clean, supporting high hygiene standards.

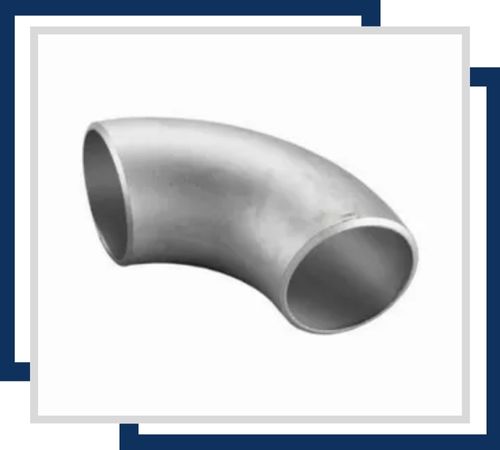

The SS 316L Dairy Elbow is crafted from 316L stainless steel, known for superior corrosion resistance in harsh environments. Typically available in sizes from 1″ to 6″, it offers excellent durability and is suitable for high-purity dairy processing systems.
Dairy Elbows and Bends are employed to alter the direction of fluid flow in hygienic dairy, brewery, soft drink plant, and pharmaceutical process plant piping systems. They are usually fitted in process lines, transfer points, and pump discharge connections to allow for compact system design. Dairy Elbows and Bends provide minimal turbulence, minimizing product degradation as well as microbial growth. Their corrosion resistance and sanitary finish make them perfectly suited for high-purity and cleanroom applications. Routing milk, whey, juice, or pharmaceutical ingredients, these bends provide hygienic performance, smooth flow, and ease of integration into modular sanitary systems.
