Andre Stainless is a reliable manufacturer and supplier of Stainless Steel 17-4 PH Flanges in Pulau Ujong, Singapore. Offering outstanding strength and corrosion resistance, these flanges are manufactured in alignment with international standards to meet compatibility and performance across demanding industries. Andre Stainless employs sophisticated forging methods, precision machining, and heat treatment processes to supply high-grade flanges utilized in piping systems, pressure vessels, and machinery. Committed to quality, on-time delivery, and customized solutions, the company caters to customers in the marine, petrochemical, power generation, and oil & gas industries across the region.
17-4 PH stainless steel is a precipitation-hardening martensitic alloy with about 15-17.5% chromium, 3-5% nickel, 3-5% copper, and traces of niobium. Upon heat treatment, it exhibits superior tensile strength of up to 1200 MPa, yield strength of around 1100 MPa, and hardness between HRC 40–45. It also has good ductility with around 8–10% elongation and high fatigue resistance. It has corrosion resistance equal to Type 304 stainless steel in most environments but has enough mechanical strength to provide weight savings of considerable amounts in structural applications.
| SS 17-4PH Flange Standard | ASTM A182 / ASME SA182 |
| SS 17-4 PH Flange Grade | SS 17-4PH / UNS S17400 / WERKSTOFF NR. 1.4542 |
| SS 17-4PH Flange Size Range | 1/2″ TO 48″ (15NB to 1200NB) Custom Sizes |
| SS 17-4 PH Flanges Class | Class 150, Class 900, Class 1200, Class 300, Class 600, Class 1500, Class 2500, / PN6, PN25, PN10, PN16, PN40, PN64, etc. |
| SS 17-4PH Flange Dimension | B16.48, B16.47 A & B, ASME/ANSI B16.5, BS4504, ASME Flanges, DIN Flanges, BS Flanges, ANSI Flanges, EN Flanges, BS 10, EN-1092, DIN, GOST Flange, ANSI/ASME B16.5, 16.47A, 16.47B, 16.36, MSS S44, API605, API7S-15, API7S-43, JISB2220, ISO70051, EN1092, BS1560-3.1, |
| SS 17-4 PH Flanges DIN | DIN 2576, DIN 2632, DIN 2637, DIN 2638, DIN 2636, DIN 2641, DIN 2527, DIN 2635, DIN 2655, DIN 2566, DIN 2629, DIN 2656, DIN 2573, DIN 2633, DIN 2642, DIN 2634, DIN 2631, DIN 2627, DIN 2673, DIN 2628 |
| Types of SS 17-4PH Flanges | Screwed (Threaded) Flanges, Spectacle Blind Flanges, Forged Flanges, Socket-weld Flanges (SWRF), Spacer & Blind Flanges, Ring Type Joint Flanges (RTJ), Plate Flanges, Slip-on Flanges (SORF), Blind Flanges (BLRF), Industrial Flanges, Flat Face Flanges, Raised Face (RF) Flanges, Custom Flanges, Orifice Flanges, Reducing Flanges, Large Diameter Flanges, Drawing Flanges, Lap Joint Flanges (SOLJ), Long weld neck Flanges (LWNRF), Weld neck Flanges (WNRF), etc. |
| Grade | Mn | Si | Cr | Ni | Fe | C | S | P | |
|---|---|---|---|---|---|---|---|---|---|
| 17-4 PH | min. | 1.0 | 1.0 | 15.0 | 3.0 | – | – | – | – |
| max. | 1.0 | 1.0 | 17.5 | 5.0 | 73 | 0.070 | 0.030 | 0.040 | |
| Properties | Metric | Imperial |
|---|---|---|
| Density | 7.75 g/cm3 | 0.280 lb/in3 |
Contact us to get a quick quote for your requirement.

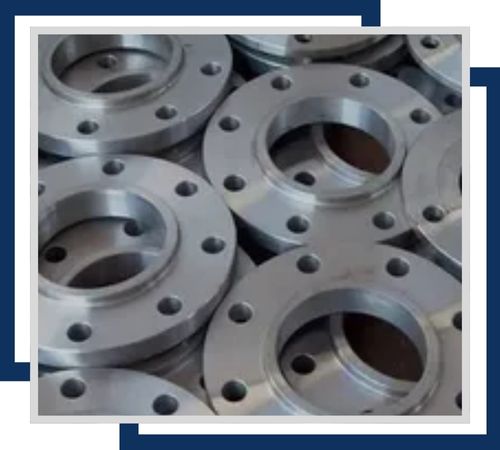

DIN 1.4542 British Standard 17-4 PH pipe flanges combine high strength and corrosion resistance, meeting rigorous performance standards. They ensure reliable, leak-proof connections for demanding industrial applications.

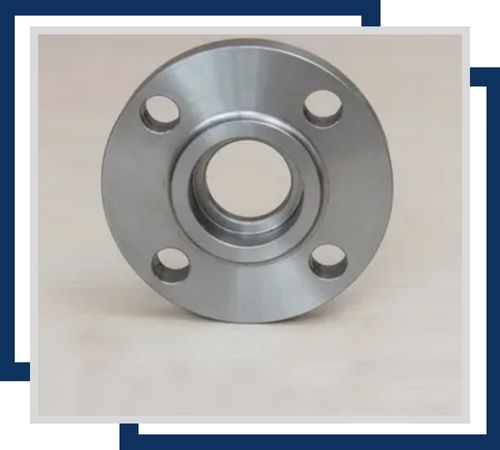

Steel 17-4 PH forging facing flanges provide exceptional durability and strength for high-pressure applications. Designed for critical environments, they offer reliable performance with superior corrosion resistance and precise alignment.

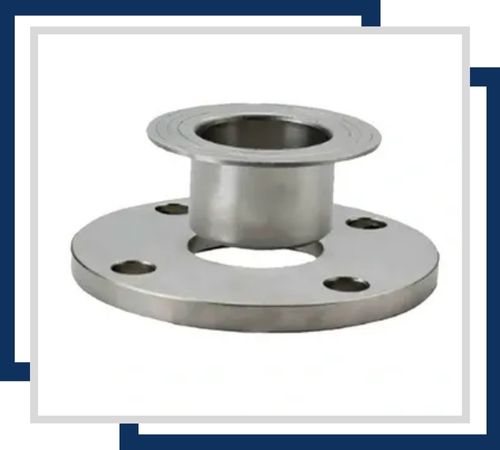

ASME B16.5 SS 17-4 PH raised face flanges deliver high strength and corrosion resistance for demanding applications. Their raised face design ensures a secure, leak-proof seal, meeting stringent industry standards.
After production every Stainless Steel 17-4 PH Flange is meticulously tested by our quality control team using advanced destructive and non-destructive techniques to verify its strength and reliability. To ensure safe transit the flanges are securely packed with premium materials. We are committed to delivering orders promptly and efficiently, ensuring a smooth experience for our customers. All required documents are included with the delivery to provide complete transparency and assurance.
17-4 PH flanges find extensive use in applications involving strong, corrosion-resistant pipe connections in industries. Some common uses are chemical processing facilities, offshore platforms, marine equipment, and power generation plants. Their tensile and yield strength are very high, and they are able to withstand high-pressure systems and severe stress points in pipelines. These flanges are durable in both aggressive and moderate conditions and are widely utilized in compressors, heat exchangers, and valve assemblies. Andre Stainless offers tailored solutions such as threaded, slip-on, weld neck, and blind flanges to fit varied industry needs and provide the reliability of operations in harsh conditions.
