Andre Stainless is a reputable manufacturer and supplier located in Singapore, specifically on Pulau Ujong, recognized for providing top-notch stainless steel solutions. The company specializes in Stainless Steel 304 Flanges and proudly caters to clients in Dubai, UAE, delivering precision-engineered products that adhere to international standards. With cutting-edge manufacturing capabilities and a strong commitment to excellence, Andre Stainless guarantees durability, corrosion resistance, and outstanding performance across a range of industrial applications. Their robust supply network and skilled workforce make them a trustworthy partner for customers in the Middle East who are in search of reliable and cost-effective stainless steel flange solutions.
Stainless Steel 304 flanges are primarily made up of chromium (18–20%) and nickel (8–10.5%), with iron making up the rest. This type of austenitic stainless steel also includes trace amounts of manganese, silicon, carbon, phosphorus, sulfur, and nitrogen. In terms of mechanical properties, they boast a tensile strength of about 515 MPa, a yield strength of 205 MPa, and an elongation of roughly 40%. Stainless Steel 304 flanges are known for their excellent corrosion resistance, ductility, and weldability, making them perfect for various structural and pressure-bearing applications, particularly in harsh environments like marine and chemical processing industries.
| Standard | ASTM A182 / ASME SA182 |
| Dimensions | ANSI/ASME B16.5, B 16.47 A & B, B16.48, BS4504, BS 10, EN-1092, DIN |
| Standard | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges |
| Size | 1/2″ (15 NB) to 48″ (1200NB) |
| Class/Pressure | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 |
| Flange Face Type | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 304 | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 – 20 | – | 8 – 11 | – |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.
Andre Stainless follows high-quality standards for its Stainless Steel 304 Flanges. Every flange is thoroughly tested for dimensional checks, visual inspections, and non-destructive testing such as ultrasonic and magnetic particle tests. In addition to that, the flanges are even submitted to mechanical testing in terms of tensile, hardness, and impact tests to confirm their strength and durability. All the products have the relevant certificates. They also carry material test reports (MTRs) and meet international standards. This will provide reliable performance in various industrial applications.

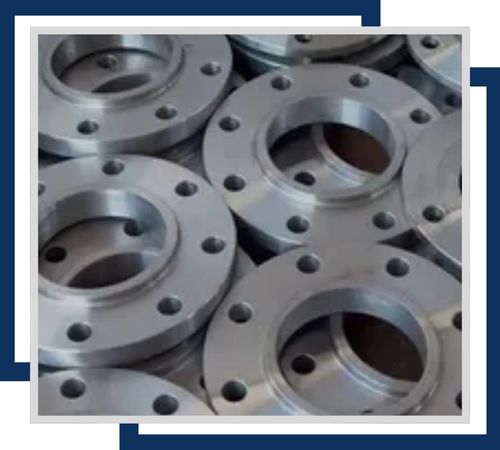

SS 304 long weld neck flanges are designed for high-stress applications, featuring a long tapered neck that provides a strong, continuous weld connection. They offer excellent strength and resistance to leakage.
SS 304 lap joint flanges are versatile components designed for ease of assembly and disassembly. They feature a loose fit, allowing for easy alignment and maintenance, with excellent resistance to corrosion.
SS 304 reducing flanges are used to connect pipes of different diameters, providing a smooth transition between sizes. They ensure a secure, leak-proof joint while offering strong corrosion resistance and durability.
The Stainless Steel 304 flanges produced by Andre Stainless are extensively utilized across many industries in Dubai, UAE, thanks to their strength, corrosion resistance, and versatility. They find common use in petrochemical plants, oil and gas pipelines, food processing facilities, pharmaceutical equipment, and marine engineering projects. These flanges provide reliable sealing, ease of maintenance, and adaptability in high-pressure settings. Their hygienic properties also make them suitable for sanitary applications. Whether in construction or industrial systems, Stainless Steel 304 flanges promise a long service life, operational safety, and compliance with strict international standards.
