Andre Stainless, a well-respected manufacturer and supplier located in Singapore, Pulau Ujong, has built a solid reputation for providing top-notch Stainless Steel 304H Flanges in Dubai, UAE. Known for their commitment to quality and precision, the company specializes in high-temperature resistant flanges that are perfect for demanding applications. By utilizing cutting-edge technology and rigorous quality control processes, Andre Stainless guarantees that all their products comply with international standards. Their Stainless Steel 304H Flanges are highly valued in the Dubai market for their durability, outstanding corrosion resistance, and long-lasting performance, making them a go-to choice for a variety of industrial and structural needs.
These flanges are primarily made up of chromium (18–20%), nickel (8–11%), and a carbon content exceeding 0.04%, which boosts their high-temperature strength. They boast a tensile strength of about 515 MPa, a yield strength of around 205 MPa, and an elongation of 40%. The higher carbon content enhances creep resistance, making them ideal for pressure vessels and heat exchangers. Additionally, they provide good oxidation resistance and maintain their structural integrity even in extreme conditions. Stainless Steel 304H Flanges are particularly suited for high-temperature applications due to their enhanced mechanical properties.
| Standard | ASTM A182 / ASME SA182 |
| Dimensions | ANSI/ASME B16.5, B 16.47 A & B, B16.48, BS4504, BS 10, EN-1092, DIN |
| Standard | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges |
| Size | 1/2″ (15 NB) to 48″ (1200NB) |
| Class/Pressure | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 |
| Flange Face Type | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 304H | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 – 20 | – | 8 – 11 | – |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.
We provide high-grade 301L stainless steel flanges, stringently tested for durability, strength, and resistance. Each one goes through thorough testing including chemical composition analysis, mechanical property analysis, and dimensional verification before we present these to the market with high quality performance. Appropriate certifications accompany every flange that will guarantee conformance with international standards. Flanges designed for efficiency and reliability meet any criterion set for applications in a variety of industries. With superior material quality and precise manufacturing, our 301L stainless steel flanges provide exceptional performance and durability in meeting different demanding requirements in various industries.

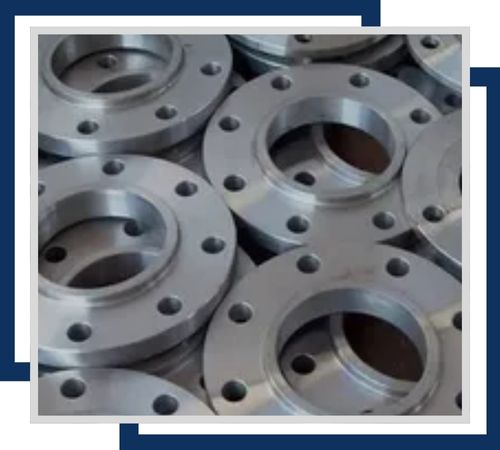

SS 304H long weld neck flanges are designed for high-stress applications, featuring a long tapered neck that provides a strong, continuous weld connection. They offer excellent strength and resistance to leakage.

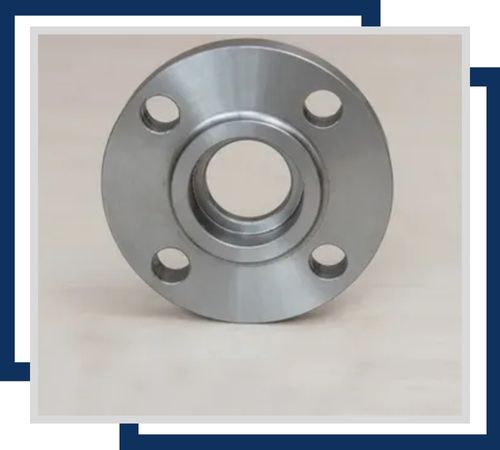

SS 304H lap joint flanges are versatile components designed for ease of assembly and disassembly. They feature a loose fit, allowing for easy alignment and maintenance, with excellent resistance to corrosion.
SS 304H reducing flanges are used to connect pipes of different diameters, providing a smooth transition between sizes. They ensure a secure, leak-proof joint while offering strong corrosion resistance and durability.
Manufactured by Andre Stainless in Dubai, UAE, these Stainless Steel 304H Flanges find extensive use in sectors like petrochemical, power generation, oil and gas, and heat treatment plants. They are essential for connecting pipes, valves, and pumps in systems that operate under high temperatures and pressures. In environments where thermal and corrosion resistance are critical, these flanges play a vital role. From heat exchangers and boilers to reactors and condensers, they ensure a secure and leak-proof connection, contributing to the reliability and safety of various industrial operations.
