Andre Stainless is a top-notch stainless steel manufacturer and supplier located in Singapore, Pulau Ujong, and is well-known for providing high-quality products around the globe. With a solid foothold in Dubai, UAE, Andre Stainless focuses on crafting Stainless Steel 321H Flanges, which are celebrated for their exceptional strength and durability. The company strictly follows international quality standards and offers tailored solutions to cater to various industrial requirements. By utilizing cutting-edge manufacturing techniques and a talented workforce, Andre Stainless guarantees timely deliveries and unmatched product reliability, making it the go-to choice for clients in search of Stainless Steel 321H Flanges in the UAE and beyond.
Stainless Steel 321H Flanges are made from titanium-stabilized austenitic stainless steel, featuring a higher carbon content that boosts high-temperature strength. This alloy typically contains chromium (17-19%), nickel (9-12%), and titanium (at least five times the carbon content), along with trace elements like manganese, silicon, and phosphorus. These flanges boast impressive mechanical properties, including a tensile strength of 515 MPa, yield strength of 205 MPa, and an elongation of 35%. They perform reliably in environments that demand resistance to oxidation and intergranular corrosion, especially at temperatures reaching up to 900°C, making them perfect for high-heat service conditions.
| Specifications | ASTM A182 / ASME SA182 |
| Size | 1/8″ NB TO 48″ NB |
| Standards | ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc. |
| Class / Pressure | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Standard | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc. |
| Grades | S31803 / S32205 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61 |
| Grade | C | Mn | Si | P | S | Cr | N | Ni | Ti | SS 321H | 0.04 – 0.10 | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 – 19.00 | 0.10 max | 9.00 – 12.00 | 4(C+N) – 0.70 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1457 °C (2650 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.
We offers the best quality Stainless Steel 321H Flanges Andre Stainless,which has undergone intense testing to produce top quality and performance. The flange is thoroughly tested for meeting international standards and specifications. Products supplied by us are certified by recognized authorities for traceability and reliability in each batch. With modern technology and strict quality control, we ensure durability, corrosion resistance, and good mechanical properties. Andre Stainless stands by the delivery of flanges with the highest level of industry standards in functionality and safety.

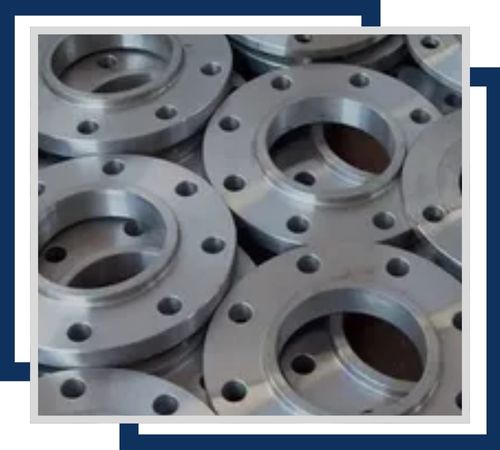

Stainless Steel 321H Threaded Flanges are available in sizes ranging from 1/2″ to 24″ and are designed for easy assembly without welding. They offer good resistance to oxidation and corrosion, making them suitable for various industrial applications.

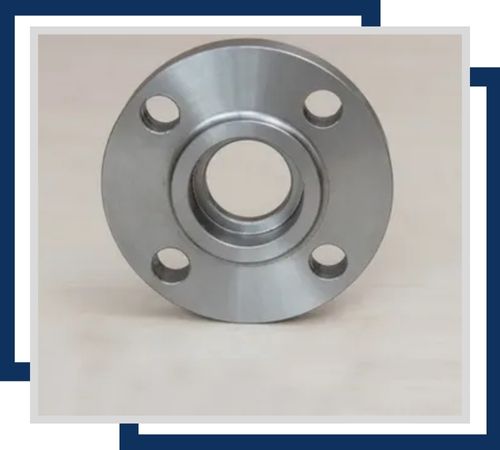

SS 321H Socket Weld Flanges, ranging from 1/2″ to 24″ in size, are designed to fit inside a pipe for strong, reliable connections. They provide excellent resistance to high-temperature environments and corrosive substances.

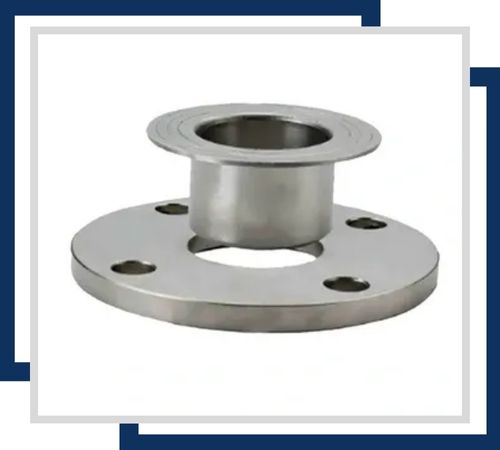

Stainless Steel 321H Lap Joint Flanges are available in sizes from 1/2″ to 24″ and are used with a backing flange to allow for easy alignment and assembly. They offer high resistance to oxidation and corrosive elements, ideal for applications with frequent disassembly.
Stainless Steel 321H Flanges are widely utilized in high-temperature and pressure applications due to their strong structural properties and corrosion resistance. They are particularly suited for petrochemical plants, power generation facilities, and oil and gas refineries, where heat and stress resistance are essential. Additionally, these flanges find their place in exhaust systems, heat exchangers, boilers, and furnace components. Their ability to endure thermal cycling and resist scaling makes them ideal for aircraft exhaust manifolds and industrial piping. The high carbon content ensures excellent creep resistance, enhancing their durability during prolonged exposure to elevated temperatures.
