Andre Stainless is a reputable manufacturer and supplier located in Singapore, specifically on Pulau Ujong. We’re well-known for providing top-notch Stainless Steel 316L Flanges to our clients in Dubai, UAE. With a strong focus on product quality and customer satisfaction, Andre Stainless offers flanges that are not only corrosion-resistant but also high-performing, making them perfect for demanding industries. Our 316L flanges are crafted using cutting-edge manufacturing techniques and meet global quality standards. Thanks to our skilled team and efficient logistics network, we guarantee timely deliveries and consistent quality. When it comes to reliable and durable stainless steel solutions tailored for industrial applications in the UAE and beyond, Andre Stainless is your go-to source.
Stainless Steel 316L Flanges are primarily made up of chromium (16–18%), nickel (10–14%), and molybdenum (2–3%), featuring low carbon content that boosts their weldability and resistance to corrosion. These flanges boast impressive mechanical properties, with a tensile strength of around 485 MPa, yield strength of 170 MPa, and an elongation of 35%. They maintain their strength and stability even in high temperatures and harsh corrosive environments, particularly in chloride-rich conditions. Known for their excellent formability, toughness, and resistance to pitting, 316L flanges are perfect for a variety of applications across different industries.
| Specifications | ASTM A182 / ASME SA182 |
| Size | 1/8″ NB TO 48″ NB |
| Standards | ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc. |
| Class / Pressure | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Standard | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc. |
| Grades | S31803 / S32205 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61 |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 316L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.89 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.
We offers the best quality Stainless Steel 316L Flanges Andre Stainless,which has undergone intense testing to produce top quality and performance. The flange is thoroughly tested for meeting international standards and specifications. Products supplied by us are certified by recognized authorities for traceability and reliability in each batch. With modern technology and strict quality control, we ensure durability, corrosion resistance, and good mechanical properties. Andre Stainless stands by the delivery of flanges with the highest level of industry standards in functionality and safety.

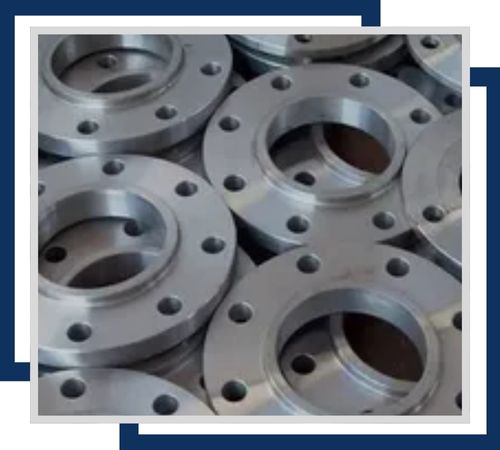

Stainless Steel 316L Threaded Flanges come in sizes from 1/2″ to 24″. Their corrosion resistance makes them ideal for low-pressure, non-welded applications. The threaded design allows for easy installation and removal without welding.
SS 316L Socket Weld Flanges are available in sizes from 1/2″ to 24″. They provide good corrosion resistance and are designed for small-diameter, high-pressure systems. The socket weld connection ensures a strong and secure joint.

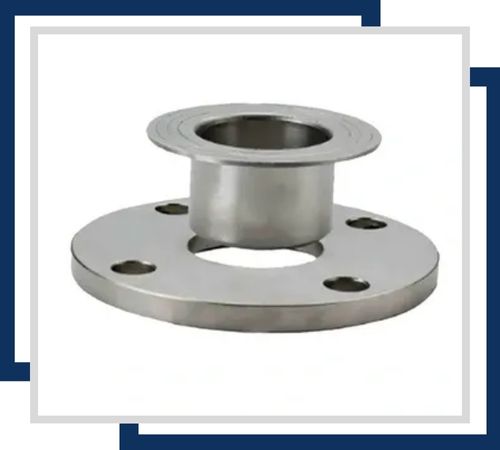

Stainless Steel 316L Lap Joint Flanges come in sizes from 1/2″ to 24″. They are highly corrosion-resistant and suitable for systems requiring frequent disassembly. The loose flange design allows for easy alignment and flexibility in installation.
You’ll find Stainless Steel 316L Flanges widely used in chemical processing, marine, pharmaceutical, and food industries, thanks to their outstanding resistance to corrosion and chemical attacks. In offshore and coastal settings, these flanges ensure reliable sealing and connections for pipelines that handle corrosive fluids. Their low carbon content makes them ideal for welded structures and components that are exposed to high temperatures and aggressive media. You can also commonly spot these flanges in heat exchangers, condensers, pressure vessels, and water treatment facilities, where hygiene, strength, and durability are absolutely essential.
