Andre Stainless is a trusted manufacturer and supplier of top-notch stainless steel products, including Stainless Steel 347 Tubing, located in Pulau Ujong, Singapore. Renowned for its expertise in metal fabrication and distribution, Andre Stainless provides corrosion-resistant and heat-stable tubing solutions that cater to a variety of industries. With a strong focus on quality assurance, technical precision, and timely delivery, the company serves sectors like petrochemical, aerospace, power generation, and marine. By blending advanced manufacturing techniques with a customer-centric approach, Andre Stainless ensures that its Stainless Steel 347 Tubing meets international standards and excels in demanding service environments.
Stainless Steel 347 Tubing is mainly made up of iron, chromium (17–20%), nickel (9–13%), and carbon (≤0.08%), with columbium (niobium) added to boost its resistance to intergranular corrosion. This alloy boasts impressive mechanical properties, featuring a tensile strength of about 515 MPa, a yield strength of around 205 MPa, and a minimum elongation of 40%. It retains its strength even at high temperatures, making it perfect for high-temperature applications. The tubing also exhibits good creep strength and stress rupture characteristics, ensuring exceptional durability in oxidizing environments, particularly in situations with frequent temperature fluctuations or extended heat exposure.
| Specifications | : | ASTM A/ASME SA249/A269/A270 |
| Dimensions | : | ASTM, ASME, and API |
| SS 304H Tubes Size | : | 1/8″NB TO 30″NB IN |
| Thickness | : | 1mm to 20mm, SCH 5/5S, 10/10S, 20/20S, 40/40S, 80/80S, 120/120S, 160/160S as per ANSI B36.19/36.10 |
| Finish | : | BA Finish inside and outside, Electropolished finish inside and outside |
| Type | : | Electropolished Pipes & Tubes |
| Form | : | Round, Square, Rectangular, Hydraulic Etc |
| Length | : | Up to 6 meters, custom cut lengths |
| Grade | C | Mn | Si | P | S | Cr | Cb | Ni | Fe |
| SS 347 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 – 20.00 | 10xC – 1.10 | 9.00 – 13.00 | 62.74 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1454 °C (2650 °F) | Psi – 75000, MPa – 515 | Psi – 30000, MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.
We sets high standards regarding quality for stainless steel 347 tubing through multiple testing and evaluation procedures. Inspections are extensive and include determination of chemical compositions, mechanical testing, and testing by non-destruction methods on every product. Shashank also offers full documentation in the form of Mill Test Certification.

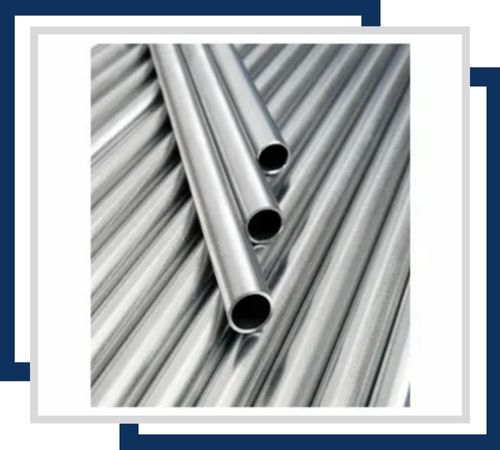

Offering excellent corrosion resistance, Stainless Steel 347 Seamless Tubing is known for its uniformity and strength. It typically comes in sizes ranging from 6mm to 350mm in diameter and lengths of up to 6 meters. Ideal for applications requiring high pressure and corrosive resistance.

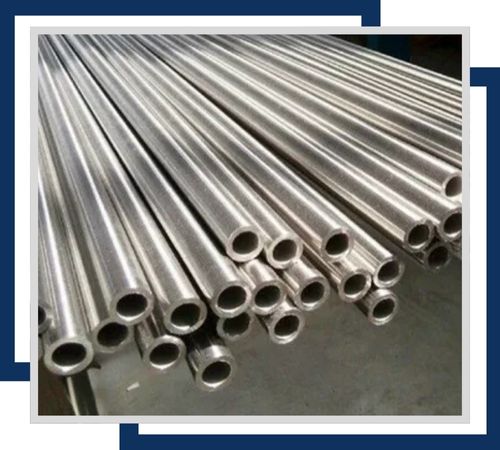

Stainless Steel 347 Welded Tubing provides superior resistance to chloride-induced stress corrosion cracking. Available in sizes from 10mm to 150mm in diameter and standard lengths of 6 meters. It is often used in industrial and chemical processing applications where weld strength is critical.
Featuring outstanding corrosion resistance, Stainless Steel 347 Heat Exchanger Tubes are used in demanding environments. Sizes typically range from 6mm to 50mm in diameter, with wall thickness varying from 1mm to 3mm. These tubes are designed for high temperature and pressure conditions.

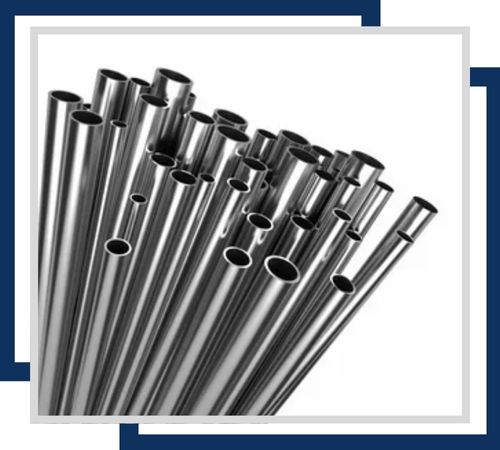

Stainless Steel 347 Instrumentation Tubing offers excellent resistance to corrosion and is ideal for precise measurement systems. Common sizes include 1/8″ to 1/2″ in diameter and lengths up to 6 meters. It is suitable for high-pressure applications and harsh environments.

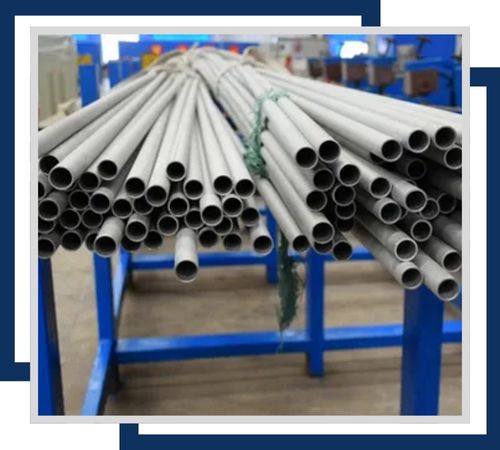

With superior resistance to both oxidation and corrosion, Stainless Steel 347 Boiler Tubes are used in high-pressure steam applications. Sizes typically range from 25mm to 100mm in diameter, with lengths of up to 6 meters. They are essential for maintaining efficiency in boiler systems.

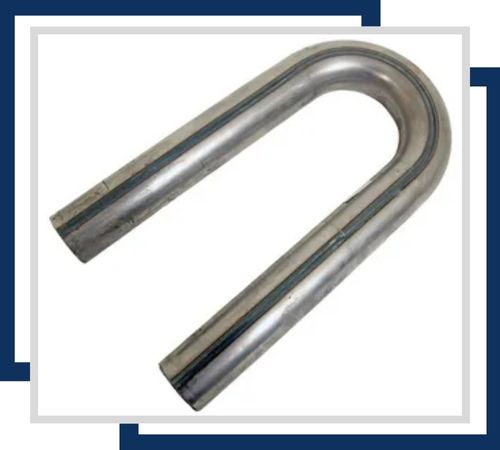

Stainless Steel 347 U-tubes provide excellent resistance to corrosive fluids and are commonly used in heat exchangers. Standard sizes range from 10mm to 100mm in diameter with various lengths. They are designed to handle thermal expansion and contraction in dynamic environments.

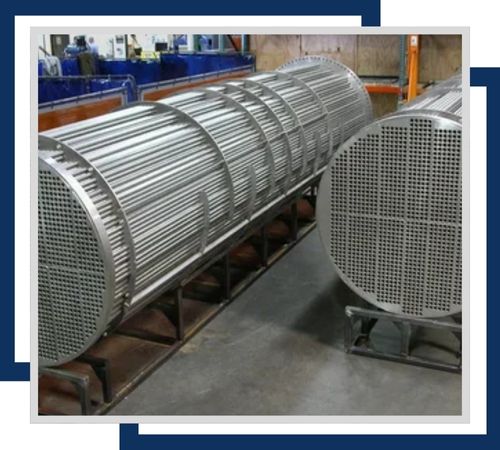

Stainless Steel 347 Condenser Tubes are used in marine and power generation applications, offering exceptional resistance to seawater and acidic environments. Sizes typically range from 10mm to 50mm in diameter and lengths up to 6 meters, providing durability and efficiency.

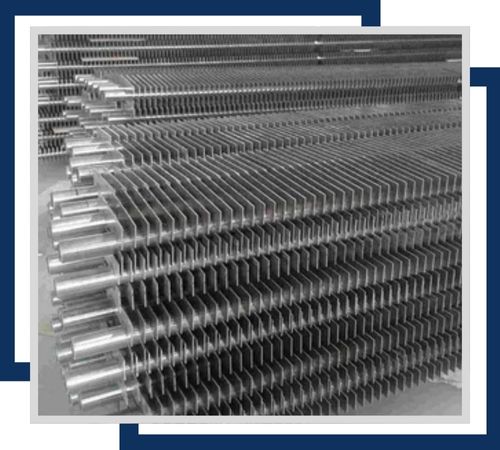

Stainless Steel 347 Fin Tubes are designed for enhanced heat transfer and corrosion resistance in air-cooled heat exchangers. They are available in various diameters, commonly 25mm to 50mm, with fin lengths customizable to specific requirements, ensuring effective cooling in challenging environments.
Stainless Steel 347 Tubing finds extensive use in industries that demand materials resistant to high temperatures and corrosion. In the aerospace field, it’s utilized in exhaust manifolds and components of jet engines due to its heat resistance. The petrochemical and refinery sectors depend on it for high-temperature processing lines, heat exchangers, and catalytic converter systems. In power plants, it’s used for superheater and reheater tubing. Marine applications also benefit from its durability, making it a go-to choice for various components exposed to harsh conditions.
