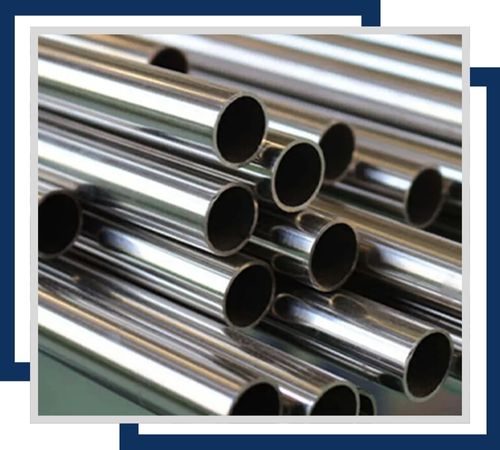

Andre Stainless, with headquarters in Pulau Ujong, Singapore, is a reliable stainless steel manufacturer, supplier, and exporter of high-quality stainless steel products. With constant quality and customer-centric service, the company provides high-performance solutions to global industries. One of its prominent offerings is Stainless Steel Welded Tubing, which can cater to the demands of contemporary engineering. Made through the process of welding rolled strips of stainless steel, the tubes provide strong construction, resistance to corrosion, and cost savings. Whether applied to petrochemical facilities, oil extraction, or chemical processing, Andre Stainless guarantees their welded tubing to be of high quality with respect to durability, accuracy, and versatility for a vast array of industrial applications.
Andre Stainless Stainless Steel Welded Tubing will usually contain chromium (16–20%), nickel (8–12%), and other alloying components such as molybdenum, depending on the grade (such as 304, 316, 409). These tubes exhibit high tensile strength (to 550 MPa), yield strength (approximately 240 MPa), and good ductility and corrosion resistance. The welding process leads to consistency throughout the entire tube length. Smooth in finish, they are resistant to scaling at high temperatures and handle high pressure very well. Cost-effective and available for design in different lengths and diameters, they are appropriate for high-performance structural and industrial applications.
| Range : | 1/8” NB to 36” NB, 1/4” OD to 36” OD |
|---|---|
| Outer Diameter : | 6.35 mm O.D to 114.3 mm O.D |
| Thickness : | 0.8 mm to 12.7 mm |
| Length : | up to 26 Meters |
| Specifications : | ASTM A312 / ASTM SA312 |
| Types : | As Welded, EFW, ERW |
| End : | Plain End, Beveled End |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
|---|---|---|---|---|---|---|---|---|---|---|
| 304 | min. max. | – 0.08 | – 2.0 | – 0.75 | – 0.045 | – 0.030 | 18.0 20.0 | – | 8.0 10.5 | – 0.10 |
| 304L | min. max. | – 0.030 | – 2.0 | – 0.75 | – 0.045 | – 0.030 | 18.0 20.0 | – | 8.0 12.0 | – 0.10 |
| 304H | min. max. | 0.04 0.10 | – 2.0 | – 0.75 | -0.045 | – 0.030 | 18.0 20.0 | – | 8.0 10.5 | – |
| Element | SS 304 |
|---|---|
| Density | 8.0 g/cm3 |
| Melting Point | 1400 °C (2550 °F) |
| Tensile Strength | Psi – 75000 , MPa – 515 |
| Yield Strength (0.2%Offset) | Psi – 30000 , MPa – 205 |
| Elongation | 35 % |
| Elongation | 35 % |
Contact us to get a quick quote for your requirement.
Stainless steel welded tubing are formed by welding stainless steel strips or plates. They offer strength, corrosion resistance, and cost-effectiveness, suitable for various industrial, commercial, and residential applications.
Stainless steel ERW (Electric Resistance Welded) tubing are produced by welding steel strips. They offer cost-effective, high-strength, and corrosion-resistant solutions for various industrial applications, providing durability and reliability.
Stainless Steel EFW (Electric Fusion Welded) tubing are produced by electrically fusing stainless steel plates or strips. They offer high precision and strength, suitable for high-pressure and demanding applications.

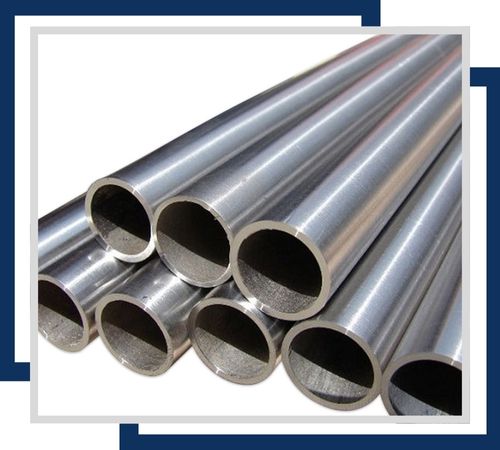

SS HFW (High-Frequency Welded) tubing are stainless steel tubings welded using high-frequency currents. They provide strong, precise joints, making them ideal for structural applications and high-strength requirements.
Stainless Steel butt-welded tubing are joined by aligning and welding the ends together. This method creates strong, leak-proof joints, ideal for high-pressure and high-temperature applications in various industries.
Stainless Steel laser-welded tubing use laser technology for precise, clean welds. They offer high accuracy, minimal thermal distortion, and are ideal for applications requiring tight tolerances and smooth finishes.
The tests include destructive testing methods and others which do not destroy the material but analyze the testing quality. We are developing into all modern aspects. Offering services to any customer that provides security assurance, we live achievement and a few policies such as consideration of diversity and advantage of best quality, quality reputation, and our name in the industry. Best quality speaks for itself, especially when the customer is satisfied after delivery. Logistical support at the most convenient part to ensure that shipping for emergency stock and standard packing materials is done correctly.
Stainless Steel Welded Tubing is universally used across industries requiring strength, hygiene, and corrosion resistance. It is employed in construction for handrails, architectural supports, and structural framing. It is utilized in the automotive and aerospace sectors for exhaust systems and fuel lines because of its capacity to withstand high temperature and pressure. In chemical and food processing industries, it provides sanitary conditions while resisting aggressive cleaning chemicals. Welded tubing also appears in medical devices, industrial furniture, and water treatment facilities, where clean appearance and durability are essential. Its versatility makes it suited for both purposeful and aesthetic applications.
