Andre Stainless stands out as a top-notch manufacturer and supplier of premium stainless steel products, proudly based in Singapore, Pulau Ujong, and boasting a strong global footprint. Known for their commitment to excellence, the company specializes in crafting Stainless Steel 405 Tubing, serving clients in Dubai, UAE. With a focus on precision engineering, Andre Stainless provides high-quality tubing solutions that adhere to international standards. Their products are trusted across various industries thanks to their durability, corrosion resistance, and dependable performance. Supported by state-of-the-art facilities and a talented workforce, Andre Stainless is dedicated to forging lasting partnerships throughout the Middle East and beyond.
Stainless Steel 405 Tubing is primarily made up of iron, featuring 11.5–14.5% chromium along with trace amounts of aluminum, manganese, and silicon, which boost its oxidation resistance and thermal conductivity. It boasts a tensile strength ranging from 380 to 580 MPa and a yield strength of about 205 MPa, with elongation capabilities of up to 25%. This ferritic stainless steel is known for its good weldability and moderate corrosion resistance, particularly in oxidizing environments. Its mechanical stability at high temperatures makes it a great fit for applications that require thermal resistance and consistent dimensions in moderately corrosive conditions.
| Description | ASTM A240 / ASME SA240 Stainless Steel Plates, ASTM A240 Hot Rolled Stainless Steel Plates |
| Standard | ASTM, ASME, BS, DIN, EN |
| Material | 310S, 310, 309, 309S, 316, 316L, 316Ti, 317, 317L, 321, 321H, 347, 347H, 304, 304L, |
| 302, 301, 201, 202, 403, 405, 409, 409L, 410, 410S, 420, 430, 631, 904L, Duplex, etc | |
| Specification | Cold rolled: 1219mm * 2438mm (4′ x 8′), 1219mm * 3048mm (4′ x 10′), 1220mm * 2440mm, 1250mm * 2500mm or as your requirement.
Hot rolled: 1500mm * 2000mm, 1000mm * 3000mm, 1500mm * 4000mm, 1500m * 6000mm or as your requiremnt. |
| Technique | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Form | Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Etc. |
| Surface | 2B, 2D, BA, NO. 1, NO. 4, NO.8, 8K, Mirror, Checkered, Embossed, Hair Line, Sand Blast, Brush, Etching |
| Thickness | 0.25-200mm, 0.3mm to 120mm |
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, 12000mm |
| Package | Standard Export Seaworthy Package, or as required. |
| Value Added Services | Cladding,Heat Treatment,Annealed, Pickling, Polish,Rolling,Cutting,Bending,Forging,Minor Fabrication Etc. |
| MTC | Mill Test Certificate, Available as per EN 10204 3.1 |
| Element | Content (%) |
|---|---|
| Iron, Fe | 85 |
| Chromium, Cr | 13 |
| Manganese, Mn | 1.0 |
| Silicon, Si | 1.0 |
| Aluminum, Al | 0.2 |
| Carbon, C | 0.080 |
| Phosphorous, P | 0.040 |
| Sulfur, S | 0.030 |
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength | 448 MPa | 65000 psi |
| Yield strength (@strain 0.200 %/) | 276 MPa | 40000 psi |
| Elastic modulus | 200 GPa | 29007 ksi |
| Poisson’s ratio | 0.27-0.30 | 0.27-0.30 |
| Elongation at break (in 50 mm) | 25.00% | 25.00% |
| Izod Impact (@20°C/68°F) | 41.0 J | 30.2 ft-lb |
| Hardness, Brinell (converted from Rockwell B hardness) | 131 | 131 |
| Hardness, Knoop (converted from Rockwell B hardness) | 146 | 146 |
| Hardness, Rockwell B | 75 | 75 |
| Hardness, Vickers (converted from Rockwell B hardness) | 140 | 140 |
Contact us to get a quick quote for your requirement.
We provides high-quality Stainless Steel 405 Tubing, strength tested, durable, and precise. All our products have undergone thorough testing in their chemical composition analysis, mechanical property assessments, and dimensional checks to provide optimal performance. All products are accompanied by certifications of compliance with industry standards and customer specifications.

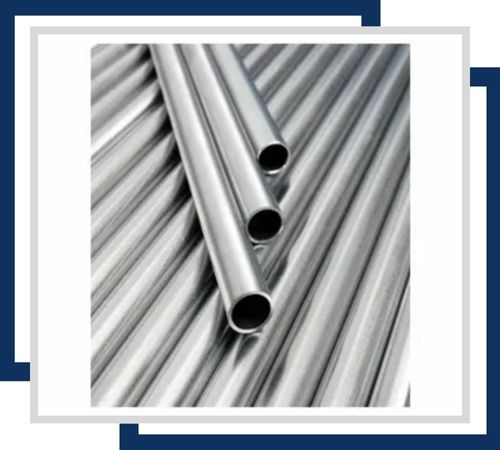

Manufactured without welding, this tubing offers superior structural integrity and reliability. Commonly available in sizes ranging from 1/8″ to 2″ in diameter. It has moderate corrosion resistance suitable for many applications.
Produced by welding a flat steel strip into a tubular shape, this type is typically available in sizes from 1/4″ to 6″ in diameter. It has good resistance to oxidation and is used where cost-efficiency is essential.

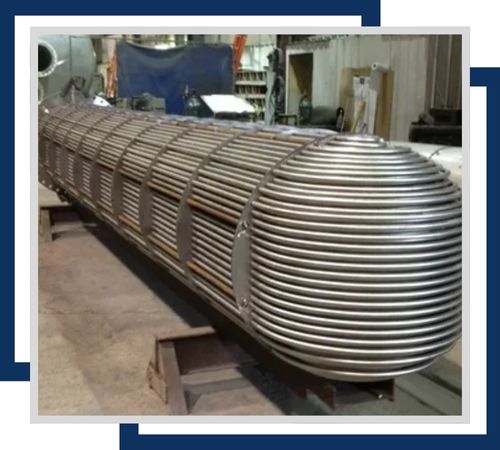

Designed specifically for heat exchanger applications, these tubes are available in diameters from 1/2″ to 2″. They provide good resistance to scaling and oxidation at high temperatures.

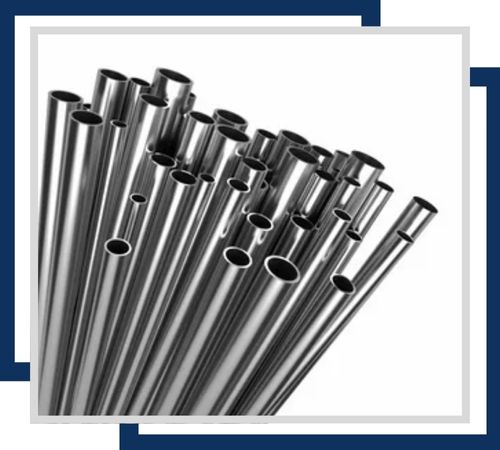

Precision-made for instrumentation purposes, this tubing usually comes in sizes from 1/16″ to 1″ in diameter. It offers excellent resistance to corrosion and is ideal for high-pressure applications.

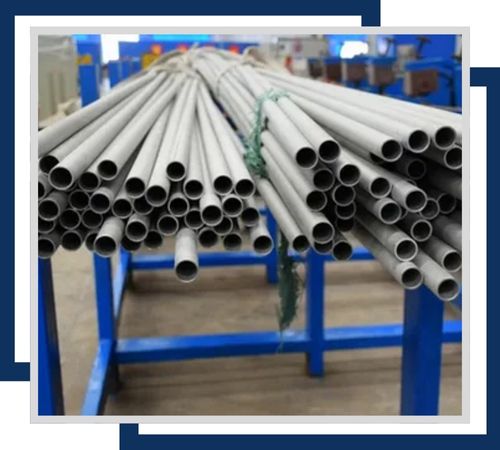

Ideal for boiler systems, these tubes are typically found in sizes from 1″ to 3″ in diameter. They are designed to handle high temperatures and pressures, with good resistance to corrosion.

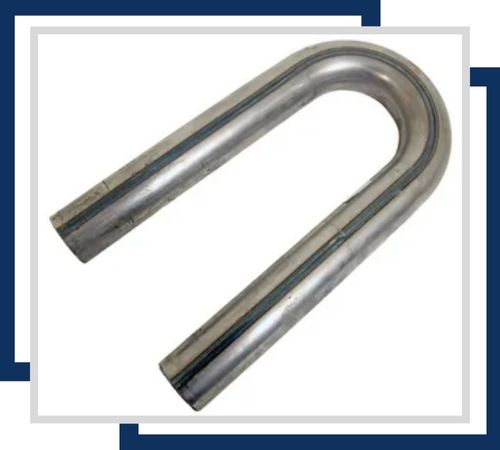

These U-shaped tubes are commonly used in heat exchangers and condensers. Sizes usually range from 1/2″ to 2″ in diameter. They provide good resistance to heat and corrosion.

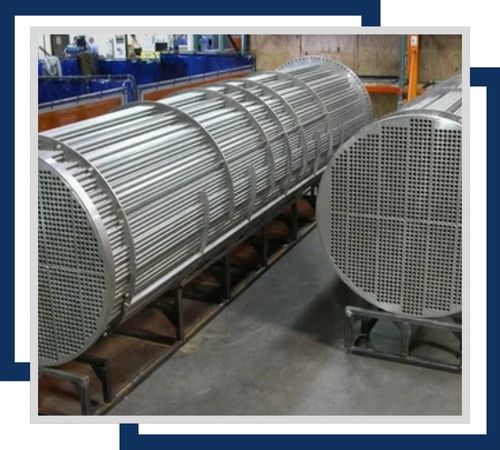

Used in condenser units, these tubes are generally available in diameters from 1/2″ to 2″. They offer excellent resistance to corrosion and high temperatures, making them suitable for various thermal applications.

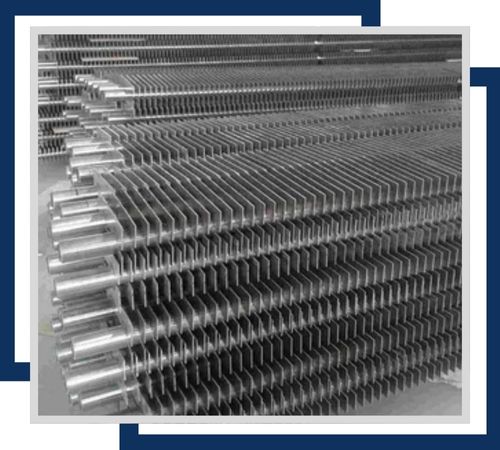

These tubes feature fins attached to increase surface area for heat transfer. They are typically available in diameters from 1/2″ to 2″. They offer good corrosion resistance and are used in heat exchangers and radiators.
You’ll find Stainless Steel 405 Tubing commonly used in automotive exhaust systems, petrochemical plants, and heat exchangers, thanks to its impressive oxidation resistance and thermal stability. It’s also a go-to choice for furnace components, gas turbines, and other high-temperature industrial settings where resistance to corrosion and scaling is crucial. In the food processing and energy sectors, this tubing ensures reliable structural integrity and performance. Its cost-effectiveness and ease of welding make it a smart option for structural applications, ducts, and fittings in industries that demand consistent performance under thermal stress.
