Andre Stainless is a well-respected manufacturer and supplier of Stainless Steel 416 Tubing based in Pulau Ujong, Singapore. They provide high-performance tubing solutions that are crafted for outstanding machinability, strength, and wear resistance. Focusing on free-machining martensitic stainless steels, Andre Stainless creates SS 416 tubing that’s perfect for precision components and applications that demand a superb surface finish and tight tolerances. Thanks to their advanced manufacturing capabilities and rigorous quality control, the company supplies SS 416 tubing to various industries, including automotive, mechanical engineering, instrumentation, and general manufacturing, both in Singapore and beyond.
Stainless Steel 416 Tubing is crafted from a martensitic stainless steel alloy that contains about 12–14% chromium, along with added sulfur to enhance machinability. It boasts moderate corrosion resistance and impressive mechanical properties, with tensile strength ranging from 550 to 760 MPa and good hardness after heat treatment. While it may not be the best choice for highly corrosive environments, it excels in dry, non-aggressive conditions and is particularly appreciated for its ease of machining and dimensional stability.
| Grade | UNS | BS | BS | EN | EN | Swedish | Japanese |
| – | No. | EN | Name | SS | JIS | ||
| 416 | S41600 | 416S21 | 56AM | 1.4005 | X12CrS13 | 2380 | SUS 416 |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| 416 | min.max. | -0.15 | -1.25 | -1.00 | -0.060 | 0.15- | 12.0-14.0 | – | – |
| Tempering Temperature (°C) | Tensile Strength(MPa) | Yield Strength 0.2% Proof (MPa) | Elongation (% in 50mm) | Hardness Brinell (HB) | Impact Charpy V (J) |
| Annealed * | 517 | 276 | 30 | 262 | – |
| Condition T ** | 758 | 586 | 18 | 248-302 | – |
| 204 | 1340 | 1050 | 11 | 388 | 20 |
| 316 | 1350 | 1060 | 12 | 388 | 22 |
| 427 | 1405 | 1110 | 11 | 401 | # |
| 538 | 1000 | 795 | 13 | 321 | # |
| 593 | 840 | 705 | 19 | 248 | 27 |
| 650 | 750 | 575 | 20 | 223 | 38 |
Contact us to get a quick quote for your requirement.
We ensures the highest quality stainless steel 416 tubing through stringent testing and certification procedures. Each tube undergoes a thorough inspection, including dimensional testing, mechanical property testing and corrosion resistance evaluation. Certificates of compliance with traceability and quality reports are provided to ensure efficiency and reliability.
Available in sizes ranging from 0.25″ to 6″ outer diameter, 416 seamless tubing offers excellent corrosion resistance and machinability. Ideal for precision applications where smooth surfaces and dimensional accuracy are critical.
With dimensions typically ranging from 0.5″ to 24″ outer diameter, 416 welded tubing is corrosion-resistant and cost-effective for larger diameter applications. It is suitable for structural and non-critical fluid transfer purposes.
Available in sizes from 0.5″ to 2″ outer diameter, these tubes provide good corrosion resistance and thermal conductivity. They are used in heat exchangers where strength and durability are essential.
Ranging from 1/8″ to 1″ outer diameter, 416 instrumentation tubing offers excellent corrosion resistance and high strength. It is used in precise control and measurement applications in various industries.
With sizes typically from 0.5″ to 5″ outer diameter, 416 boiler tubes provide excellent corrosion resistance and high-temperature performance. They are designed for use in steam boilers and other high-pressure environments.
Available in dimensions from 0.5″ to 3″ outer diameter, 416 U-tubes are corrosion-resistant and ideal for heat exchangers where compact design and efficient heat transfer are required. Their U-shape allows for easier installation in tight spaces.

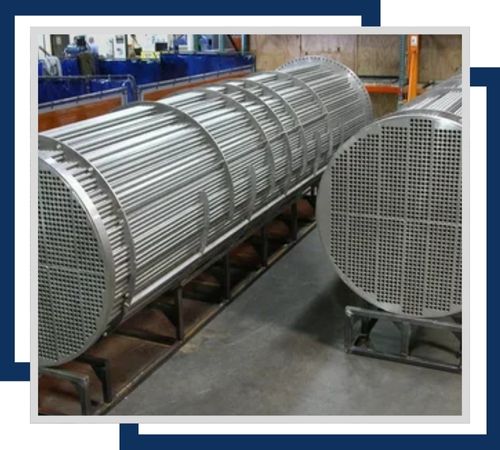

Ranging from 0.5″ to 2″ outer diameter, 416 condenser tubes offer good corrosion resistance and efficient heat transfer. They are used in condensers to cool steam and other fluids in power plants and industrial applications.
With sizes typically from 0.5″ to 3″ outer diameter, 416 fin tubes provide excellent corrosion resistance and enhanced heat transfer capabilities. They are used in heat exchangers and air coolers where maximizing surface area is critical for efficient operation.
This type of tubing is commonly used in applications that require precision-machined components, such as pump shafts, motor parts, gears, valve stems, and fasteners. Its free-machining characteristics make it ideal for high-speed CNC machining operations, where surface finish and part accuracy are crucial. Additionally, it finds its place in industries that produce fittings, bushings, and mechanical assemblies. SS 416 tubing offers a cost-effective and durable solution for components that need strength, wear resistance, and tight tolerances, as long as they aren’t exposed to highly corrosive environments.
