Home > Stud Bolts > Stainless Steel 304H Stud Bolts

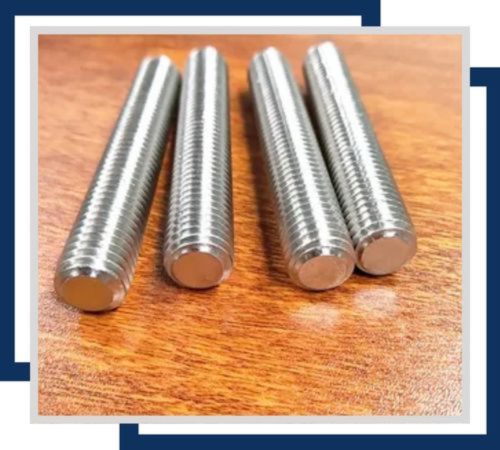

Andre Stainless is a reliable manufacturer and supplier located in Singapore, Pulau Ujong, providing top-notch Stainless Steel 304H Stud Bolts to clients in Dubai, UAE. Our 304H stud bolts are celebrated for their high strength, corrosion resistance, and dependability, making them perfect for high-temperature and high-pressure situations. Crafted with cutting-edge technology and rigorous quality control, our products adhere to international standards. We offer a variety of customized sizes and finishes to meet the unique needs of different industrial applications. At Andre Stainless, we are dedicated to delivering precision-engineered fastening solutions throughout the UAE and beyond.
Stainless Steel 304H Stud Bolts are made with a higher carbon content (0.04–0.10%) to boost their strength at elevated temperatures, along with 18–20% chromium and 8–11% nickel. These bolts showcase impressive mechanical properties, featuring a minimum tensile strength of 515 MPa and a yield strength of 205 MPa. With an elongation of 40% and outstanding resistance to oxidation and heat scaling, 304H Stud Bolts are perfect for high-temperature settings. Their robust performance makes them ideal for demanding industrial tasks that require reliability and durability.
| Grade | Stainless Steel 304, 304H, 304L |
| Specifications | ASTM A193 / ASME SA193 |
| Standard | DIN, ASTM, BS and all International Standards |
| Length | 3mm to 200mm |
| Size | M3 – M56 | 3/6″ to 2″ | Custom Sizes |
| Types | Threaded Rod, Class A double ended stud, Tie Rod, Double Ended Stud, Stud Bolts, Bronze Hex Studs, Threaded Studs |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
|---|---|---|---|---|---|---|---|---|---|---|
| 304H | min. | 0.04 | – | – | – | – | 18.0 | – | 8.0 | – |
| max. | 0.10 | 2.0 | 0.75 | 0.045 | 0.030 | 20.0 | – | 10.5 | – | |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
|---|---|---|---|---|---|
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 304H | 515 | 205 | 40 | 92 | 201 |
Contact us to get a quick quote for your requirement.

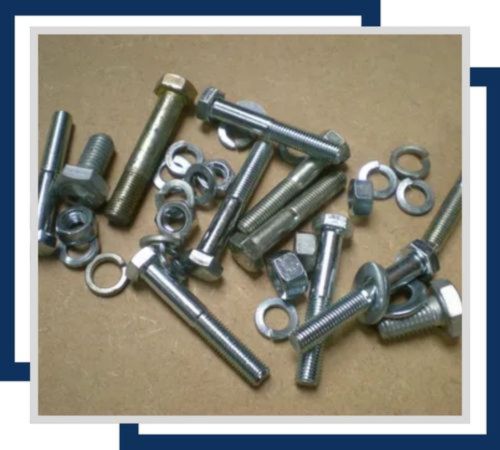

Stainless Steel DIN 1.4301 Stud Bolts offer superior strength and corrosion resistance, adhering to DIN standards. Ideal for general-purpose applications, they ensure reliable performance in various industrial settings.

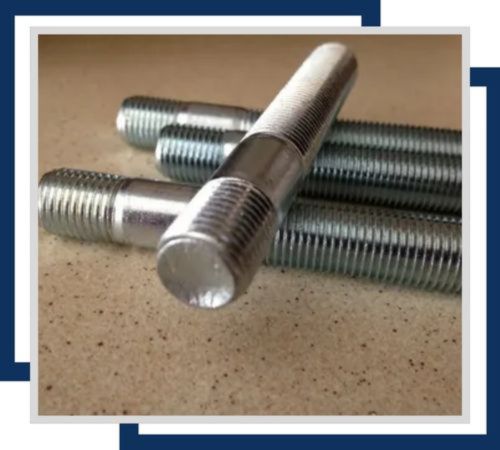

Stainless Steel UNS S30409 Stud Bolts deliver high strength and excellent resistance to corrosion and high temperatures. Suitable for demanding industrial applications, they ensure durability and reliability in challenging environments.

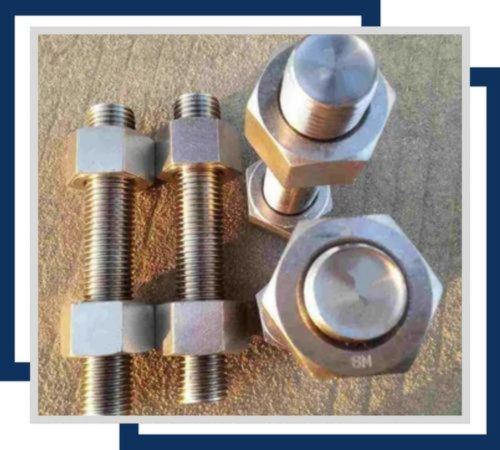

Stainless Steel 304H Flush Head Stud Bolts combine high strength with a sleek, flush design, ideal for applications requiring minimal protrusion. They offer excellent corrosion resistance and durability in harsh environments.
We ensure detailed documents of our Stainless Steel 304H Stud Bolts, ensuring the product is thoroughly transactable and reliable in communication. Our documents include a commercial invoice, packaging list, fumigation certificate, heat treatment chart, and a quality assurance plan. The shipment contains the NABL-approved lab test report, ensuring that the product meets very high standards. The quality commitment is further depicted by several test certificates, such as MTC as per EN 10204/3.1b, PMI Test Certificate, 100% radiography test report, and a Third-Party Inspection Certificate. All these measures ensure 100% client satisfaction and confidence in the integrity of our products.
You’ll find Stainless Steel 304H Stud Bolts in various industries, including petrochemical, power generation, oil and gas, and chemical processing. Thanks to their superior creep resistance and high tensile strength at elevated temperatures, they are often used in pressure vessels, boilers, heat exchangers, and refinery equipment. These stud bolts also play vital roles in structural and piping systems where resistance to corrosion and temperature is crucial. Their durability and ability to thrive in extreme conditions make them essential components in heavy-duty applications across Dubai and other industrial centers.
