Home > Stud Bolts > Stainless Steel 304L Stud Bolts

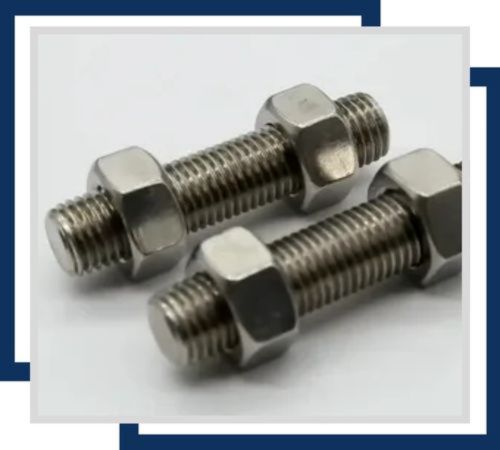

Andre Stainless is a reputable manufacturer and supplier located in Singapore, specifically on Pulau Ujong, providing high-quality Stainless Steel 304L Stud Bolts to clients in Dubai, UAE. These stud bolts are celebrated for their exceptional durability and corrosion resistance, crafted with cutting-edge manufacturing techniques and rigorous quality control. Andre Stainless prides itself on timely deliveries, competitive pricing, and adherence to international standards. Catering to a wide range of industries, the company is dedicated to offering products that ensure long-lasting performance, even in challenging environmental conditions. Their Stainless Steel 304L Stud Bolts are commonly utilized for structural and mechanical fastening solutions.
These Stainless Steel 304L Stud Bolts are made from low-carbon stainless steel, featuring about 18% chromium and 8% nickel. This specific alloy composition provides enhanced corrosion resistance, especially in mildly corrosive settings. The mechanical properties include a tensile strength of approximately 485 MPa, yield strength of 170 MPa, along with impressive elongation and toughness. These characteristics make the 304L stud bolts ideal for high-stress applications while minimizing the risk of carbide precipitation during welding, ensuring structural integrity across various temperature ranges.
| Specification | ASTM A 193/ASME SA 193 |
| Standard | all International Standards and ASTM, DIN, BS |
| Size | M3 – M56 | 3/6″ to 2″ | Custom Sizes |
| Length | 3 mm to 200 mm | Custom Sizes |
| Dimensions | DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3 |
| Form | Hex, Threading, Square, Round as per Gauge Etc. |
| Threads | Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically |
| Threads available | UNF, BSW, BSF, METRIC, UNC, or as required |
| Threads Configuration | ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
| Certification | Dual Certified As per ASTM & ASME Codes |
| Test Certificate | As per EN 10204 / 3.1 Manufacturer Test Certificate, PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified |
| Raw materials Source | JSPL, Mukund Steel, Tata Steel, Dhamm Steel, Usha Martin,etc. |
| Packing | IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request |
| Surface Coating | Cadmium Coating Hot Dipped Galvanizing Coating Ptfe Coated Phosphate Coating Teflon Coating Xylon Coating Zinc Coating |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 304L | 0.035 max | 2 max | 1.0 max | 0.045 max | 0.030 max | 18 – 20 | – | 8 – 13 | – |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 550 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.

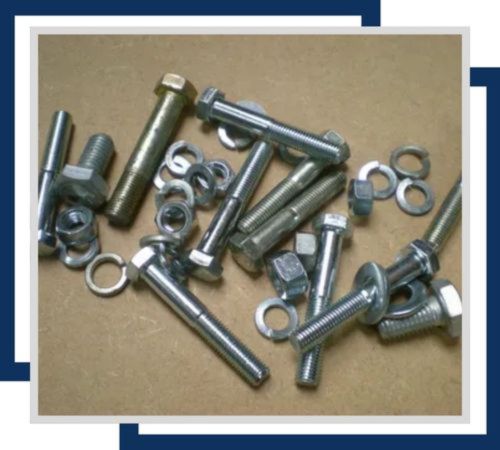

Stainless Steel DIN 1.4301 stud bolts offer exceptional strength and corrosion resistance. Designed for high-performance applications, they ensure durable and secure connections with precise threading and high-quality stainless steel.

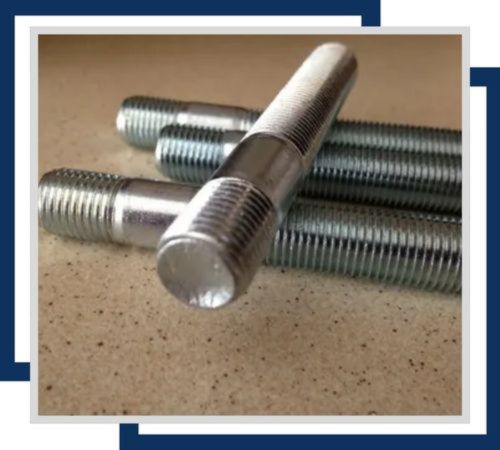

Stainless Steel UNS S30403 stud bolts provide outstanding durability and resistance to corrosion. Perfect for demanding applications, they offer secure, reliable connections with high-strength performance and precision threading.

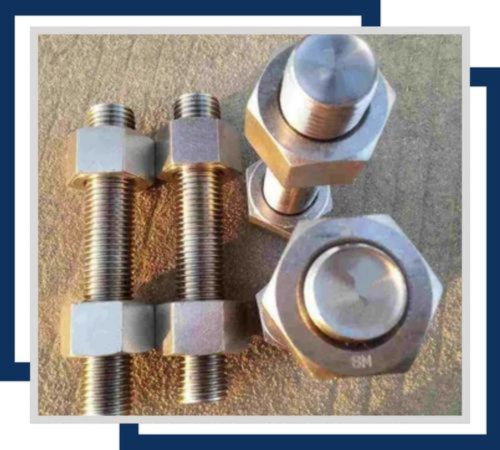

Stainless Steel 304L flush head stud bolts combine durability and sleek design, offering excellent corrosion resistance and strength. Their flush head allows for a clean, streamlined installation in tight spaces.
We assure the transparency of our Stainless Steel 304L Stud Bolts with the high quality assurance. All the orders are supplied along with relevant documents like a commercial invoice, packing list, fumigation certificate, heat treatment chart, and NABL-approved lab test report. We offer Material Test Certificates according to EN 10204/3.1b, PMI Test Certificates, 100% radiography test reports, and Third-Party Inspection Certificates. Detailed documentation is maintained in order to meet the satisfaction level of clients to the highest level.
You’ll find Stainless Steel 304L Stud Bolts widely used in petrochemical plants, the oil and gas sector, marine structures, and power generation facilities, thanks to their outstanding corrosion resistance and strength. Their low carbon content makes them perfect for welded structures where post-weld annealing isn’t an option. These fasteners are also frequently used in food processing, pharmaceutical equipment, and architectural projects due to their hygiene, durability, and appealing appearance. Their ability to perform well under diverse temperatures and environmental conditions makes them a top choice for both industrial and commercial applications.
