Home > Stud Bolts > Stainless Steel 316H Stud Bolts
Andre Stainless is a top-notch manufacturer and supplier located in Singapore, Pulau Ujong, that specializes in high-quality stainless steel fasteners. Known for their commitment to quality and precision, Andre Stainless produces Stainless Steel 316H Stud Bolts right in Dubai, UAE, to meet global demand. These bolts are engineered for outstanding performance in extreme conditions, ensuring they last long and resist corrosion. With cutting-edge facilities and rigorous quality control, the company caters to industries like oil & gas, petrochemical, marine, and construction, providing products that not only meet international standards but also go above and beyond customer expectations across various engineering applications.
Stainless Steel 316H Stud Bolts are primarily made up of chromium (16–18%), nickel (10–14%), and molybdenum (2–3%), along with carbon and iron. This unique blend boosts their strength and corrosion resistance, especially at high temperatures. On the mechanical side, 316H boasts a minimum tensile strength of 515 MPa, a yield strength of 205 MPa, and impressive elongation and hardness properties, making it perfect for tough environments. These characteristics make the bolts ideal for high-temperature and high-pressure situations where both mechanical integrity and corrosion resistance are essential.
| Fasteners Material Specification | ASTM A194, ASME SA193, UNS S31609 Bolts |
|---|---|
| Standard | DIN, UNI, ISO, JIS, GB, IS, BS, ASME, ANSI, ASTM and all International Standards |
| Fasteners/ Bolts Size | M2, M2.5, M3, M4, M5, M6, M8, M10, M12, M14, M16, M20, M24, M30, M36 to M160 |
| Length | 3 mm to 200 mm |
| Bolts, Studs Threads: | METRIC, BSW, BSF, UNC, UNF or as required |
| SS 316h Fasteners Standard: | ANSI – American National Standards Institute
|
| Source of raw materials | Tata Steel, JSPL, RINL, Usha Martin, Dhamm Steel, Mukund Steel etc. |
| SCOPE OF MANUFACTURE |
|
| Fasteners In Form of: | Hex, Square, Round, Threading as per Gauge Etc. |
| Head drive: | Phillips, Slotted, Phillips/Slot, Six-Lobe, etc |
| bolting Test Certificate: | Manufacturer Test Certificate as per EN 10204 / 3.1 |
| Fasteners finishing: | Zinc (yellow, white, blue, black), black oxide, Geometry, Dacroment, anodizing, nickel plated, plated zinc-nickel, Stainless steel: Passivated Self-Colour, Hot Dip Galvanised (HDG), Bright Zinc Plated (BZP), Sherardized, Stainless Steel, Mechanically Applied coating and some special one like DACROMET |
| Production process | M2-M24: Cold Froging, hot forging M24-M100, machining and CNC for Customized connecting element |
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
316H | Min | 0.04 | 0.04 | 0 | – | – | 16.0 | 2.00 | 10.0 | – |
max | 0.10 | 0.10 | 0.75 | 0.045 | 0.03 | 18.0 | 3.00 | 14.0 | – |
Grade | Tensile Str (MPa) min | Yield Str 0.2% Proof (MPa) min | Elong (% in 50mm) min | Hardness | |
Rockwell B (HR B) max | Brinell (HB) max | ||||
316H | 515 | 205 | 40 | 95 | 217 |
Contact us to get a quick quote for your requirement.

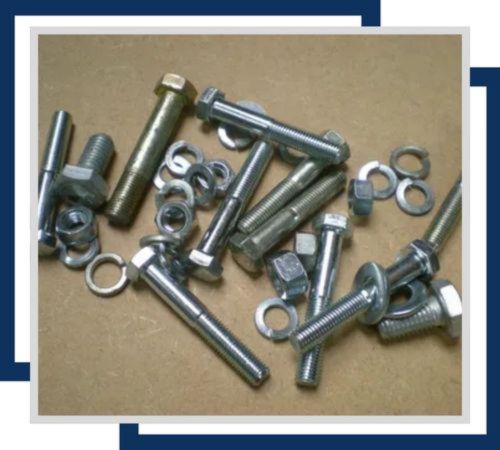

Stainless Steel 316H lag stud bolts offer high strength and superior corrosion resistance, ideal for high-temperature and harsh environments, ensuring durability and reliability in industrial, chemical, and marine applications.

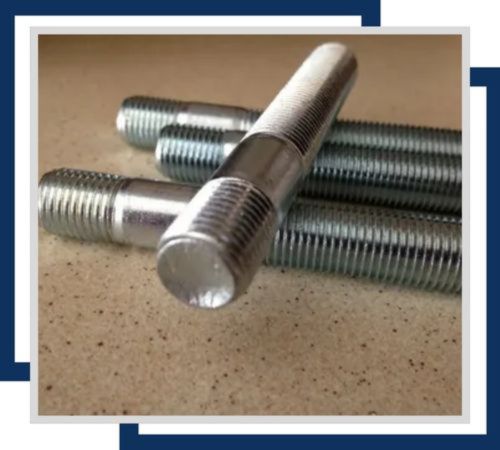

Stainless Steel 316H stud anchor bolts provide high strength and exceptional corrosion resistance, ideal for high-temperature and harsh environments, ensuring secure anchoring in industrial, chemical, and marine applications.

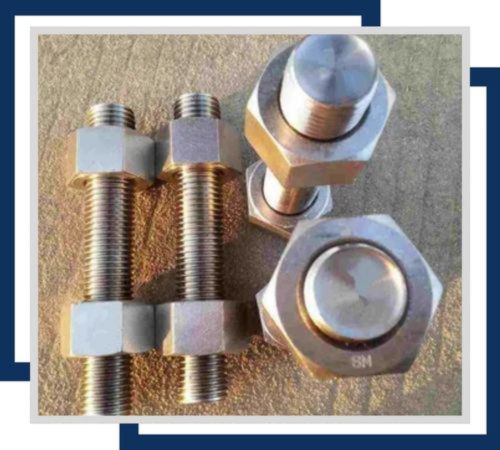

Stainless Steel 316H exhaust stud bolts offer high strength and corrosion resistance, ideal for high-temperature exhaust systems, ensuring durability and reliability in automotive, industrial, and marine applications.
We provide a wide range of certifications by supplying you with only the highest quality standards through our Stainless Steel 316H Stud Bolts. What’s included in our package is commercial invoices, packaging lists, fumigation certificates, heat treatment charts, quality assurance plans, and approved laboratory test reports. We also give you different types of test certificates specifically for your Stainless Steel 316H Stud Bolts. We assure 100 percent client satisfaction with confidence in products by providing them with the proper certifications. It includes MTC as per EN 10204/3.1b, PMI Test Certificate, and 100 percent radiography test report and third-party inspection certificates.
Stainless Steel 316H Stud Bolts find their place in industries that demand high-temperature strength and corrosion resistance. You’ll see them in pressure vessels, heat exchangers, boilers, and piping systems in power plants, refineries, and chemical processing facilities. In the marine industry, they’re a go-to choice for offshore oil rigs and shipbuilding due to their resilience against saltwater corrosion. These bolts are also commonly used in construction and infrastructure projects, especially in areas that frequently face harsh conditions. Their dependable performance and strength make them a top pick for critical applications in both industrial and structural engineering.
