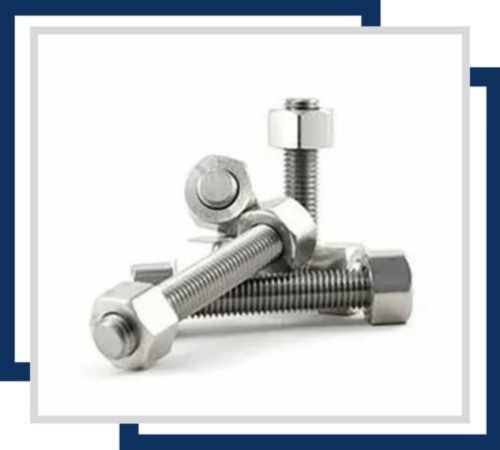

Andre Stainless is a well-known manufacturer and supplier located in Singapore, specifically on Pulau Ujong. They specialize in top-notch stainless steel fasteners, including the highly regarded Stainless Steel 410 Stud Bolts. Renowned for their precision engineering and adherence to international standards, this company exports premium fasteners to various global markets, including Dubai, UAE. Their Stainless Steel 410 Stud Bolts are particularly sought after in industries that demand strength, durability, and resistance to corrosion. With a strong emphasis on quality assurance and timely delivery, Andre Stainless caters to a diverse array of sectors such as oil and gas, construction, marine, and petrochemical industries throughout the Middle East and beyond.
The Stainless Steel 410 Stud Bolts are primarily made of iron, containing about 11.5% to 13.5% chromium, which provides moderate corrosion resistance along with good strength. They also include trace amounts of manganese, silicon, phosphorus, sulfur, and carbon. In terms of mechanical properties, these bolts boast a tensile strength ranging from 480 MPa to 700 MPa and a hardness of up to 250 HB. The alloy is known for its good wear resistance and machinability. With heat treatment, their hardness and strength can be further enhanced, making them perfect for high-stress applications that require both mechanical integrity and resilience against environmental factors.
|
Standards |
Designation |
|---|---|
| Thread Requirements of Stud Bolts | UNC & UNF, ASME B1.1, Class 2A (Fastenal will inspect and accept parts with a 1A no-go gauge) |
| Stainless Steel Stud Bolts Manufacturing Process | Cold Heading, Wire Drawing, Heat Treatment, Insert tapping, Inspection, Surface Plating, Packing |
| Stainless Steel Stud Bolts Delivery time | custom product will according to special requirement, Regular product is about 7-15 days |
| Stainless Steel Stud Bolts Coatings | PTFE |
| Stainless Steel Stud Bolts Head | Square, Hex, Hex flange, Round, T-head, Flat & Triangular etc |
| Stainless Steel Stud Bolts Neck type | Square, Hex, Oval, Triangular & Knurled etc |
|
Stainless Steel Stud Bolts Dimensions |
ASME B18.3, B18.2.1 |
|
Melt Origin |
South America/East Europe/Japan/Korea |
|
Stainless Steel Stud Bolts Threads Configuration |
B1.13M 6h Metric Coarse Threads and ASME B1.1 2A/3A Inch Unified Threads |
|
Stainless Steel Stud Bolts Certification |
Dual Certified As per ASME & ASTM Codes |
|
Additional Certifications |
Merkblatt AD 2000 W2 Certified, PED 97/23/EC Certified |
|
Mandatory Requirements |
Free from Radioactive & Mercury Contamination |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 410 | min. | – | – | – | – | – | 11.5 | – | – | – |
| max. | 0.15 | 1.0 | 1.00 | 0.040 | 0.030 | 13.5 | – | 0.75 | – | |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 410 | 480 | 275 | 16 | 95 | 201 |
Contact us to get a quick quote for your requirement.

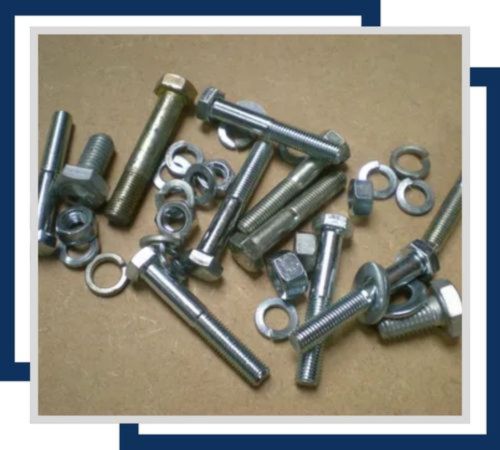

Stainless Steel 410 stud anchor bolts are durable, high-strength fasteners designed for secure anchoring in concrete and masonry. They offer excellent wear resistance and moderate corrosion resistance for demanding applications.

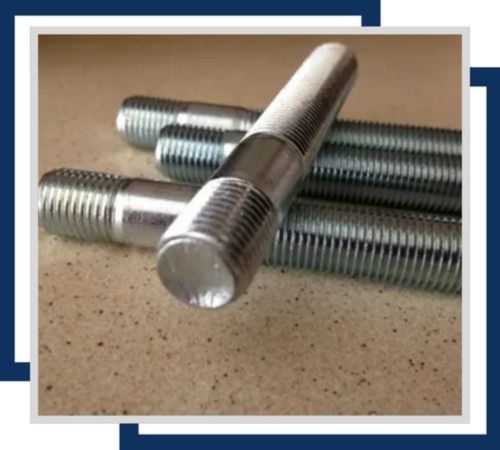

Stainless Steel 410 stud exhaust bolts are high-strength fasteners designed for automotive exhaust systems. They offer excellent wear resistance and durability under high temperatures, with moderate corrosion resistance for demanding conditions.

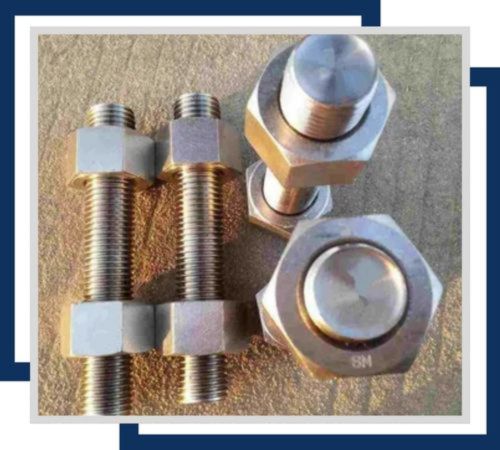

Stainless Steel 410 stud lag bolts are robust, high-strength fasteners with a threaded design, ideal for heavy-duty wood and metal applications. They offer durability, wear resistance, and moderate corrosion resistance.
Stainless Steel 410 stud bolts are used mostly in high-strength, durability-based, and resistance-to-corrosion industries like machinery, the automotive industry, oil and gas, power generation, and chemical processing. These particular bolts are specifically used for highly heavy-duty equipment securing and component assemblage processes, especially high-temperature ranges. Due to their oxidation resistive nature, they are found in food-processing, marine industries, and building construction. The stainless steel 410 stud bolts are particularly effective in providing secure connections under harsh conditions and demanding applications.
The Stainless Steel 410 Stud Bolts produced by Andre Stainless are widely utilized in applications that require high strength and moderate corrosion resistance. They are particularly well-suited for constructing bridges, buildings, and highways, especially in offshore and marine settings. Additionally, these bolts play a crucial role in the oil and gas sector, petrochemical plants, and power generation facilities due to their reliable performance in high-temperature and high-pressure environments. Their outstanding mechanical properties and durability make them a dependable choice for pumps, valves, pressure vessels, and other heavy-duty industrial equipment.
