Andre Stainless is a well-known manufacturer and supplier located in Singapore, specifically on Pulau Ujong, that focuses on producing top-notch stainless steel fasteners. With a solid reputation for precision engineering and dependable delivery, Andre Stainless has become a go-to name for Stainless Steel 309 Nuts, particularly among clients in Dubai, UAE. Their products adhere to strict international standards, making them perfect for demanding industrial settings. By blending cutting-edge manufacturing technology with a strong commitment to customer satisfaction, Andre Stainless guarantees that each product delivers durability, corrosion resistance, and long-lasting performance, meeting the varied needs of different sectors in the Middle East and beyond.
Stainless Steel 309 Nuts are primarily made up of chromium (22–24%) and nickel (12–15%), which provides outstanding oxidation resistance at high temperatures. This austenitic alloy features low carbon content to reduce carbide precipitation during welding. In terms of mechanical properties, SS 309 Nuts have a tensile strength of about 550 MPa, a yield strength of around 205 MPa, and an elongation of 40% over 50mm. These characteristics make them ideal for high-heat and corrosive environments, ensuring they maintain structural integrity and reliability. Their strength and resistance to scaling at elevated temperatures make them perfect for both industrial and architectural uses.
Element | Content (%) |
Iron, Fe | 60 |
Chromium, Cr | 23 |
Nickel, Ni | 14 |
Manganese, Mn | 2 |
Silicon, Si | 1 |
Carbon, C | 0.20 |
Phosphorous, P | 0.045 |
Sulfur, S | 0.030 |
Properties | Metric | Imperial |
Tensile strength | 620 MPa | 89900 psi |
Yield strength (@ strain 0.200%) | 310 MPa | 45000 psi |
Izod impact | 120 – 165 J | 88.5 – 122 ft-lb |
Shear modulus (typical for steel) | 77 GPa | 11200 ksi |
Elastic modulus | 200 GPa | 29008 ksi |
Poisson’s ratio | 0.27-0.30 | 0.27-0.30 |
Elongation at break (in 50 mm) | 45% | 45% |
Hardness, Brinell | 147 | 147 |
Hardness, Rockwell B | 85 | 85 |
Hardness, Vickers (converted from Rockwell B hardness) | 169 | 169 |
Contact us to get a quick quote for your requirement.

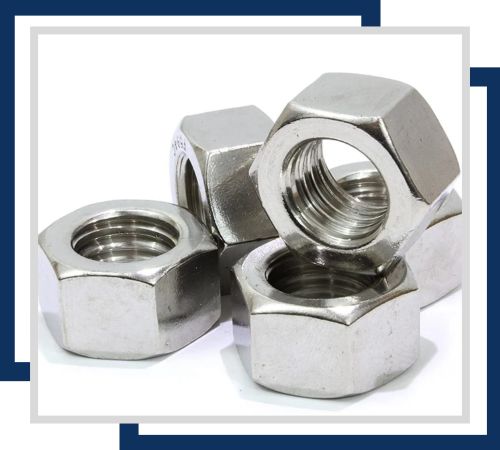

An ideal corrosion resistant material for high humidity environments. Stainless steel 309 nuts are available in sizes from M6 to M36, perfect for furnace parts, heat exchangers and industrial applications requiring high thermal resistance.

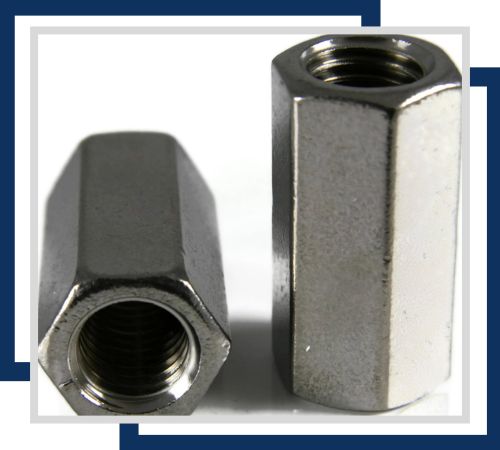

Stainless steel 309 coupling nuts are used to connect threaded cables under high temperature conditions. Sizes range from M6 to M36, making them suitable for use in furnace parts and heat exchangers, providing durability and heat resistance.

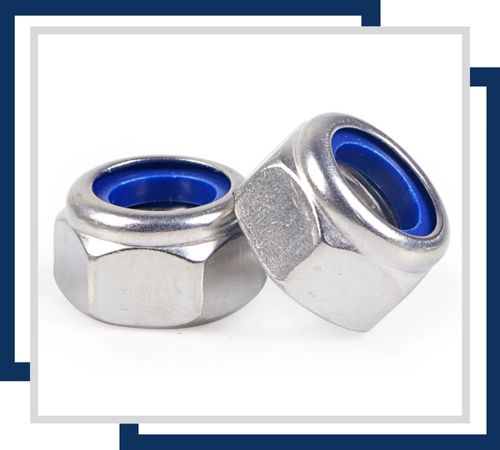

Stainless steel 309 nylon insert nuts make nylon inserts flexible for secure fastening in high temperature environments. Available in sizes from M6 to M24, they are ideal for applications in heat exchangers and industrial furnaces where stability is required.

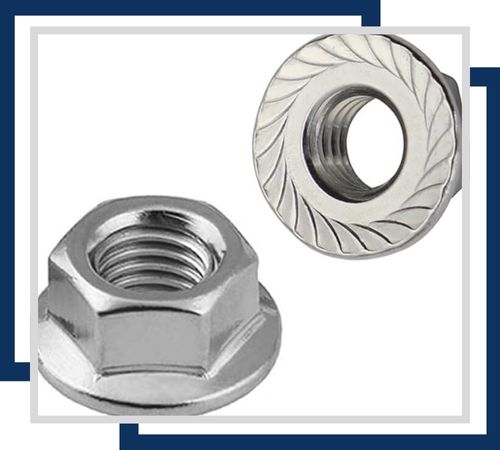

Stainless steel 309 flange hex nuts for enhanced weight distribution with integrated flanges. Sizes range from M6 to M24, suitable for high temperature applications such as furnace components and heat exchangers, providing both strength and thermal resistance

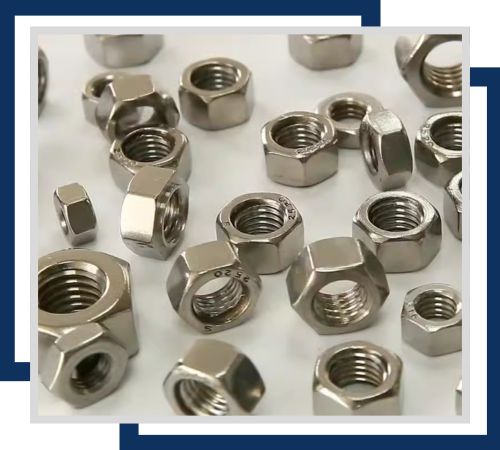

Heavy duty stainless steel 309 hex nuts are designed for high pressure, high temperature applications. Available in sizes from M6 to M36, they are used in industrial machinery and furnace components, and offer exceptional strength and heat resistance.

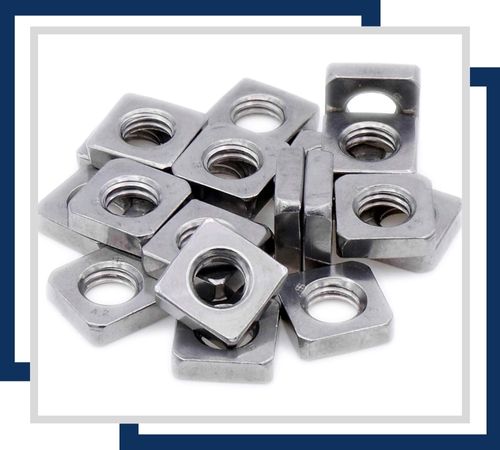

Stainless steel 309 square nuts provide large surface area for efficient torque application. Sizes range from M6 to M24, making them suitable for hot environments such as heat exchangers and furnace parts, making them strong and durable.
We ensure complete documentation for our Stainless Steel 309 Nuts to make them transparent and reliable. Documents include a commercial invoice, a packaging list, a fumigation certificate, a heat treatment chart, and a quality assurance plan. It is accompanied by an NABL-approved lab test report, which satisfies stringent standards. Our commitment to quality is supported by various test certificates, like MTC as per EN 10204/3.1b, PMI Test Certificate, 100% radiography test report, and a Third-Party Inspection Certificate. These measures will collectively guarantee 100% client satisfaction and confidence in the integrity of our products.
Stainless Steel 309 Nuts find extensive application in industries that demand high-temperature strength and corrosion resistance, such as petrochemical, power generation, and heat treatment equipment. In Dubai and throughout the UAE, these nuts are crucial components in furnaces, boilers, exhaust systems, and heat exchangers. Their remarkable resistance to oxidation and sulfidation also makes them suitable for marine and offshore applications. Furthermore, SS 309 Nuts are utilized in chemical processing plants, food processing machinery, and architectural structures, ensuring long-lasting performance even in tough environmental and operational conditions.
