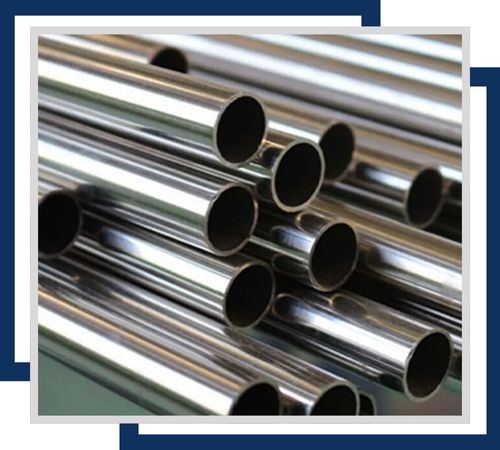

Andre Stainless is one of the leading suppliers and manufacturers of Stainless Steel 17-4 PH Pipes in Pulau Ujong, Singapore. Carefully designed with high performance and put through stringent heat treatment to fulfill precise industrial standards, the pipes are made for uses that demand strength, durability, and corrosion resistance. The pipes, hence, are suitable for hydraulic systems, pressure vessels, and steam lines. Andre Stainless offers various sizes and schedules, both seamless and welded, to meet the special requirements of customers across industries like aerospace, power, oil & gas, and marine infrastructure.
17-4 PH stainless steel consists of approximately 15–17.5% chromium, 3–5% nickel, 3–5% copper, and small amounts of elements such as niobium. It acquires strength by going through a solution treatment followed by aging, which gives tensile strength of up to 1200 MPa and yield strength in the order of 1100 MPa. It has a hardness of up to HRC 40–45, with elongation of 8–10%. Its mechanical properties can be varied by aging at various temperatures (e.g., H900, H1150), and thus it offers design flexibility. Corrosion resistance is usually good in mild to moderate conditions, similar to conventional austenitic stainless steels.
| Specifications | ASTM A312 / ASME SA312 |
| Dimensional specification | ANSI/ASME B36.19M, ANSI/ASME B36.10M |
| Size | 1 / 8″ NB – 24″ NB |
| Outside Diameter | 6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB available Ex-stock, OD Size Steel Tubes available Ex-stock |
| Manufacturing Shapes | Hydraulic, Round, Square, Hex, Honed |
| Manufacturing Techniques | Normalized & as Rolled |
| Schedule Thickness Range | SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS |
| End Types | Plain End, Beveled End, Treaded One End, TBE (Treaded Both Ends) |
| Surface Finish | No.1, No.4, No.8 Mirror Finish, 2B |
| Value Added Services | Cutting, Beveling, Polishing, Threading, Destructive, Non Destructive, Ultrasonic Testing |
| Inspection and Test Reports | EN 10204 3.1, Mill Test Certificates, Chemical Reports, PMI Test Reports, Mechanical Reports, Third Party Inspection, NABL Approved Lab, Visual Inspection, Destructive Test and Non Destructive Test Reports |
| Outside Finish | 2B, No.4, No.1, No.8 Mirror Finish for Stainless Steel Seamless Pipes, Finish as per customer Requirements |
| Delivery Condition | Annealed and Pickled, Polished, Bright Annealed, Cold Drawn |
| Heat Treatment | Normalized, Normalized & Tempered |
| Packing of Seamless Pipes | Packed in Wooden Boxes, Plastic Bags, Steel Strips Bundled, or as per Customers Requests |
| Specials | Sizes and Specifications other than above can be on request |
| Grade | C | Cb+Ta | Cr | Cu | Fe | Mn | Ni | P | S | Si |
| SS 17-4 PH | 0.07 max | 0.15-0.45 | 15.00-17.50 | 3.00-5.00 | Bal | 1.0 max | 3.0-5.0 | 0.40 max | 0.03 max | 1.0 |
| Grade | Tensile Strength ksi (MPa) | Yield Strength 0.2% ksi (min) | Elongation % | Hardness (Rockwell) MAX |
| SS 17-4 PH | 170000 psi | 140000 psi | 6% | 38 |
Contact us to get a quick quote for your requirement.
We ensured the high quality standards for Stainless Steel 17-4 PH pipes with strict testing and certification. The pipe is checked with a set of comprehensive tests that include chemical analysis, mechanical property checks, and corrosion resistance assessments. Relevant certificates, like Mill Test Certificates (MTC), accompany the products as well to meet international standards completely.
“High-quality 17-4 PH stainless steel pipes offer exceptional strength, corrosion resistance, and durability. Perfect for demanding industrial applications, they provide reliable performance in extreme conditions and harsh environments.”

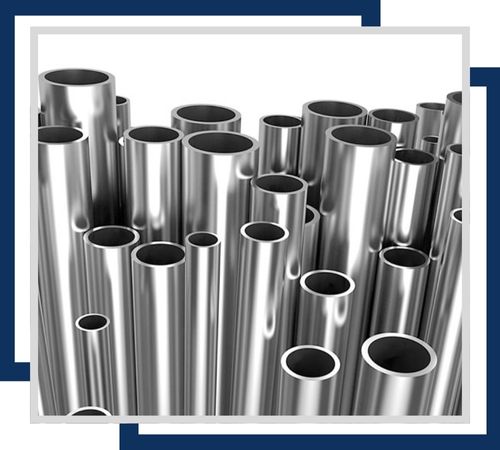

“ASTM A312 SS 17-4 PH ERW pipes deliver outstanding strength and corrosion resistance. Ideal for high-stress applications, they ensure durability and reliable performance in challenging industrial environments and applications.”

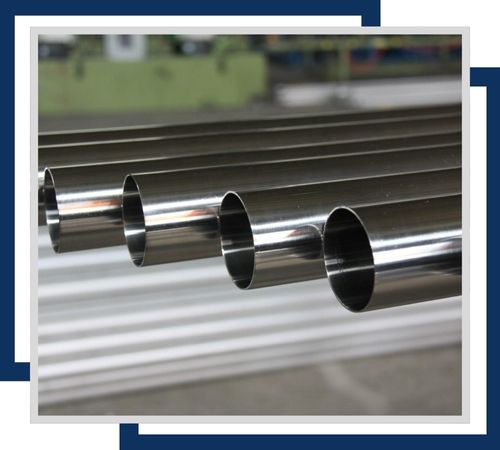

Stainless Steel 17-4 PH capillary pipes offer superior strength and corrosion resistance. Ideal for precision applications, they ensure reliability and durability in demanding environments, combining high performance with long-lasting quality.

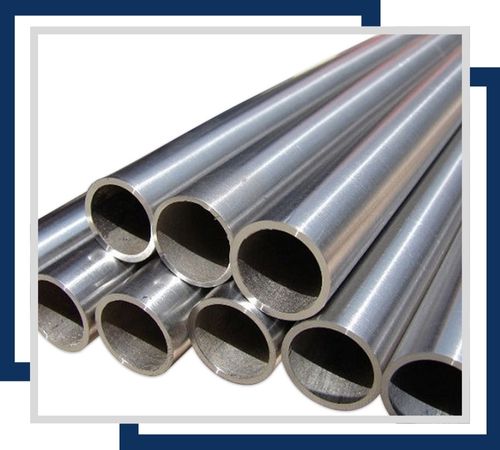

UNS S17400 spiral welded pipes provide exceptional strength and corrosion resistance. Ideal for high-pressure and demanding applications, they offer durability and reliable performance in challenging industrial environments.

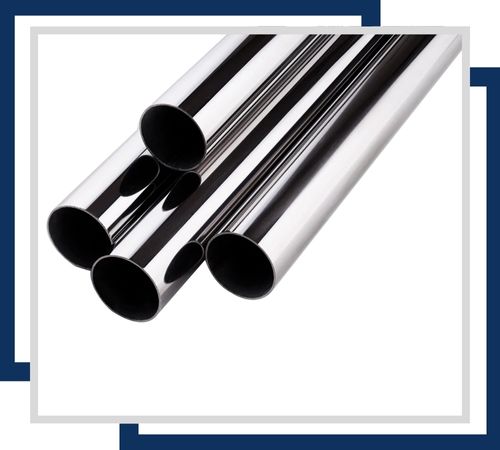

17-4 PH SS electropolished pipes offer superior corrosion resistance and a smooth finish. Ideal for sanitary and high-performance applications, they provide enhanced durability and reliability in demanding environments.

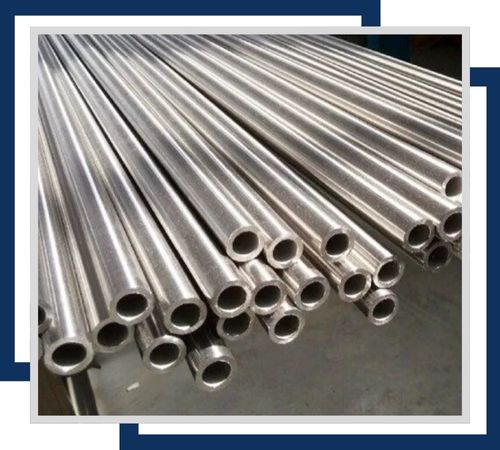

SS 17-4 PH slot round pipes feature exceptional strength and corrosion resistance with precision slots. Ideal for structural and filtration applications, they ensure durability and high performance in demanding conditions.
17-4 PH pipes find extensive applications in high-pressure fluid transportation systems, such as hydraulic lines, chemical process piping, and power plant steam systems. Their fatigue resistance and strength qualify them for structural piping in offshore platforms and marine installations. These pipes are utilized in aerospace ground support systems, petrochemical processing systems, as well as defense systems. Their high machinability and weldability make fabrication and installation easier. Andre Stainless provides seamless and electric fusion welded (EFW) pipes in different lengths, diameters, and finishes to cater to standard and custom industrial uses.
