Andre Stainless is a reliable manufacturer and supplier of Stainless Steel 317 Pipes, serving clients in Singapore, Pulau Ujong, with expertly crafted solutions. Known for providing top-notch products, Andre Stainless guarantees that each pipe adheres to global standards for strength, durability, and resistance to corrosion. Our Stainless Steel 317 Pipes are built to perform consistently in harsh chemical and marine settings. With a strong focus on customer satisfaction and technical excellence, we cater to various industries across the region, ensuring timely deliveries and competitive pricing, which makes us a go-to choice for stainless steel piping needs in Singapore and beyond.
Stainless Steel 317 Pipes are primarily made up of chromium (18–20%), nickel (11–15%), and molybdenum (3–4%), which boosts their resistance to corrosion in acidic conditions. These pipes have a tensile strength of around 75 ksi (515 MPa) and a yield strength of 30 ksi (205 MPa), along with impressive elongation and toughness. They are easy to weld and form, even in high-temperature and high-stress situations. Their low carbon content helps avoid carbide precipitation, which enhances their resistance to intergranular corrosion. These mechanical and chemical properties make them perfect for demanding industrial applications.
| Thickness | 0.5mm-100mm | ||||||
| Outer diameter | 10mm, 25.4mm, 38.1mm, 50.8mm, 100mm, 250mm, 300mm, 350mm, etc | ||||||
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc | ||||||
| Surface | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc | ||||||
| Finish | Hot rolled (HR), Cold rolled Tube (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) | ||||||
| Form | Round tube Square tube Rectangular tube etc. | ||||||
Grade | Ni | Mn | P | C | S | Si | Cr | Mo | N | |
317 | min. | 8.0 | – | – | – | – | – | 18.0 | – | – |
max. | 10.5 | 2.0 | 0.045 | 0.08 | 0.030 | 0.75 | 20.0 | |||
Grade | Tensile Strength (MPa) min | Elongation (% in 50mm) min | Yield Strength 0.2% Proof (MPa) min | Hardness | |
Rockwell B (HR B) max | Brinell (HB) max | ||||
317 | 515 | 40 | 205 | 92 | 201 |
Contact us to get a quick quote for your requirement.
We ensures high quality stainless steel 317 pipe through extensive testing and certification. Our pipe involves chemical composition analysis, mechanical testing and dimensional inspection. We offer comprehensive certificates of compliance, proving that international standards are met. This provides exceptional strength, corrosion and reliability, which promises all the requirements of the industry.

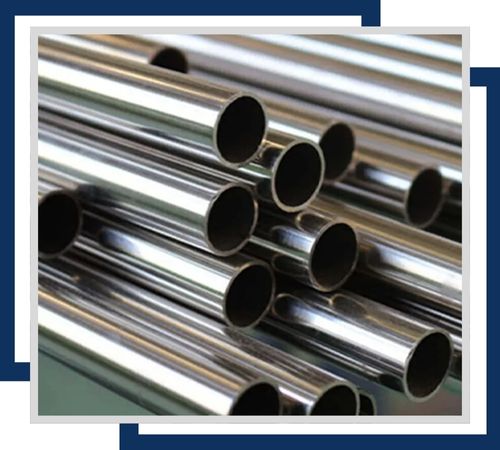

Stainless 317 Square Pipes are square-shaped pipes made from 317 stainless steel, offering superior corrosion resistance, durability, and strength, making them ideal for structural and industrial applications in harsh environments.
SS 317 Seamless Pipes are made from 317 stainless steel without welded seams, providing excellent corrosion resistance, strength, and durability, suitable for industrial applications and environments with high chemical exposure.

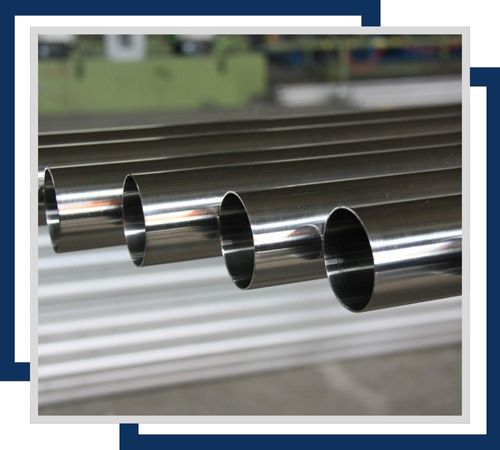

Stainless Steel 317 ERW Pipes are electric resistance welded pipes made from 317 stainless steel, offering high corrosion resistance, strength, and durability, ideal for industrial applications and environments exposed to harsh conditions.
SS 317 LSAW pipe is longitudinally submerged arc welded pipes made of 317 stainless steel, which provide excellent corrosion resistance, high strength and durability for high pressure applications

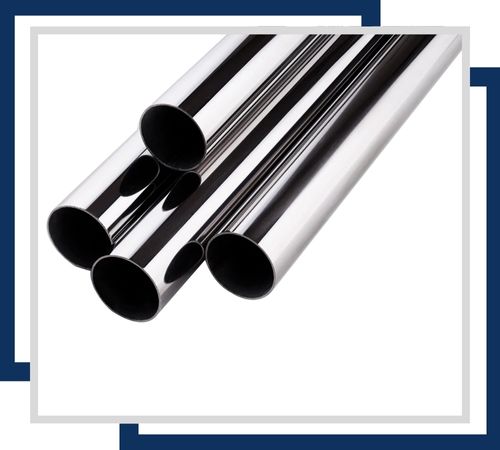

Stainless Steel 317 Round Pipes are cylindrical pipes made from 317 stainless steel, offering excellent corrosion resistance, durability, and strength, ideal for use in industrial applications and harsh environments.

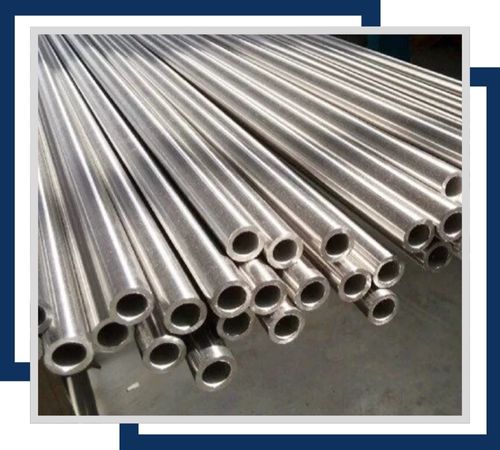

Stainless Steel 317 Welded Pipes are pipes made from 317 stainless steel and joined by welding, providing excellent corrosion resistance, strength, and durability for various industrial and high-heat applications.
Stainless Steel 317 Pipes find extensive use in chemical processing, petrochemical plants, pulp and paper industries, and food and beverage manufacturing. Their strong resistance to chemical attacks and oxidation makes them ideal for equipment that handles acidic or chloride-rich solutions. They are also utilized in marine environments, flue gas desulfurization systems, and textile processing equipment. These pipes ensure long-lasting performance with minimal maintenance, making them a cost-effective choice for systems that require strength, reliability, and corrosion resistance in both high and ambient temperature applications.
