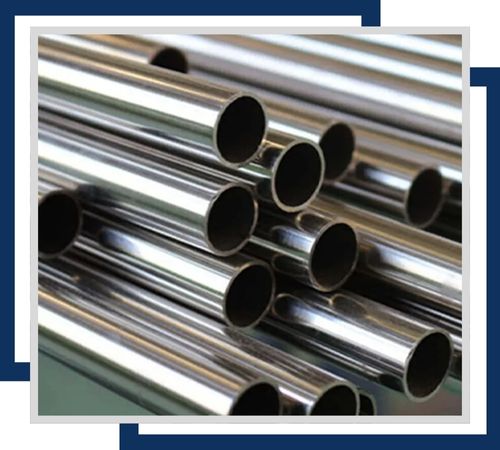

Introducing Andre Stainless, a trusted name in Singapore’s manufacturing scene, specializing in Stainless Steel 416 Pipes. These precision-engineered piping solutions are perfect for both machining-intensive tasks and structural applications. SS 416 is a free-machining martensitic stainless steel, celebrated for its superb machinability, decent corrosion resistance, and impressive strength after heat treatment. Andre Stainless offers both seamless and welded 416 pipes in various sizes, wall thicknesses, and finishes, all crafted to meet ASTM A312 and other international standards. With a commitment to quality, performance, and customer satisfaction, they cater to industries like automotive, manufacturing, power generation, and general engineering.
When it comes to composition and mechanical properties, Stainless Steel 416 Pipes are made up of 11.5–13.5% chromium, with a maximum of 0.15% sulfur added to boost machinability. They also include small amounts of manganese, phosphorus, and silicon. SS 416 boasts a tensile strength ranging from 550 to 760 MPa and a yield strength of about 275 MPa, achieving Rockwell hardness levels of up to C35 after heat treatment. These pipes are magnetic and stand out for their excellent machinability compared to other stainless steels, although they do have lower corrosion resistance than austenitic grades. SS 416 can be hardened through heat treatment, maintaining its strength and dimensional stability even under moderate thermal and mechanical stress.
| Material | Stainless Steel 416 |
| Size Tolerances | h10 and h11 |
| Heat Treatment | Annealed, Solution Annealed |
| Size range | 12 mm – 46 mm (1/2 inch- 1 ¾ inch) |
| Chamfering | Available in 30°, 45° & 60° through fully automatic, both-end chamfering machine |
| Flat Bar Size Range | Thickness: 2 -100mm / Width: 10 to 500mm |
| Crack Test | Magnetic Particle Inspection (MPI) |
| Length | 2 meters to 7.5 meters ( 8 feet to 24 feet), or Custom Length as per Requirement |
| Tolerance | H8, H10, H9, H11, H12, K10, H13K9, K12 K11 or as per clients’ requirements |
| Surface Finish | Cold (bright) drawn, hot rolled, centreless ground, peeled, Rough Turned, hot rolled annealed, smooth turned, Bright, slit rolled edge, Polish, Grinding, Centreless Ground & Black |
| Available Forms | Threaded, Profiles, Rings, Round Rod, Rod, Channel, Rectangle, Precision Ground, Blocks, Round, Triangle, Hollow, Half Round, Ingot, Square, Hex (A/F), Rectangle, Billet, Forging etc. |
| Manufacturing Technique | Hot Rolled, Cold Drawn, Cold Rolled, Forged |
| Grade | C | Ni | Si | S | Cr | Mn | Mo | P | Fe |
| SS 416 | 0.15 max | – | 1.0 max | 0.15 min | 14.00 – 12.00 | 1.25 max | 0.6 | 0.06 max | – |
| Density | Yield Strength (0.2%Offset) | Melting Point | Tensile Strength | Elongation |
| 8.0 g/cm3 | Psi – 30000 , MPa – 205 | 1454 °C (2650 °F) | Psi – 75000 , MPa – 515 | 35 % |
Contact us to get a quick quote for your requirement.
We provides the finest Stainless Steel 416 Pipes, stringently tested for durability, strength, and precision. Each pipe undergoes dimensional, mechanical, and corrosion resistance checks for better performance. The products are certified to the highest standards of leading industry standards.

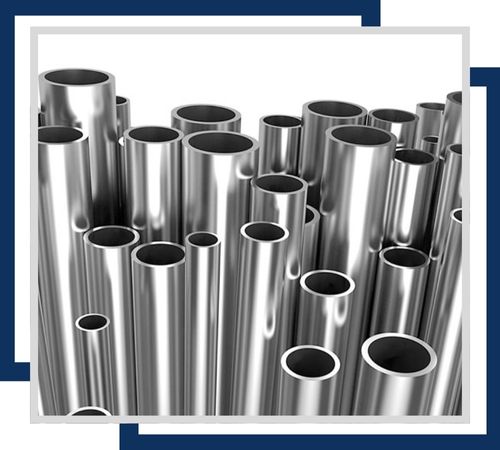

Stainless Steel 416 Seamless Pipe is a high-temperature alloy with excellent oxidation resistance, offering superior strength and durability in harsh environments. Ideal for aerospace and industrial applications

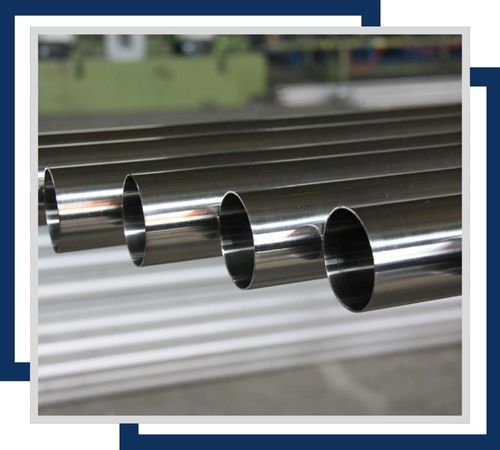

Stainless Steel 416 Welded Pipe provides excellent oxidation and corrosion resistance, suitable for high-temperature applications. Its welded construction offers cost efficiency and structural integrity in various industrial and aerospace uses.

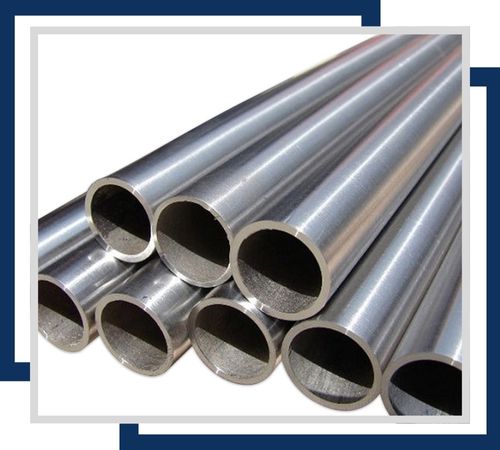

Stainless Steel 416 ERW Pipe combines high-temperature resistance with exceptional durability. Its Electric Resistance Welded (ERW) construction ensures reliable performance in demanding environments, ideal for industrial and high-heat applications.
Stainless Steel TP 416 Seamless Pipes offer superior heat resistance and corrosion protection, ideal for high-temperature applications. Their seamless design ensures durability and reliability in industrial and aerospace environments.
Stainless Steel 416 Round Pipe features excellent heat resistance and corrosion resistance. Its round shape ensures versatility and strength, making it suitable for high-temperature industrial applications and structural uses.

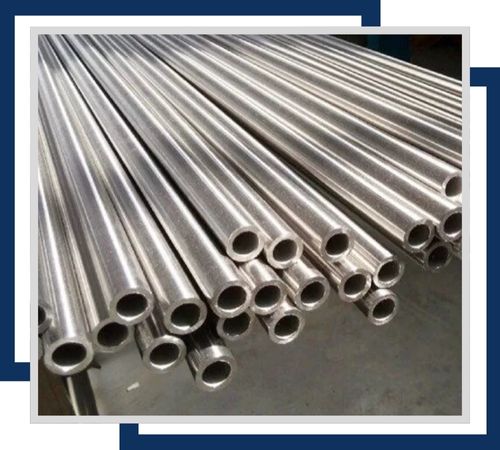

Stainless Steel 416 EFW Pipe provides robust heat and corrosion resistance with Electric Fusion Welded construction. Ideal for high-temperature and industrial applications, it ensures durability and structural integrity.
Stainless Steel 416 Pipes find their place in a variety of applications where great machinability and moderate corrosion resistance are essential. They’re commonly used for shafts, bushings, motor parts, valve components, machine frames, and hydraulic lines. These pipes are ideal for environments that may encounter mildly corrosive substances, such as food processing equipment, manufacturing machinery, and power generation systems. SS 416 is also a go-to choice for screw machine applications and parts that require precise, repetitive machining.
