Introducing Andre Stainless, a top-notch manufacturer and supplier of Stainless Steel 409 Pipes right here in Singapore, Pulau Ujong. We specialize in providing durable and budget-friendly piping solutions for both automotive and industrial needs. SS 409 is a ferritic stainless steel celebrated for its outstanding oxidation resistance, particularly in high-temperature settings like exhaust systems. At Andre Stainless, we offer both seamless and welded 409 pipes in a variety of sizes and wall thicknesses, all crafted to meet ASTM A312 and other international standards. These pipes are designed to perform reliably in moderately corrosive and thermal environments, making them perfect for automotive exhausts, HVAC systems, and components in industrial furnaces.
When it comes to composition and mechanical properties, Stainless Steel 409 Pipes generally contain 10.5–11.75% chromium, with a low carbon content (≤0.08%) and a touch of titanium to help stabilize the microstructure. This alloy boasts moderate tensile strength ranging from 450–600 MPa and a yield strength close to 275 MPa. SS 409 is magnetic and provides excellent resistance to oxidation and scaling at temperatures reaching up to 900°C. While it may not resist corrosion as well as austenitic grades, it shines in mildly corrosive and high-temperature environments, especially where thermal stability and cost-effectiveness are key.
| Item | Stainless Steel 409 Pipe |
| Standard | GB, AISI, ASTM, ASME, EN, BS, DIN, JIS |
| Type | Seamless / ERW / Welded / Fabricated / CDW |
| Outer Diameter Size | SEAMLESS – 1/2″ NB TO 18″ NB WELDED / ERW- 1″ NB TO 16″ NB EFW – 8″ NB TO 110″ NB |
| Form | Round Pipes, Square Pipes, Rectangular Pipe, “U” Shape Pipes, Hydraulic Pipes |
| Wall Thickness | Schedule 10 To Schedule 160 (3 mm to 100 mm Thickness) |
| Length | 01 Meter to 12.5 Meters, Single Random Length, Double Random Length And Customize Size End: Plain End, Beveled End, Treaded |
| Delivery Conditions | As Rolled, Formed, Stress Relieved, Annealed, Hardened, Tempered, Cold Draw |
| Coating | Electropolish, Mechanical Polish, Satin Finish, Passivated |
| Testing | Product Analysis, Transverse Tension Test, Flattening Test, Etching Test, Radiographic Examination, Stabilizing Heat Treatment, Intergranular Corrosion Test, Weld Decay Test, Magnetic Particle Detection, Grain Size Test, NACE 0175, Dual Grade, PWHT (POST WELD HEAT TREATMENT), Flare Test, Bend Test, Hardness Test, Tensile Test etc |
| Dimension | All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM and ASME |
| Value Added Services | Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Heat Treatment |
| Packaging | Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
| Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC |
| Grade | C | Mn | Si | P | S | Cr | MO | Ni | CU | |
| 409 | Min | – | – | – | – | – | 10.5 | – | – | – |
| max | 0.03 | 1.00 | 1.00 | 0.04 | 0.02 | 11.7 | – | 0.5 | – |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) | Brinell (HB) | ||||
| 409 | 380 | 170 | 20 | 88 | 0.5t |
Contact us to get a quick quote for your requirement.
We tests all kinds of stainless steel 409 piping with high emphasis on quality and performance. In addition, international standards such as ASTM and ASME are in place for any product. Even each batch in terms of machinery quality, dimensional accuracy, or corrosion resistance guarantees that the resultant pipes are going to be available with reliable output.

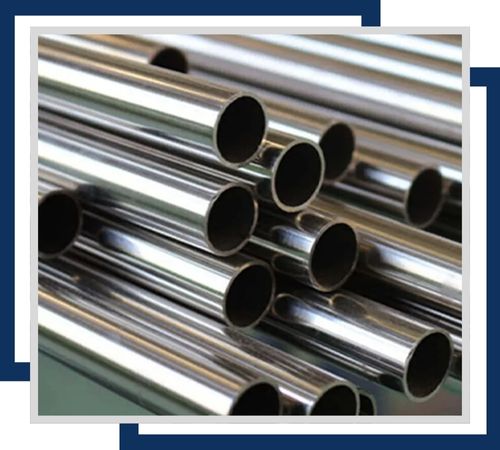

Stainless Steel 409 is a ferritic alloy known for its high resistance to oxidation and corrosion. Commonly used in automotive exhaust systems and industrial applications, it offers good strength and durability.

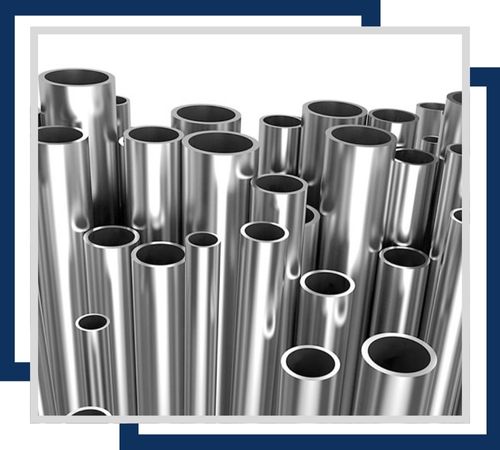

Stainless Steel 409 seamless pipe features high resistance to oxidation and corrosion, making it ideal for exhaust systems and industrial applications. Its seamless construction provides superior strength and reliability.

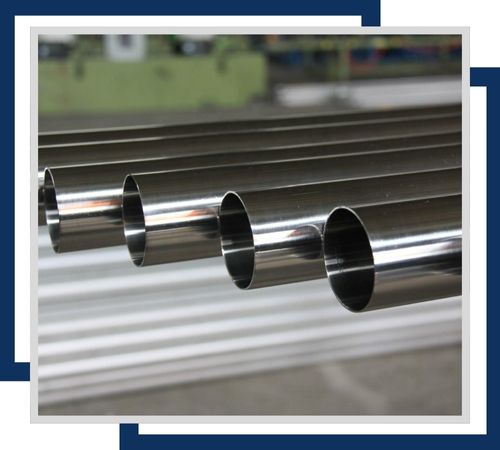

Stainless Steel 409 welded pipe combines high oxidation and corrosion resistance with durability. It’s commonly used in automotive exhaust systems and industrial applications, offering strength through its welded construction.
Stainless Steel 409 ERW (Electric Resistance Welded) pipe offers excellent resistance to corrosion and oxidation. It’s used in automotive and industrial applications, featuring strong welds and good mechanical properties.
Stainless Steel 409 EFW (Electric Fusion Welded) pipe provides excellent corrosion and oxidation resistance. Ideal for automotive and industrial uses, it features strong, uniform welds and high durability.

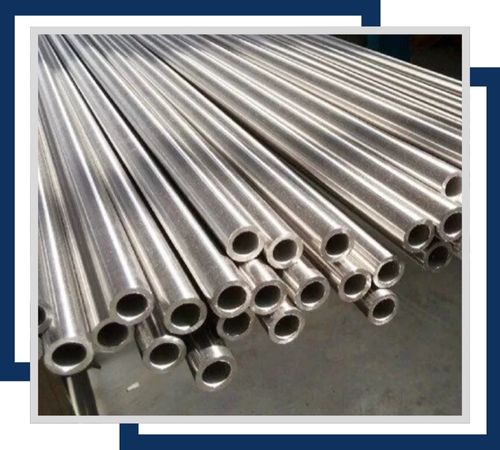

Stainless Steel 409 fabricated pipe is engineered for strength and durability, offering excellent resistance to oxidation and corrosion. It’s commonly used in customized applications, including exhaust systems and industrial components.
Andre Stainless is a leading supplier, and stockist of high-quality Stainless Steel 409 Pipes in Pulau ujong, Singapore. Our products are widely used in various applications, and we are committed to delivering excellent service, resulting in high customer satisfaction. Our unique finishing techniques further distinguish us in the stainless steel industry. We are dedicated to consistently providing superior products and effectively meeting our customer’s needs.
Stainless Steel 409 Pipes find their way into a variety of applications, including automotive exhaust systems, mufflers, catalytic converters, and heat exchangers, thanks to their impressive resistance to oxidation and thermal degradation. They’re also utilized in HVAC ducting, industrial furnace linings, and petrochemical equipment, where moderate corrosion resistance and high-temperature strength are crucial. SS 409 pipes serve as a cost-effective alternative to higher-grade stainless steels in situations where corrosion is minimal but heat resistance is vital. At Andre Stainless, we customize 409 pipes to meet your specific dimensional and mechanical requirements.
