Home > Forged Fittings > Stainless Steel 304/304LForged Fittings
Andre Stainless, a top-notch manufacturer and supplier located in Singapore, Pulau Ujong, is well-known for providing high-quality Stainless Steel 304/304L Forged Fittings to clients in Dubai, UAE. With a strong dedication to international standards and precision engineering, Andre Stainless offers durable and corrosion-resistant forged fittings that are perfect for high-pressure and high-temperature applications. Their cutting-edge manufacturing processes guarantee consistency, reliability, and outstanding performance across various industrial sectors. With excellent customer service and prompt deliveries, Andre Stainless has earned a reputation as a trusted provider of premium stainless steel solutions for industries ranging from petrochemicals to power generation.
Stainless Steel 304/304L Forged Fittings are primarily made up of chromium (18-20%), nickel (8-12%), and low carbon content, which boosts their corrosion resistance and weldability. These fittings boast impressive mechanical properties, including a tensile strength of around 515 MPa, yield strength of 205 MPa, and an elongation of 40%. Their sturdy structure and resistance to oxidation make them ideal for challenging environments. The 304L variant, which has lower carbon content, reduces carbide precipitation during welding, providing better performance in corrosive settings while maintaining structural integrity under pressure and heat.
Stainless Steel Forged Fittings Specification : ASTM A182 / ASME SA182
Dimension Standard : ASME B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, MSS-SP-97, BS3799
Size : 1/8″ NB to 4″ NB
Type : Socketweld Fittings, Screwed-Threaded Fittings (NPT or PT Type)
Rating Pressure : Threaded End – 2000 /3000/ 6000 LBS. Socket-weld End – 3000 / 6000/ 9000 LBS.
| C | Mn | Si | P | S | Cr | Ni | N | |
|---|---|---|---|---|---|---|---|---|
| 304 | 0.07max | 2.0max | 0.75max | 0.045max | 0.03max | min: 18.0 max: 20.0 | min: 8.0 max: 10.5 | — |
| 304L | 0.03max | 2.0max | 0.75max | 0.045max | 0.03max | min: 18.0 max: 20.0 | min: 8.0 max: 12.0 | 0.10 max |
| Grade | Tensile Strength ksi (min) | Yield Strength 0.2% ksi (min) | Elongation % | Hardness (Brinell) MAX | Hardness (Rockwell B) MAX |
|---|---|---|---|---|---|
| 304 | 75 | 30 | 40 | 201 | 92 |
| 304L | 70 | 25 | 40 | 201 | 92 |
Contact us to get a quick quote for your requirement.
At Andre Stainless, all stainless steel 304/304L forged fittings are rigorously tested to ensure quality and reliability. Our products are certified to meet international standards, including ISO, ASTM and ASME specifications. We also provide material test certificates (MTCs), third-party inspection reports and traceability documents to verify performance and compliance.
These fittings offer excellent corrosion resistance, particularly against oxidation and atmospheric corrosion. Typically available in sizes ranging from ¼ inch to 4 inches, they are designed for high-pressure applications and are widely used in piping systems for their strength and durability.

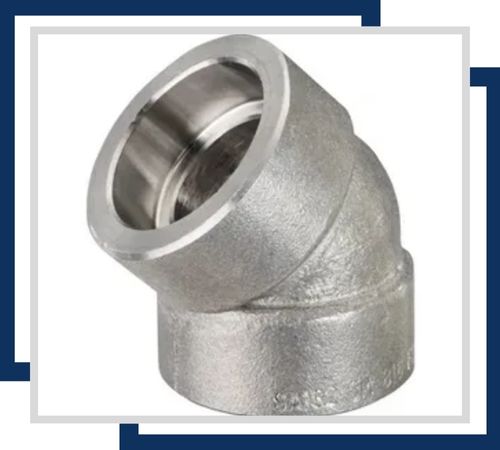

Offering excellent corrosion resistance, this 45-degree elbow is designed to redirect flow in a piping system. Available in sizes from ¼ inch to 4 inches, it is suitable for high-pressure and high-temperature applications, ensuring reliable and leak-proof connections.
Highly resistant to corrosion, this elbow facilitates changes in direction with a 45-degree bend. Standard sizes range from ½” to 4″ in diameter. It redirects its flow in pipelines, especially in chemical and petrochemical industries.

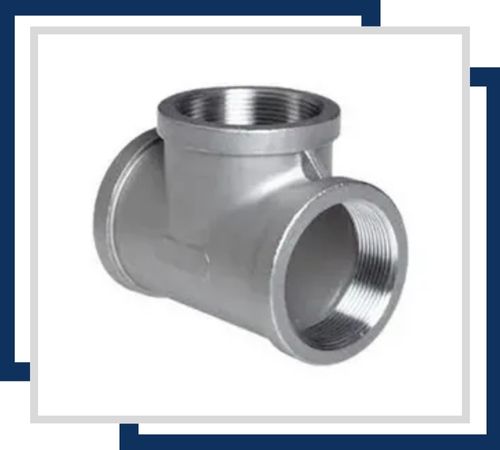

With robust corrosion resistance, this tee fitting branches off a pipeline. Available in sizes from ¼ inch to 4 inches, it allows flow distribution in three directions, making it versatile for various industrial applications.

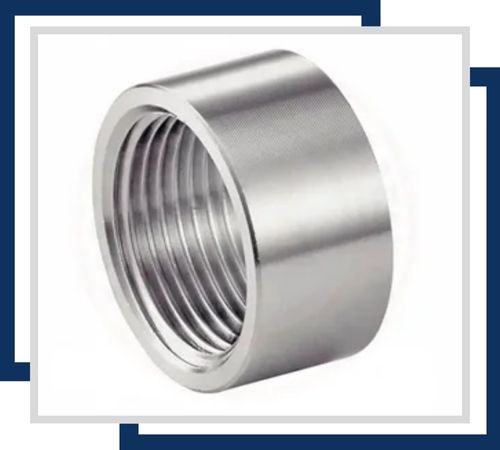

Providing strong corrosion resistance, this half coupling connects two pieces of pipe. Sizes range from ¼ inch to 4 inches, and it is ideal for applications requiring a reliable and secure connection in both industrial and residential settings.

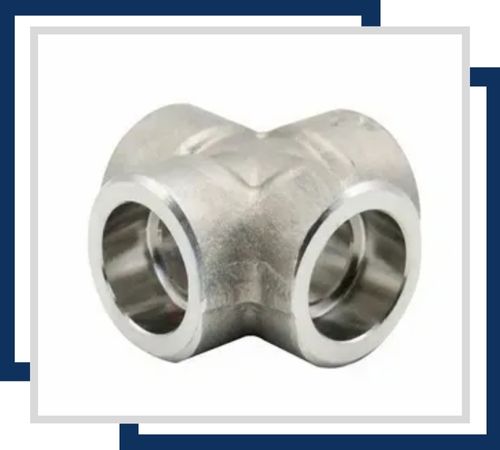

Featuring excellent corrosion resistance, this cross-fitting allows for connecting four pipes. It is available in sizes from ¼ inch to 4 inches and is commonly used in complex piping systems requiring multiple branches.
Stainless Steel 304/304L Forged Fittings are widely utilized across various industries due to their remarkable durability and corrosion resistance. Common applications include chemical and petrochemical processing, oil and gas refineries, power plants, food processing, water treatment facilities, and pharmaceutical manufacturing. These fittings are perfect for pipelines, flow systems, and pressure vessels where strength and leak-proof connections are crucial. Their low maintenance needs, superior hygiene properties, and ability to endure high temperatures make them the go-to choice for both aggressive and sterile operational environments.
