Andre Stainless stands out as a top manufacturer and supplier of Stainless Steel 316Ti Forged Fittings in Pulau Ujong, Singapore. They’re well-known for delivering high-quality, heat-resistant components that meet the demands of various industrial applications. With a focus on titanium-stabilized stainless steel, Andre Stainless provides precision-forged fittings that excel in corrosion resistance, durability, and performance, especially in high-temperature settings. The company caters to industries like chemical processing, marine, power generation, and oil & gas, earning a reputation for sticking to international standards, offering competitive prices, and ensuring timely deliveries. It’s no wonder that Andre Stainless has become a trusted name in Singapore for reliable Stainless Steel 316Ti Forged Fittings.
Stainless Steel 316Ti Forged Fittings are the titanium-stabilized versions of SS 316, primarily made up of chromium, nickel, molybdenum, and a touch of titanium (about 0.5%). The addition of titanium boosts resistance to intergranular corrosion while keeping excellent mechanical properties intact. These fittings are known for their high tensile and yield strength, outstanding creep resistance, and stability even at elevated temperatures. SS 316Ti meets ASTM A182 standards, making it perfect for environments that face continuous or repeated exposure to high heat and corrosive chemicals.
Specifications ASTM A182 & ASME SA182
Standard ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size 1/8” NB to 4” NB (Socketweld & Screwed-Threaded)
Class 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Type Socketweld Fittings, Screwed-Threaded Fittings
Forged Fittings Items 45 Deg Elbow, 90 Deg Elbow, Forged Tee, Union, Full Coupling, Half Coupling, Cross, Cap, Swage Nipple, Plug, Bush, Welding Boss, Hexagonal Nipple etc.
Type Socketweld Fittings, Screwed-Threaded Fittings
Grade 316TI UNS (S31635), DIN (1.4571)
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 316Ti | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.395 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.
We tested and certified Stainless Steel 316Ti Forged Fittings. All the products are inspected, including dimensional checks, material analysis, and strength testing. Every product is certified to international standards, ensuring high performance, durability, and reliability for critical applications in different industries.

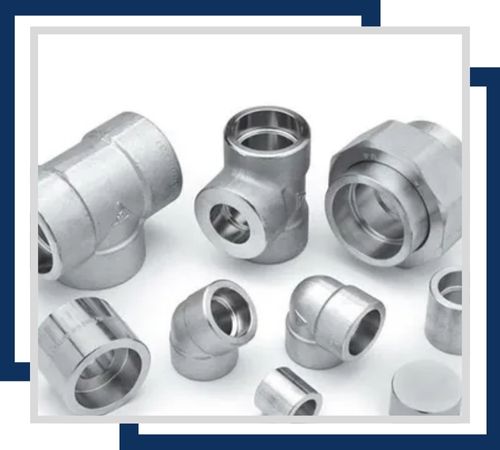

Ideal for high-temperature applications, these fittings offer excellent corrosion resistance and are typically available in sizes ranging from 1/2″ to 4″. They are used in industries like chemical processing and oil refineries.
Known for superior corrosion resistance, especially against sulfuric and phosphoric acids, these fittings come in various sizes from 1/8″ to 4″. They are commonly used in marine and industrial environments.
This elbow fitting allows for a smooth 45-degree change in pipe direction and is available in sizes from 1/2″ to 6″. It provides excellent resistance to corrosion and is used in high-pressure applications.

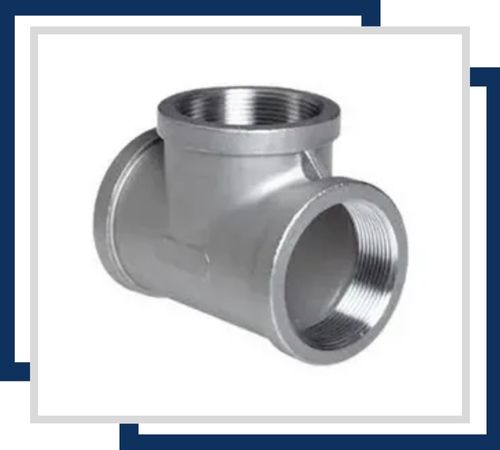

This tee fitting allows for branching out of the main pipe, available in sizes from 1/2″ to 6″. It offers exceptional resistance to corrosion and is used in a variety of piping systems.

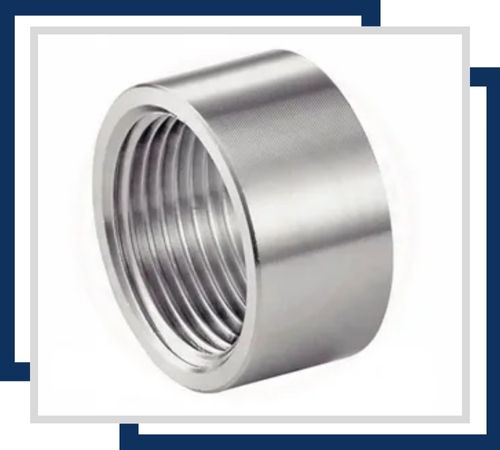

Used to connect two pieces of pipe, this half coupling is available in sizes ranging from 1/4″ to 6″. It is highly resistant to corrosion and suitable for high-temperature environments.

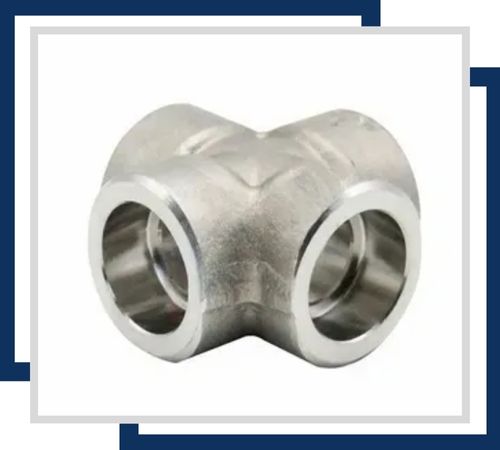

This fitting provides a cross junction, available in sizes from 1/2″ to 4″. It ensures high resistance to corrosion and is used in complex piping arrangements.
You’ll find Stainless Steel 316Ti Forged Fittings widely used in applications that demand top-notch corrosion resistance and thermal stability. They’re often found in heat exchangers, chemical processing equipment, pressure vessels, flue gas scrubbers, and marine components. In sectors like petrochemical, pharmaceutical, and food processing, these fittings consistently perform well in aggressive chemical and high-temperature conditions. Their resistance to sensitization and stress corrosion cracking makes them ideal for long-term use in welded structures and critical piping systems, ensuring safety and durability even in the harshest environments.
