Home > Forged Fittings > Stainless Steel 347/347H Forged Fittings
Andre Stainless stands out as a leading manufacturer and supplier of Stainless Steel 347/347H Forged Fittings in Pulau Ujong, Singapore. They provide reliable, high-quality forged solutions that cater to critical industrial needs. With a focus on heat-resistant and corrosion-resistant components, Andre Stainless crafts precision-engineered SS 347/347H forged fittings specifically designed for industries like petrochemical, oil & gas, power generation, and marine. Their commitment to excellence shines through advanced production techniques and a strict adherence to international standards, ensuring consistent quality, competitive pricing, and timely delivery. This dedication has made them a trusted source for Stainless Steel 347/347H Forged Fittings throughout Singapore.
Stainless Steel 347/347H Forged Fittings are stabilized austenitic stainless steels, primarily made up of chromium and nickel, with columbium (niobium) added to prevent intergranular corrosion. The Grade 347H variant features a higher carbon content, which boosts its strength at elevated temperatures. These fittings boast impressive mechanical properties, including high tensile and yield strength, good creep resistance, and durability under thermal stress. Built to meet standards like ASTM A182, SS 347/347H forged fittings are reliable performers in high-temperature and high-pressure settings.
Stainless Steel Forged Fittings Specification : ASTM A182 / ASME SA182
Dimension Standard : ASME B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, MSS-SP-97, BS3799
Size : 1/8″ NB to 4″ NB
Type : Socketweld Fittings, Screwed-Threaded Fittings (NPT or PT Type)
Rating Pressure : Threaded End – 2000 /3000/ 6000 LBS. Socket-weld End – 3000 / 6000/ 9000 LBS.
| C | Cr | Mn | Ni | P | S | Si | Cb/Ta | |
|---|---|---|---|---|---|---|---|---|
| 347 | 0.08 max | min: 17.0 max: 20.0 | 2.0 max | min: 9.0 max: 13.0 | 0.04 max | 0.30 max | 0.75 max | min:10x C max: 1.0 |
| 347H | min: 0.04 max: 0.10 | min: 17.0 max: 20.0 | 2.0 max | min: 9.0 max: 13.0 | 0.03 max | 0.30 max | 0.75 max | min:10x C max: 1.0 |
| Grade | Tensile Strength ksi (MPa) min | Yield Strength 0.2% ksi offset ksi (MPa) min | Elongation (% in 50mm) min | Hardness (Brinell) MAX | Hardness (Rockwell B) MAX |
|---|---|---|---|---|---|
| 347/347H | 75 (515) | 30 (205) | 40 | 201 | 95 |
Contact us to get a quick quote for your requirement.
At Andre Stainless, all stainless steel 347/347H forged fittings are rigorously tested to ensure unmatched quality and performance. Each product is certified to international standards, including ISO, ASTM and ASME. Comprehensive testing such as fluid stability, ultrasonic and mechanical analysis provides reliability, stability and compliance for various industrial applications.
Highly resistant to intergranular corrosion, these fittings are designed for high-pressure applications. They provide a secure, leak-proof connection in sizes from 1/4″ to 4″ and various pressure ratings.

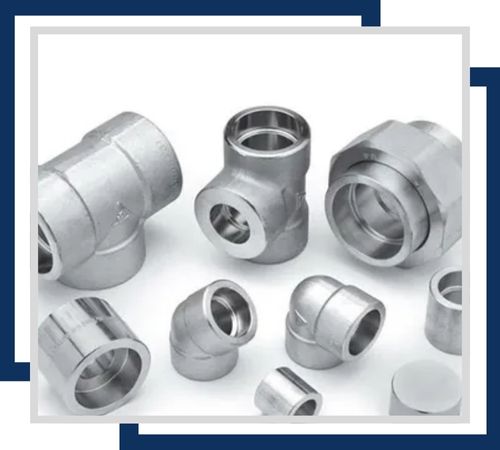

Offering exceptional resistance to oxidation and high-temperature environments, these fittings are available in sizes from 1/8″ to 4″ NPT. They are ideal for applications where high strength and durability are required.
Resistant to both corrosion and high temperatures, this elbow allows for smooth changes in pipe direction at a 45-degree angle. Sizes range from 1/2″ to 4″, accommodating various pipe dimensions.

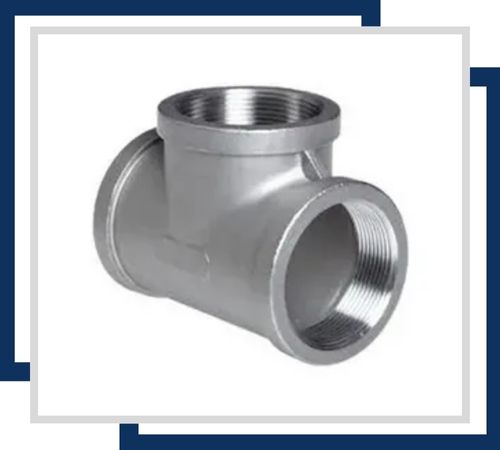

With excellent resistance to corrosion and high temperatures, this tee connects three sections of pipe, allowing for changes in direction. Available in sizes from 1/4″ to 4″ NPT.

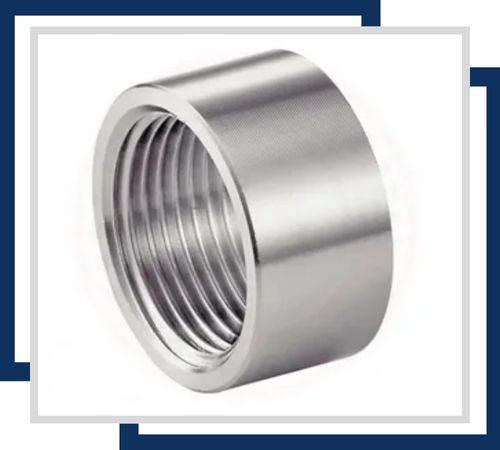

Featuring strong corrosion resistance and suitability for high-temperature use, this coupling connects a pipe to a threaded fitting. Common sizes include 1/4″ to 2″ NPT.

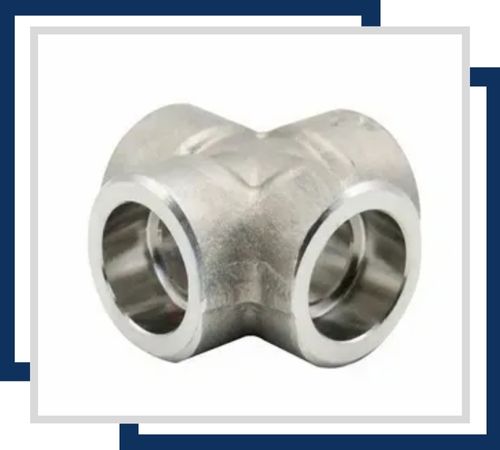

Known for its durability and resistance to corrosive environments, this cross-fitting enables four-way connections between pipes. Available in sizes from 1/2″ to 2″, it ensures robust and reliable performance.
These fittings are commonly used in high-temperature service applications, particularly in sectors such as petrochemical, aerospace, chemical processing, and power generation. They’re perfect for heat exchangers, furnace parts, boiler components, and exhaust manifolds. Their outstanding resistance to oxidation and scaling makes them well-suited for operations that involve thermal cycling and aggressive chemicals. Additionally, these forged fittings are essential in refining units, pressure vessels, and piping systems where mechanical strength and corrosion resistance are crucial for long-term service and safety.
