Andre Stainless is a well-respected manufacturer and supplier located in Singapore, specifically on Pulau Ujong. They’ve built a solid reputation for providing top-notch stainless steel solutions. Focusing on Stainless Steel 310H Forged Fittings, Andre Stainless caters to a diverse clientele in Dubai, UAE, where precision engineering and strict adherence to international standards are paramount. With a strong dedication to quality, reliability, and customer satisfaction, the company offers an extensive range of forged fittings that are designed to excel in extreme conditions. Their expertise, state-of-the-art technology, and efficient logistics have made them a go-to partner in the Gulf region and beyond.
Stainless Steel 310H Forged Fittings are primarily made up of chromium (24-26%), nickel (19-22%), and carbon (0.04–0.10%), which gives them outstanding oxidation resistance and high-temperature strength. These fittings boast a tensile strength of about 515 MPa, a yield strength of 205 MPa, and an elongation of 40%. Their exceptional creep resistance and toughness at elevated temperatures make them perfect for thermal cycling applications. Plus, they offer good weldability and formability, making them versatile for fabrication and ensuring structural integrity in challenging environments.
| Standard | ASTM A182 / ASME SA182 |
| Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| Type | Socketweld Fittings, Screwed-Threaded Fittings |
| Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 310H | 0.04 – 0.10 | 2.0 max | 1.00 max | 0.045 max | 0.030 max | 24.00 – 26.00 | – | 19.00 – 21.00 | 53.885 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.9 g/cm3 | 1402 °C (2555 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 40 % |
Contact us to get a quick quote for your requirement.
We ensures the highest standards for its stainless steel 310H lattice fittings through stringent testing and certification programs. Extensive testing of each component is carried out, including dimensional testing, mechanical testing and corrosion resistance evaluation. Certifications such as Mill Test Reports (MTR) and ISO compliance ensure the reliability and performance of each fitting.

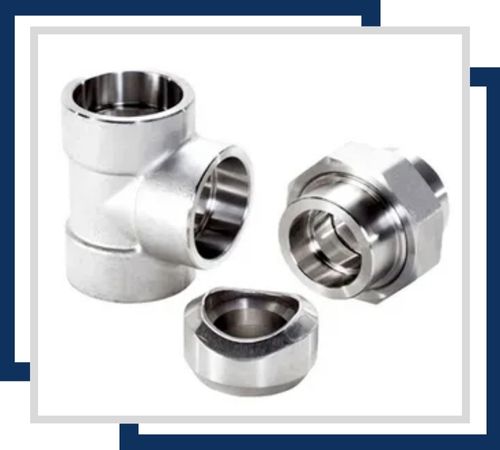

Corrosion-resistant and designed for high-temperature applications, these fittings are ideal for joining pipes. Sizes typically range from 1/4 inch to 4 inches. Dimensions vary based on pipe size, with standard schedules available.
Offering excellent corrosion resistance, these fittings are used where welding is impractical. Common sizes range from 1/8 inch to 2 inches. They are available in various threads per inch, adhering to ANSI standards.
This elbow provides high resistance to oxidation and corrosion at elevated temperatures. Available in sizes from 1/2 inch to 4 inches, it helps in redirecting flow at a 45-degree angle. Dimensions conform to ANSI/ASME standards.

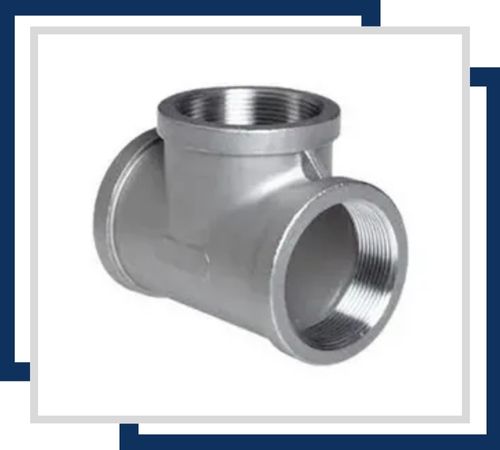

Corrosion-resistant and durable, the threaded tee connects three pipes. Sizes generally range from 1/4 inch to 4 inches, with dimensions following standard pipe thread specifications for ease of connection.

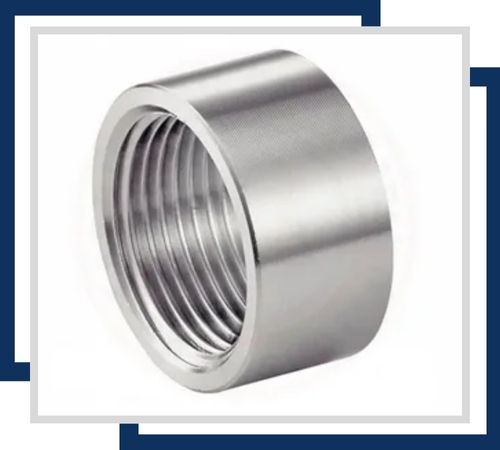

Offering superior resistance to high temperatures and corrosion, this coupling is used for pipe connections. Sizes typically range from 1/4 inch to 2 inches. It features internal threads that match standard pipe sizes.

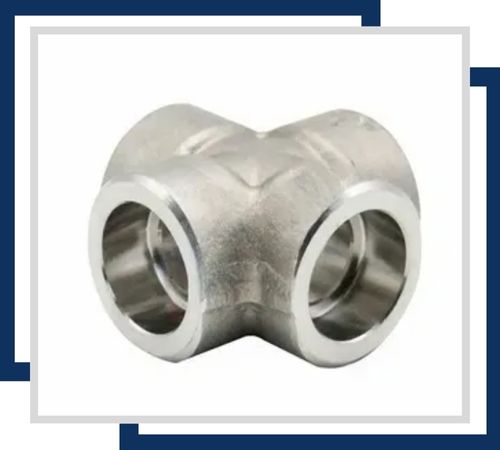

With excellent corrosion resistance, the socket weld cross allows for the connection of four pipes at a single junction. Common sizes range from 1/2 inch to 2 inches, with dimensions based on standard pipe specifications.
These fittings find widespread use in industries that demand high heat resistance and durability. You’ll often see them in petrochemical plants, power generation facilities, heat exchangers, and furnace components. In Dubai and throughout the UAE, Stainless Steel 310H Forged Fittings are frequently utilized in the oil and gas sectors, chemical processing units, and thermal power stations, thanks to their ability to endure high pressure and temperature. Their corrosion resistance in both oxidizing and carburizing environments makes them a reliable choice for structural and fluid-handling systems, ensuring safety, longevity, and performance in critical operations.
