Andre Stainless stands out as a premier manufacturer and supplier located in Singapore, Pulau Ujong, renowned for providing top-notch Stainless Steel 304H Forged Fittings to clients in Dubai, UAE. With a keen emphasis on precision engineering and high-quality raw materials, Andre Stainless delivers forged fittings that shine in performance and reliability, especially in high-temperature settings. Their products are widely respected in various industrial sectors, thanks to their unwavering commitment to international standards and a customer-centric approach. Over the years, Andre Stainless has built a solid reputation for consistency, quick delivery, and technical know-how, making them a trusted partner for stainless steel needs throughout the Middle East and beyond.
Stainless Steel 304H Forged Fittings are primarily made up of chromium (18–20%), nickel (8–11%), and carbon (0.04–0.10%), which boosts their strength and high-temperature resistance. These fittings showcase impressive tensile strength of 515 MPa, yield strength of 205 MPa, and remarkable elongation properties. The higher carbon content enhances their ability to resist creep at elevated temperatures, making them perfect for environments that experience pressure and heat. Additionally, these forged fittings offer good oxidation resistance and maintain structural stability even under high-stress industrial conditions.
| Standard | ASTM A182 / ASME SA182 |
| Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| Type | Socketweld Fittings, Screwed-Threaded Fittings |
| Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 304H | 0.10 max | 2.0 max | 0.75 max | 0.045 max | 0.03 max | 18 – 20 | – | 8 – 10.5 | – |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.
The rigorous testing and certifications of Andre Stainless help ensure that their Stainless Steel 304H Forged Fittings meet the finest quality standards. Every product, whether in raw material analysis or dimensional checks and pressure tests, is carefully tested. With authentications from respected authorities, it adheres strictly to international standards while ensuring reliability and durability and great performance in a critical application.

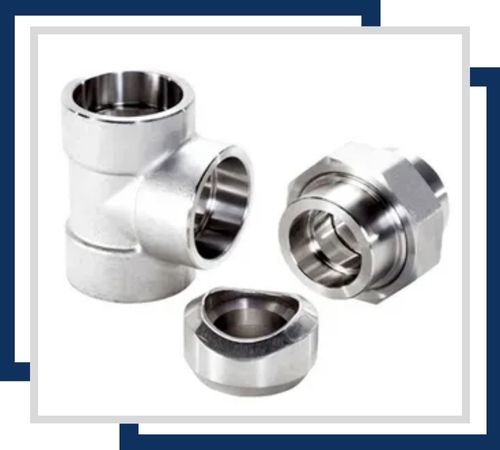

These fittings are available in sizes from 1/8″ to 4″ and offer reliable, leak-free connections in high-pressure systems. They are commonly used in petrochemical, power generation, and oil and gas industries.

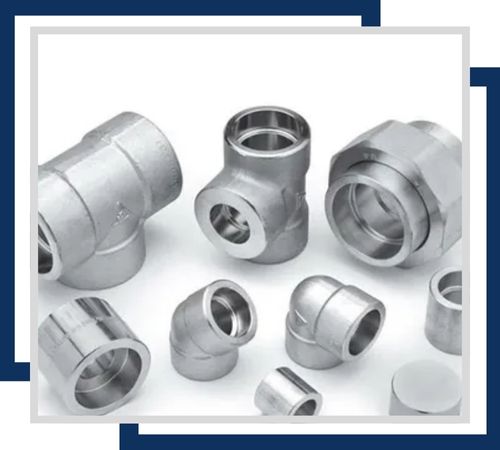

Threaded fittings, ranging from 1/8″ to 4″, provide ease of installation and maintenance. Suitable for low-pressure applications, they are widely used in plumbing, heating, and cooling systems.
These elbows, available in sizes from 1/8″ to 4″, allow for smooth directional flow changes. They are ideal for piping systems requiring high-strength connections and reduced flow resistance.

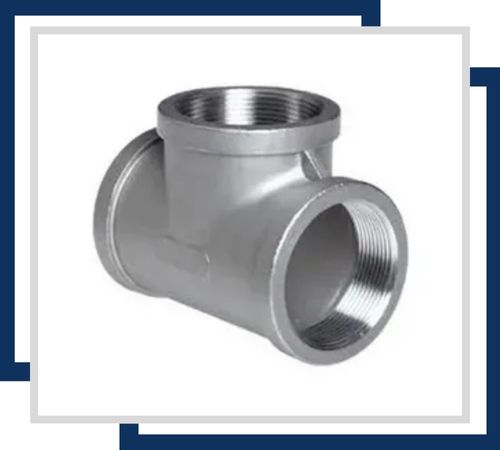

Threaded tees, in sizes ranging from 1/8″ to 4″, branch off the main line in a piping system. They provide reliable performance in various industrial and commercial applications.

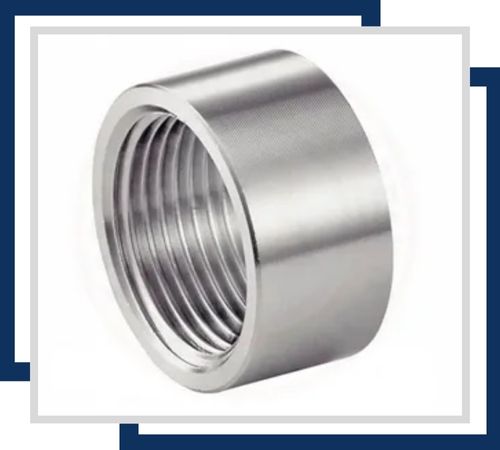

These couplings, available in sizes from 1/8″ to 4″, join two pipes or fittings. They offer easy assembly and disassembly, making them suitable for maintenance and repair work.

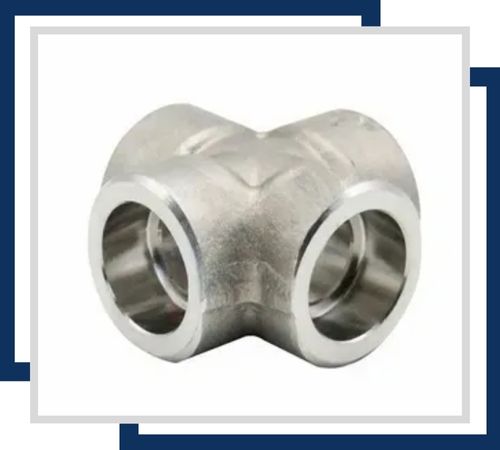

Socket weld crosses, ranging from 1/8″ to 4″, are designed to connect four pipes at a single junction. They are used in high-pressure applications where a strong, leak-proof connection is essential.
Stainless Steel 304H Forged Fittings find their place in applications that demand durability, high-temperature strength, and resistance to corrosion. Industries like oil and gas, petrochemical, power generation, and refineries depend on these fittings for secure piping connections in heat exchangers, boilers, and reactors. Their sturdy design and compatibility with high-pressure and high-temperature systems make them ideal for challenging industrial processes. These forged fittings are also essential in chemical processing units and thermal plants, where long-lasting performance and resistance to scaling and oxidation are crucial for safe and efficient operations.
