Andre Stainless is a top-notch supplier and producer of Stainless Steel 309 Bars in Pulau Ujong, Singapore. They are designed for use in high-temperature applications, and the bars are alloyed for structural strength and oxidation resistance at intense heat. They exhibit a well-balanced composition of strength, corrosion resistance, and heat stability, and 309 bars are highly applicable in heat treatment equipment, furnaces, kilns, and thermal processing units. Andre Stainless provides 309 hot-rolled and cold-drawn bars in round, square, and hex shapes and sizes, and tailored lengths and finishing treatments to suit individual project and industry requirements.
Stainless Steel 309 has approximately 22–24% chromium and 12–15% nickel content, providing optimal oxidation resistance to 1000–1100°C. Mechanical properties are tensile strength of 550–750 MPa and yield strength approximately 300 MPa. It possesses satisfactory ductility and elongation of 40–45%, with Brinell hardness of 160–190 HB. 309 has a superior performance at elevated temperatures compared to 304 and is stable under thermal cycling. It is non-magnetic in the annealed state and weldable using normal procedures. These characteristics make it suitable for high-temperature structural and process items.
| Specifications | ASTM A276, ASTM A479 |
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| SS 309 Round Bars | Outside Diameter in the range of 4mm to 500mm |
| SS 309 Bright Bars | Outside Diameter in the range of 4mm to 100mm |
| SS 309 Hex Bars | 18mm – 57mm (11/16″ to 2-3/4″) |
| SS 309 Square Bars | 18mm – 47mm (11/16″ to 1-3/4″) |
| SS 309 Flat Bars | 1/2” to 10” in thickness range of 2mm to 150mm, Custom Size Stainless Steel Flats available |
| Finish | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| Length | 1 to 6 Meters, Custom Cut Lengths |
| Form | Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc. |
Element | Content (%) |
Iron, Fe | 60 |
Chromium, Cr | 23 |
Nickel, Ni | 14 |
Manganese, Mn | 2 |
Silicon, Si | 1 |
Carbon, C | 0.20 |
Phosphorous, P | 0.045 |
Sulfur, S | 0.030 |
Properties | Metric | Imperial |
Tensile strength | 620 MPa | 89900 psi |
Yield strength (@ strain 0.200%) | 310 MPa | 45000 psi |
Izod impact | 120 – 165 J | 88.5 – 122 ft-lb |
Shear modulus (typical for steel) | 77 GPa | 11200 ksi |
Elastic modulus | 200 GPa | 29008 ksi |
Poisson’s ratio | 0.27-0.30 | 0.27-0.30 |
Elongation at break (in 50 mm) | 45% | 45% |
Hardness, Brinell | 147 | 147 |
Hardness, Rockwell B | 85 | 85 |
Hardness, Vickers (converted from Rockwell B hardness) | 169 | 169 |
Contact us to get a quick quote for your requirement.
We carries out rigorous performance tests on complete batches of Stainless Steel 309 Bars with regards to chemical composition, mechanical properties, and the degree of corrosion resistance. Our products are certified by recognized authorities regarding conformity to international standards for ensuring reliability and consistency with every delivery.

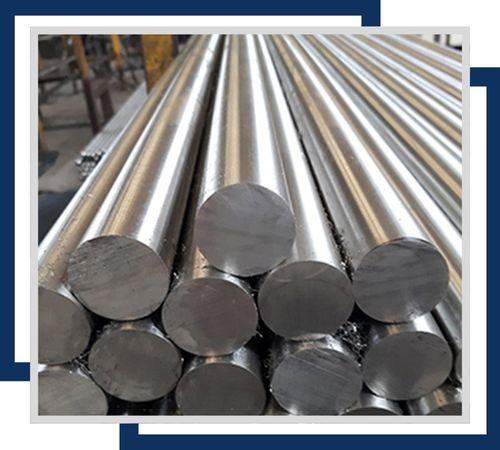

Stainless Steel 309 Round Bars offer excellent corrosion resistance and are available in diameters ranging from 6 mm to 200 mm. Ideal for high-temperature applications and structural uses, they ensure durability and strength.

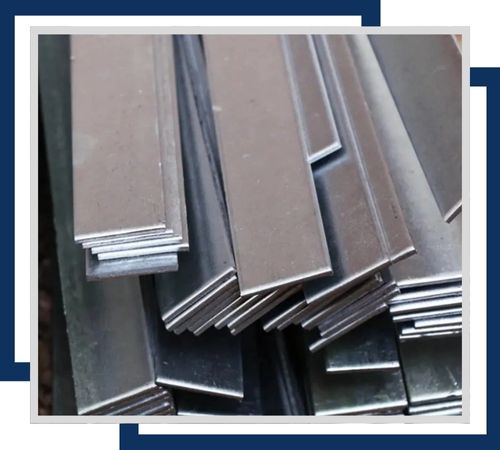

Featuring good corrosion resistance, Stainless Steel 309 Flat Bars come in widths from 20 mm to 150 mm and thicknesses from 5 mm to 50 mm. These bars are used in construction, manufacturing, and industrial applications for their thermal stability.

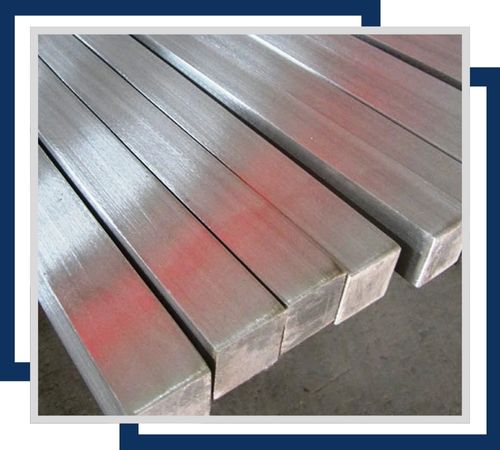

Known for their corrosion resistance, Stainless Steel 309 Square Bars are available in sizes from 10 mm to 100 mm. They are utilized in various structural and industrial applications where strength and heat resistance are required.

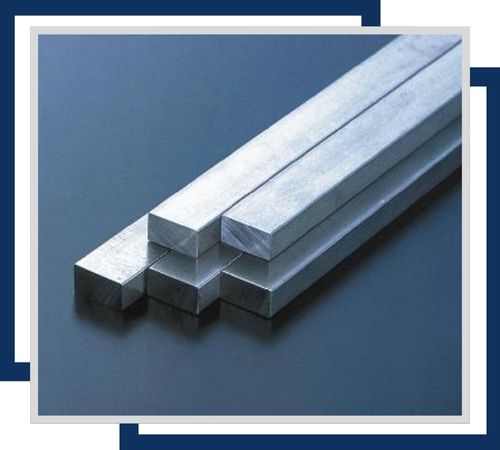

Stainless Steel 309 Rectangular Bars provide corrosion resistance and are offered in dimensions like 20 mm x 10 mm to 150 mm x 50 mm. These bars are suitable for use in high-temperature environments and structural applications.

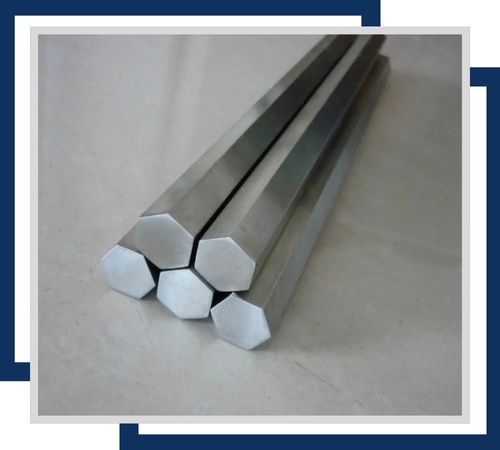

Offering corrosion resistance, Stainless Steel 309 Hexagonal Bars are available in sizes ranging from 6 mm to 50 mm across flats. They are often used in machining, fabrication, and for applications requiring heat resistance.

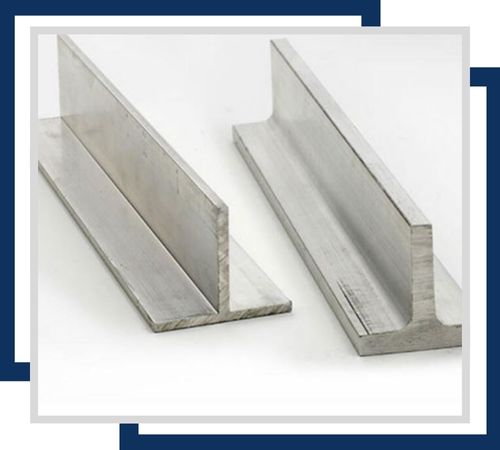

Stainless Steel 309 T-Bars are known for their high-temperature resistance and oxidation resistance. Available in sizes ranging from 15 mm x 15 mm x 6 mm to 100 mm x 100 mm x 12 mm, they are used in industrial applications such as heat exchangers and furnace components, providing durability and strength in extreme conditions.
Stainless Steel 309 bars are suitable for high-heat applications like furnace components, heat exchangers, kiln linings, and radiant tubes. Their resistance to oxidation also renders them appropriate for burners, boiler equipment, incinerators, and thermal exhaust systems. They are widely used in metallurgical and petrochemical plants where thermal stress as well as corrosion resistance are the key considerations. They are also used in refinery flare stacks and aerospace heat shields. Andre Stainless offers 309 bars in various finishes for structural and machining use, providing consistent performance where temperature resistance is an important design consideration.
