Andre Stainless, located in Pulau Ujong, Singapore, is a reliable stockist of Stainless Steel 17-7 PH Sheets and Plates, for use in applications requiring outstanding strength, dimensional stability, and formability. Available in a broad range of thicknesses and sizes, our plates and sheets are industrial-level conforming and come in annealed (Condition A) and aged (Condition CH, TH) tempers. With better flatness, surface finish, and machinability, our 17-7 PH stainless steel products are extensively utilized in the aerospace, structural engineering, pressure vessels, and other various high-performance industrial applications.
Stainless Steel 17-7 PH is a precipitation-hardened stainless steel containing about 17% chromium, 7% nickel, and minor amounts of aluminum for improved hardening response. Upon cold working and aging, the alloy develops a tensile strength of 1200 MPa, yield strength of approximately 1100 MPa, and HRC 44–48 hardness. It still possesses good ductility (7–9% elongation) and very good fatigue properties. It exhibits fair corrosion resistance in mild environments but its main benefit is through the strength-to-weight ratio and consistent mechanical performance after forming and aging.
| Element | Content (%) |
|---|---|
| Chromium, Cr | 16-18 |
| Nickel, Ni | 6.50 – 7.75 |
| Manganese, Mn | 1 max |
| Silicon, Si | 1 max |
| Aluminum, Al | 0.75 – 1.50 |
| Carbon, C | 0.09 max |
| Phosphorous, P | 0.040 max |
| Sulfur, S | 0.030 max |
| Iron, Fe | Balance |
| Property | 17-7PH ≤ 0.010 inch thick | 17-7PH > 0.010 inch thick |
|---|---|---|
| Yield Strength, min. (ksi) | 65 | 55 |
| Tensile Strength, min. (ksi) | 150 | 150 |
| Elongation, min. (%) | – | 20 |
| Hardness, max. (Rb) | – | 92 |
Contact us to get a quick quote for your requirement.
Stainless Steel 17-7 PH Hot Rolled Plates are characterized by excellent strength and hardness. Available in a range of sizes and thicknesses from 3mm to 120mm, the plates have good corrosion resistance and can be used under high-stress conditions.

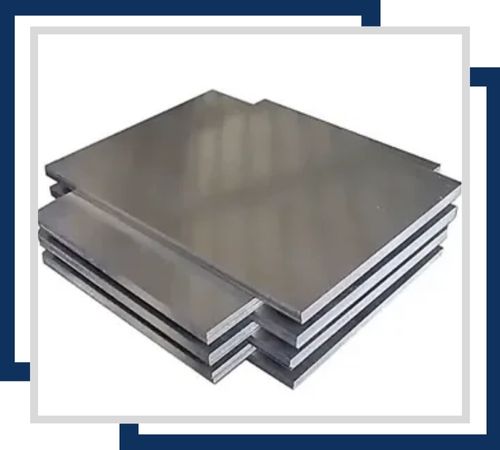

Stainless Steel 17-7 PH Cold Rolled Sheets have a very smooth surface finish and high precision. These sheets are available in a range of thickness from 0.2mm to 6mm. The sheets possess excellent corrosion resistance and are useful for applications that require tight tolerances.

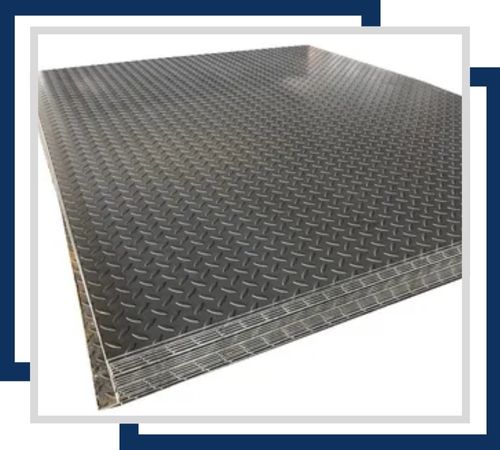

Stainless steel 17-7 PH chequered plates have a raised pattern that increases the grip and safety. It is commercially available from 2mm to 12mm in thicknesses. It is applied in flooring and other anti-skid applications. Their good corrosion resistance suits them well for both industrial and marine environments.

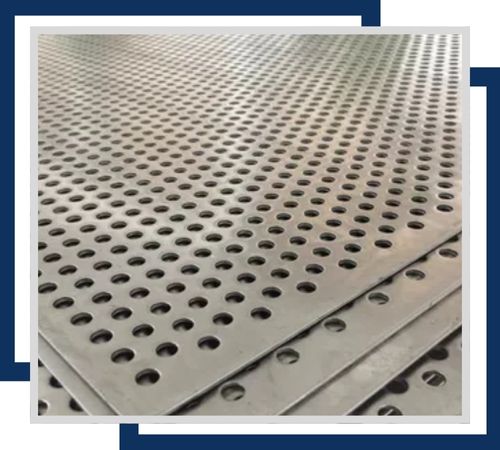

The Stainless Steel 17-7 PH Perforated Sheets have many hole sizes and patterns for various filtration and ventilation applications. They are typically in the thickness of 0.3mm to 3mm. Corrosion resistance allows these sheets to be long-lasting in all uses.

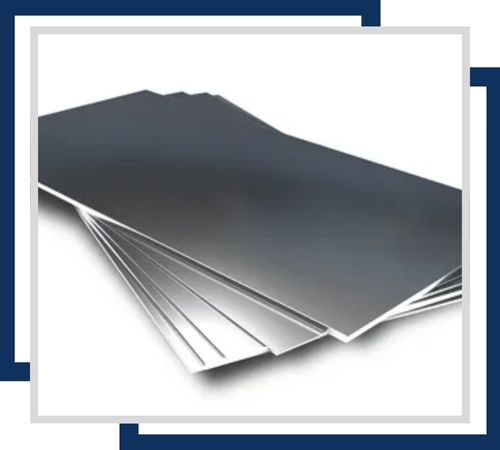

Stainless Steel 17-7 PH Shim Sheet is a thin, precision-cut sheet for spacing and alignment in machinery. It is available in 0.05mm to 3mm thicknesses, giving excellent corrosion resistance. Its sheets ensure reliable performance in very demanding mechanical environments.

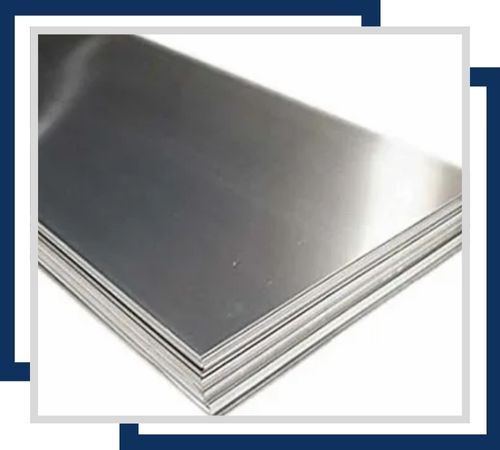

Stainless Steel 17-7 PH Polished Plates have a bright polish finish. They come in thickness from 3mm up to 100mm. These plates exhibit strong corrosion resistance. They are good for decorative and sanitary applications.
Andre Stainless is committed to providing a great customer experience by offering full documentation for its high-quality Stainless Steel 17-7 PH Sheets and Plates. We provide important documents like commercial invoices, packing lists, fumigation certificates, heat treatment charts, quality assurance plans, and NABL-approved lab test reports to prove authenticity and give strength to our superior quality. Moreover, our Stainless Steel 17-7 PH Sheets and Plates are provided with many test certificates like MTC as per EN 10204/3.1b, PMI Test Certificate, 100% radiography test report, and Third Party Inspection Certificate. These records assuredly ensure our customer satisfaction and constant product excellence.
17-7 PH stainless steel plates and sheets are extensively used in high-strength component applications where light–weighted components are needed, such as in aerospace components, spring mechanisms, pressure vessels, and structural brackets. In the marine, chemical, and food processing industries, due to stress corrosion resistance, they prove to be extremely valuable. They are also utilized in power generation and nuclear industries, where they act as trusted structural members under static and dynamic stress. Andre Stainless provides these plates and sheets in specific sizes, thicknesses, and heat treatments, carefully designed to address project-specific performance and fabrication needs.
